01
Powerful Engine & Hydraulic System
A high-torque engine and responsive hydraulic system deliver dependable performance in demanding operating conditions.
Technical Specifications
| System | Specification | Value |
|---|---|---|

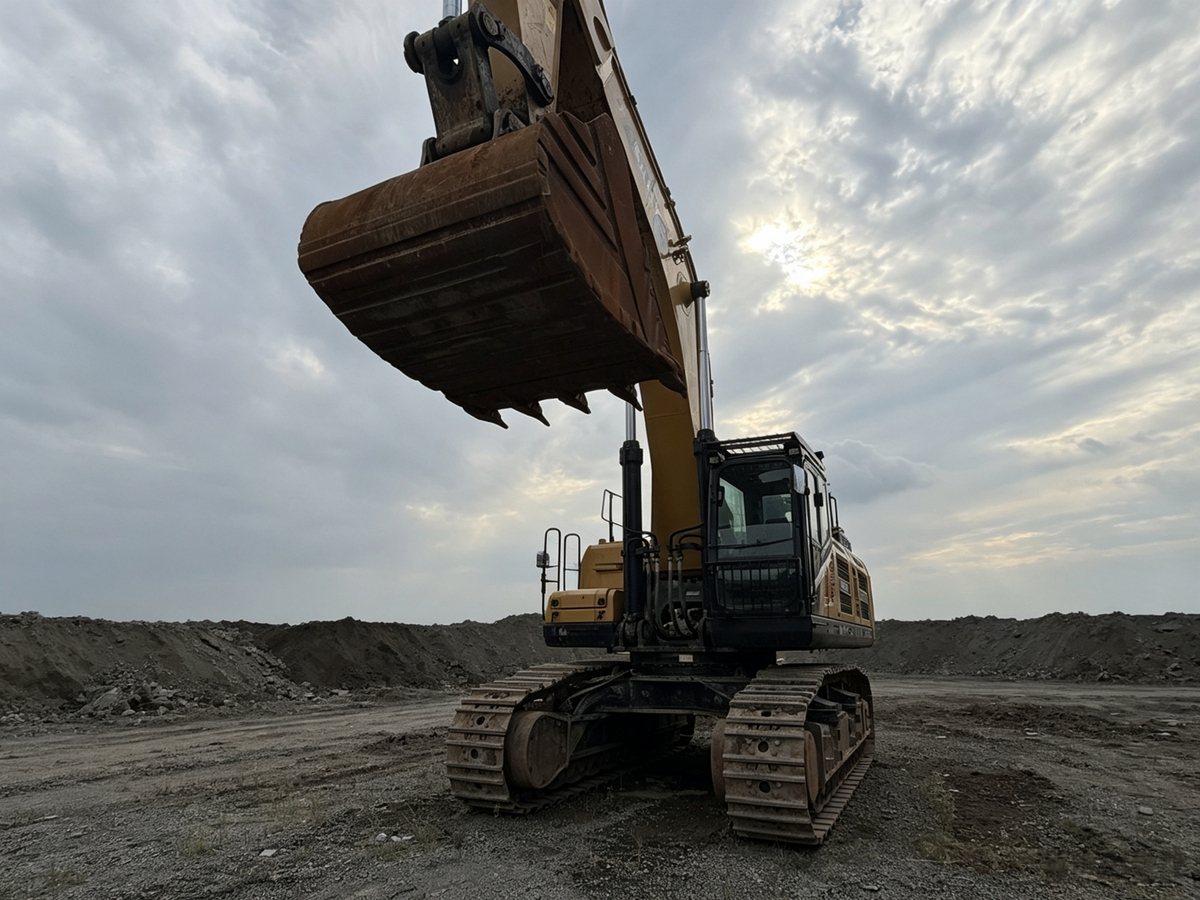

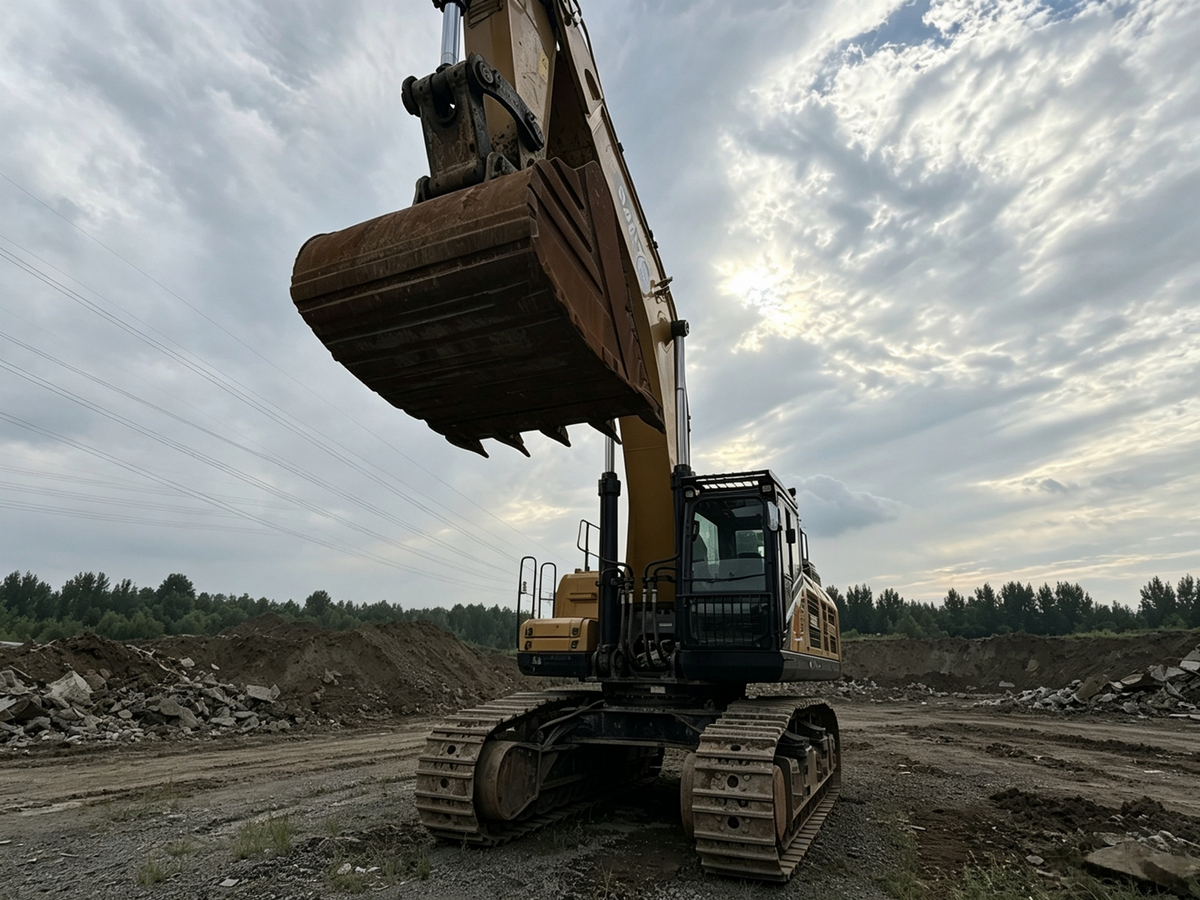

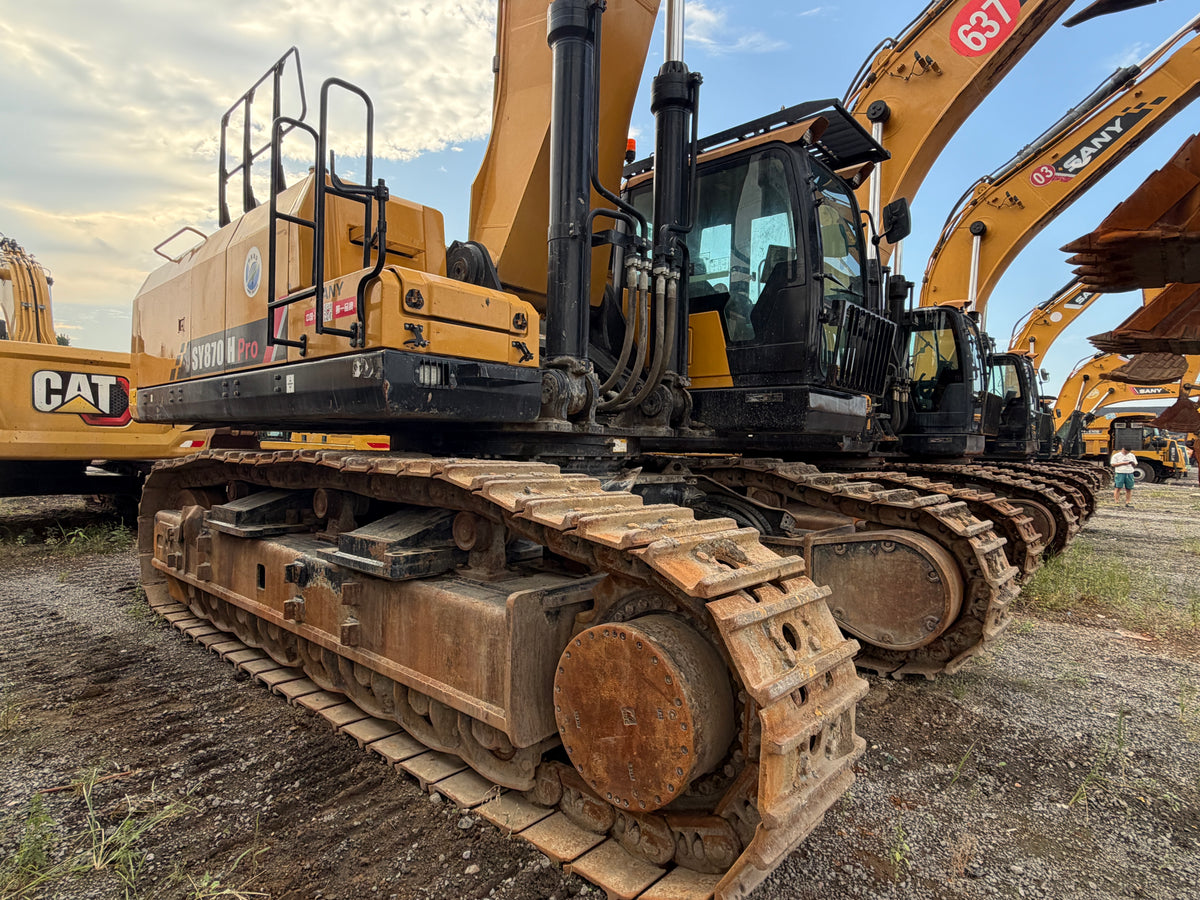

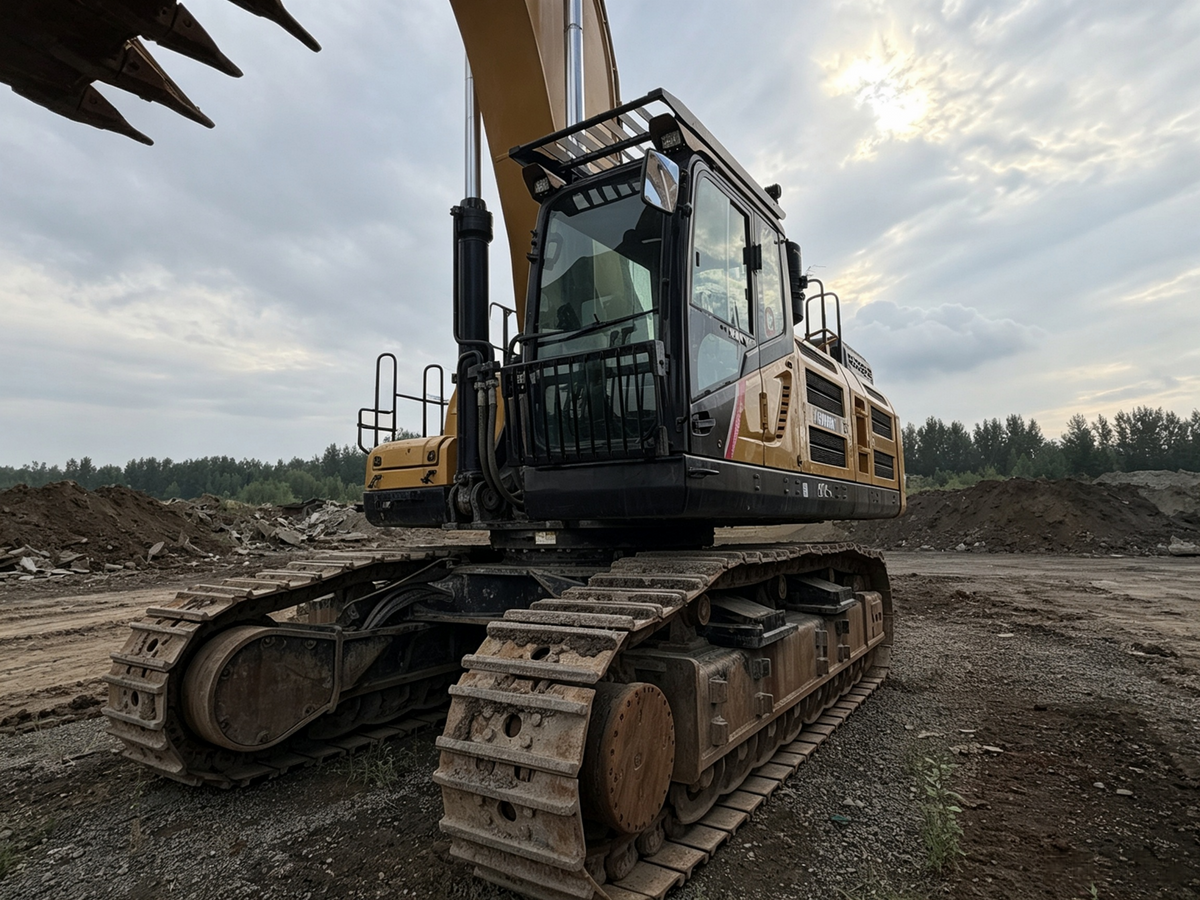

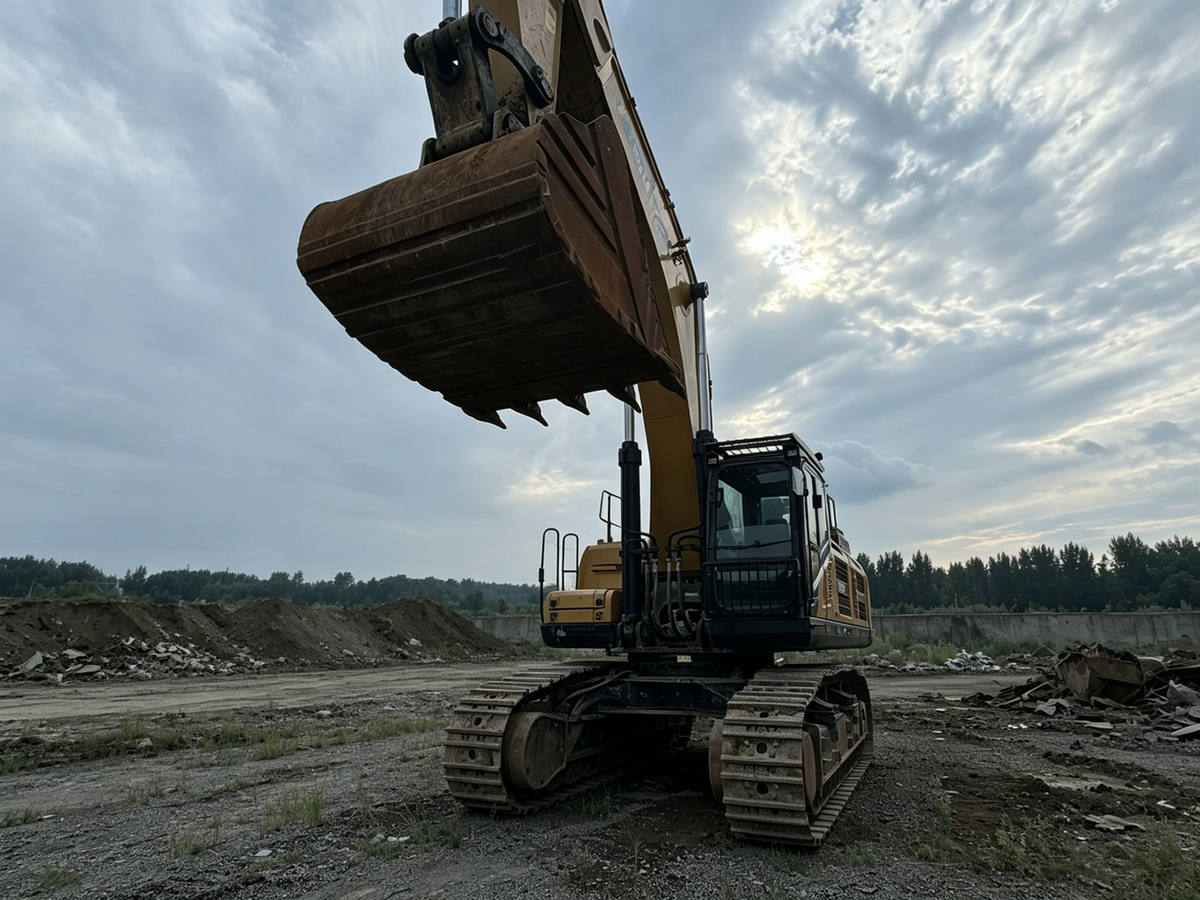

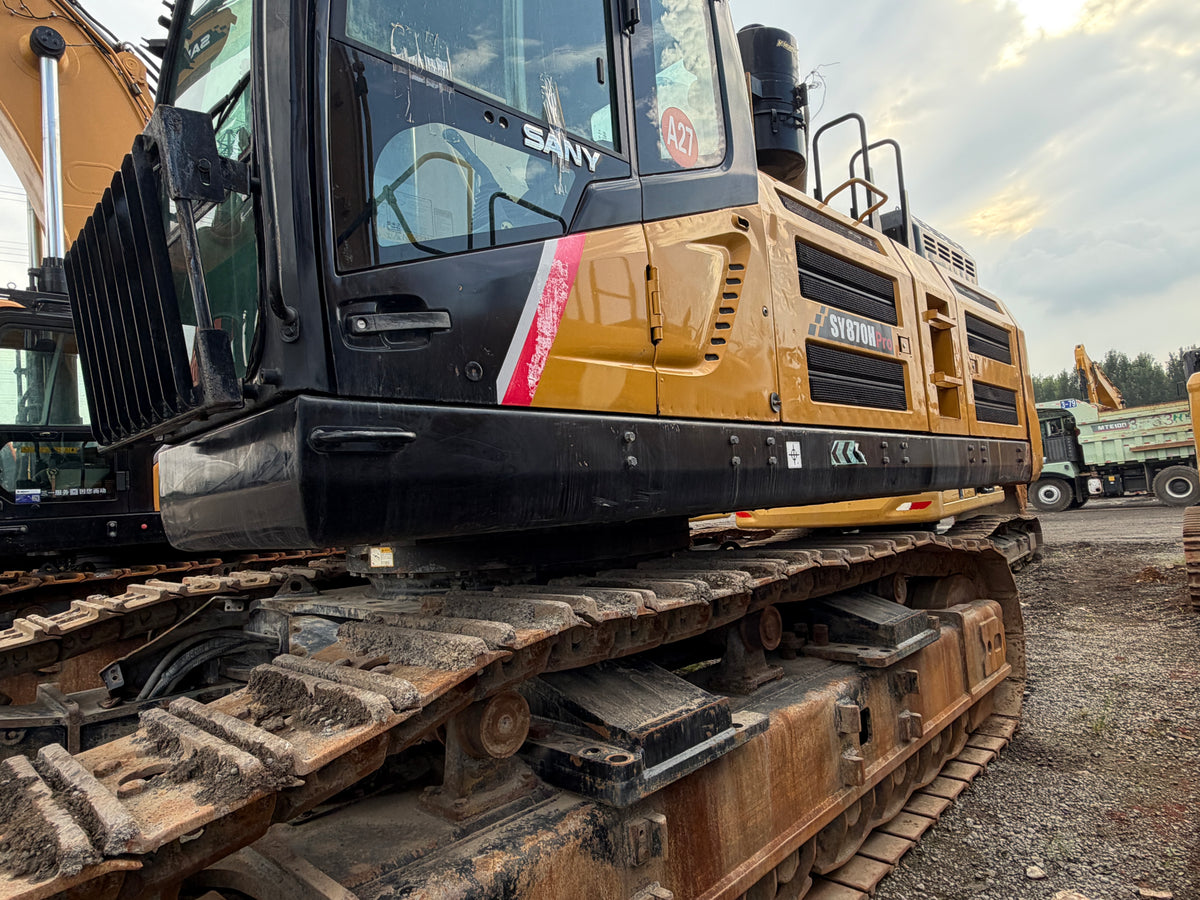

| Basic Identification | Model | SANY SY870H Large Mining Hydraulic Excavator |
| Operating Weight / kg | 78600 | |
| Working Equipment | Bucket Capacity / m³ | 5.0～6.0 (Standard fitted 5.4m³ mine bucket) |

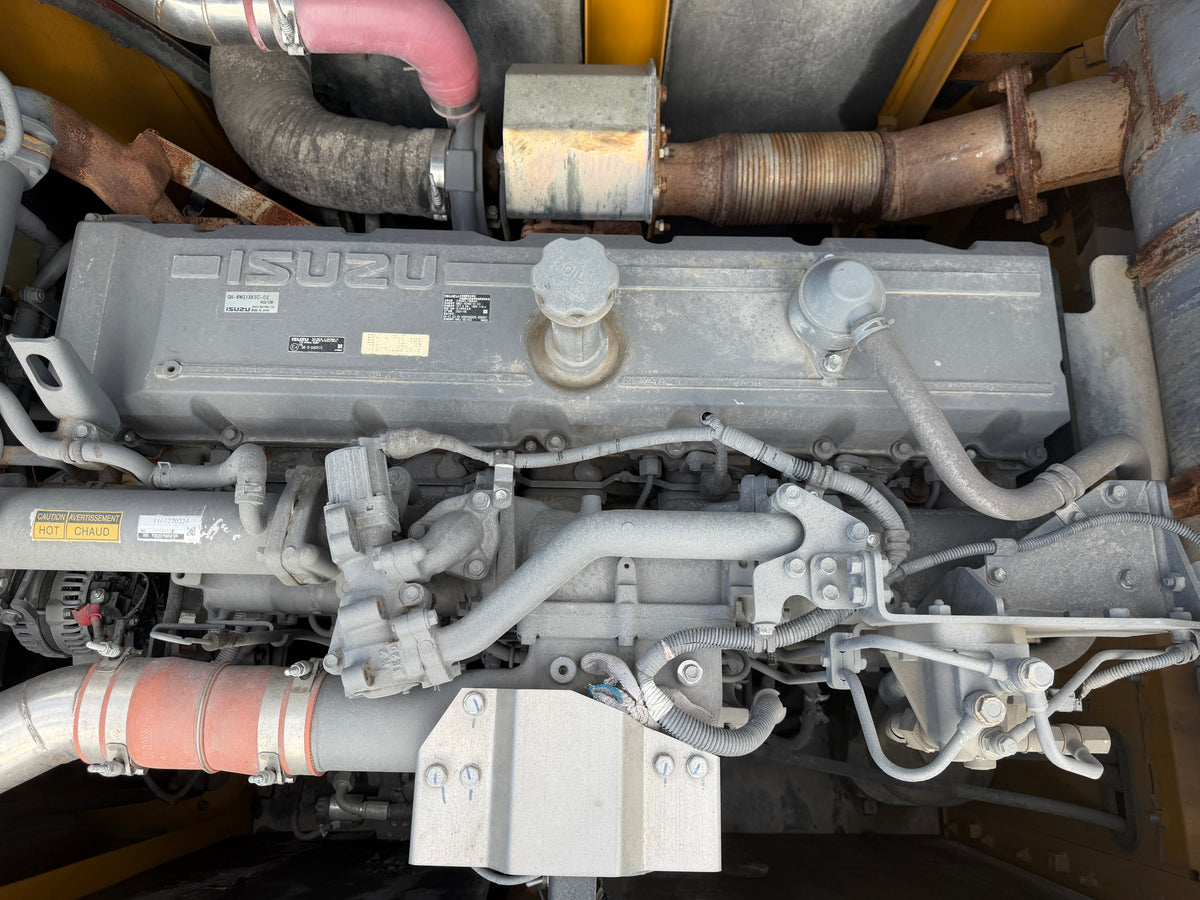

| Engine | Engine Brand / Model | Isuzu 6WG1X Diesel Engine |
| Net Rated Power | 377 kW / 1800rpm | |
| Displacement / L | 15.681 | |
| Fuel Tank Capacity / L | 940 | |
| Hydraulic System | Hydraulic Oil Tank Capacity / L | 700 |
| Working Performance | Bucket Digging Force / kN | 432 |
| Arm Digging Force / kN | 370 | |
| Swing Speed / rpm | 7.7 | |
| Travel Speed (High / Low) / km/h | 4.5 / 2.9 | |
| Max Gradeability | 30° | |

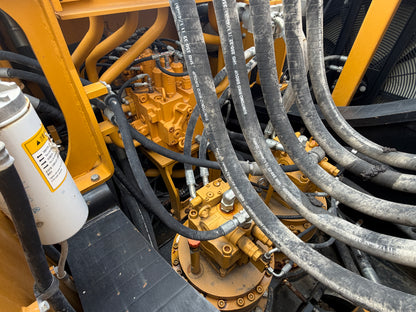

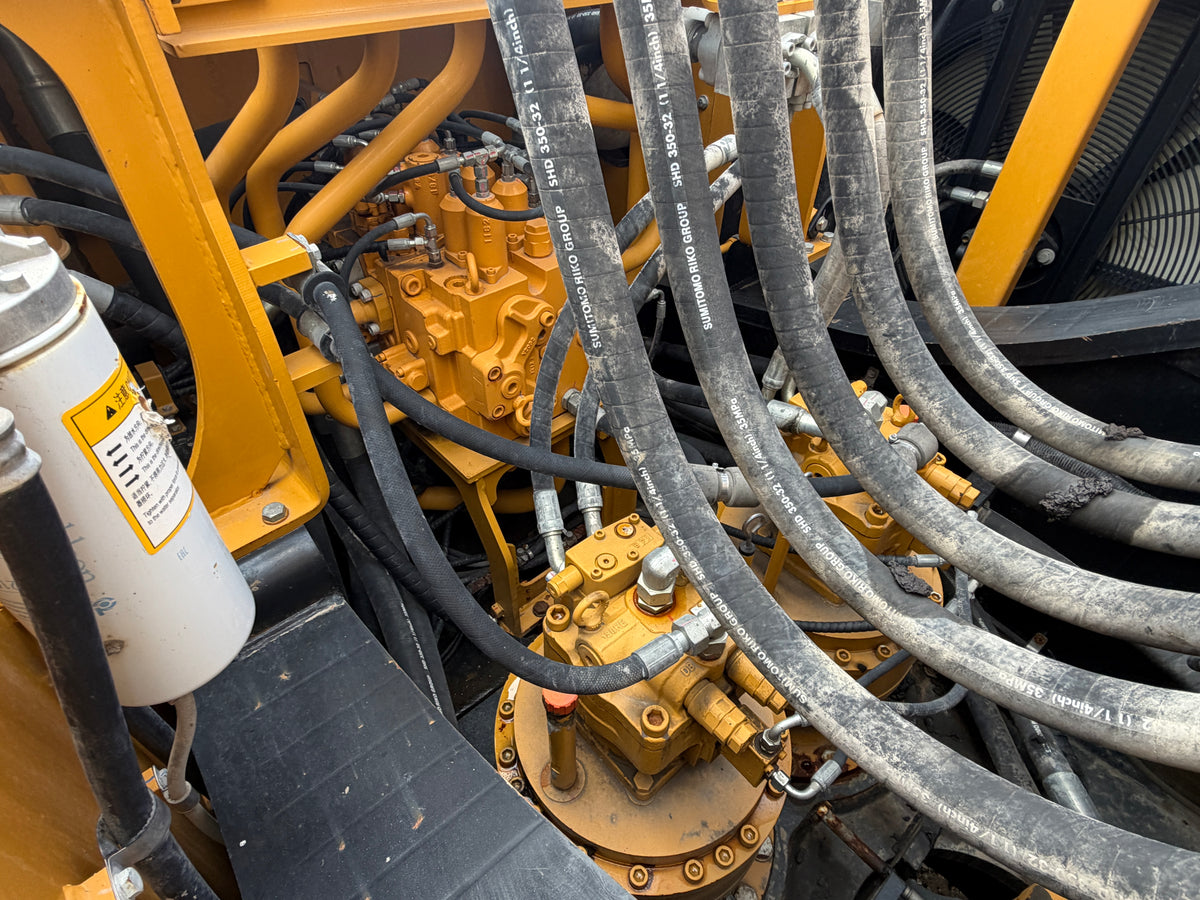

| Hydraulic System | Main Pump | Kawasaki K3V280 Electric Positive Flow Piston Pump |
| Main Control Valve | Kawasaki KMX36NA Multi-way Control Valve | |

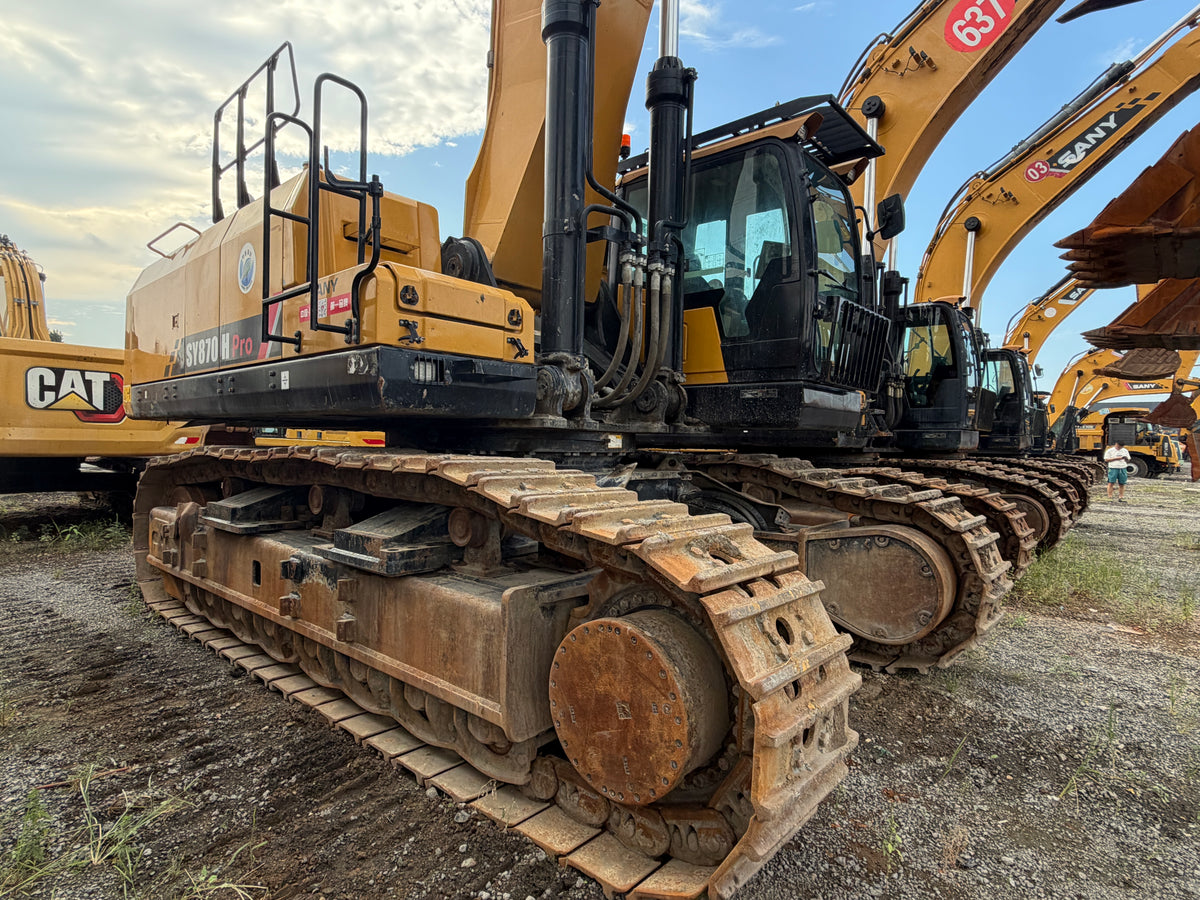

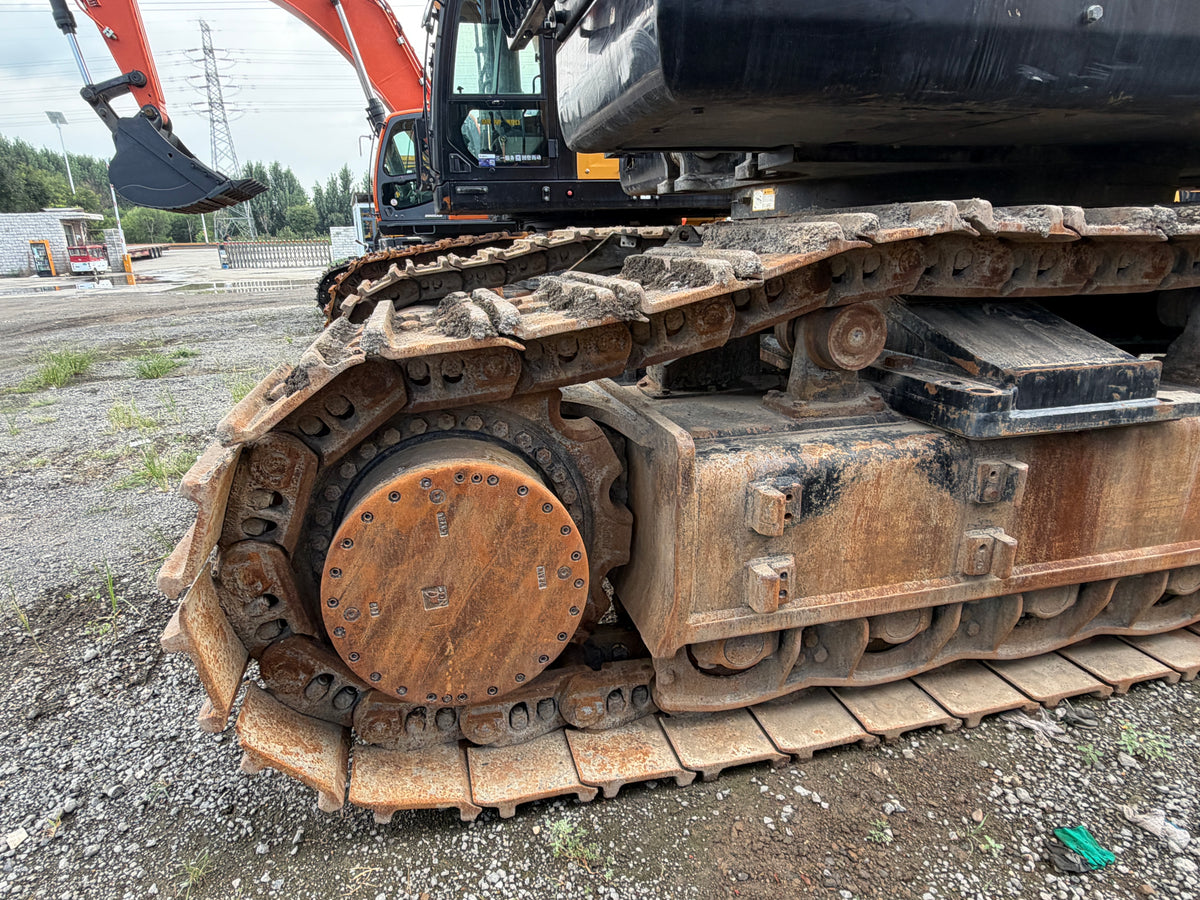

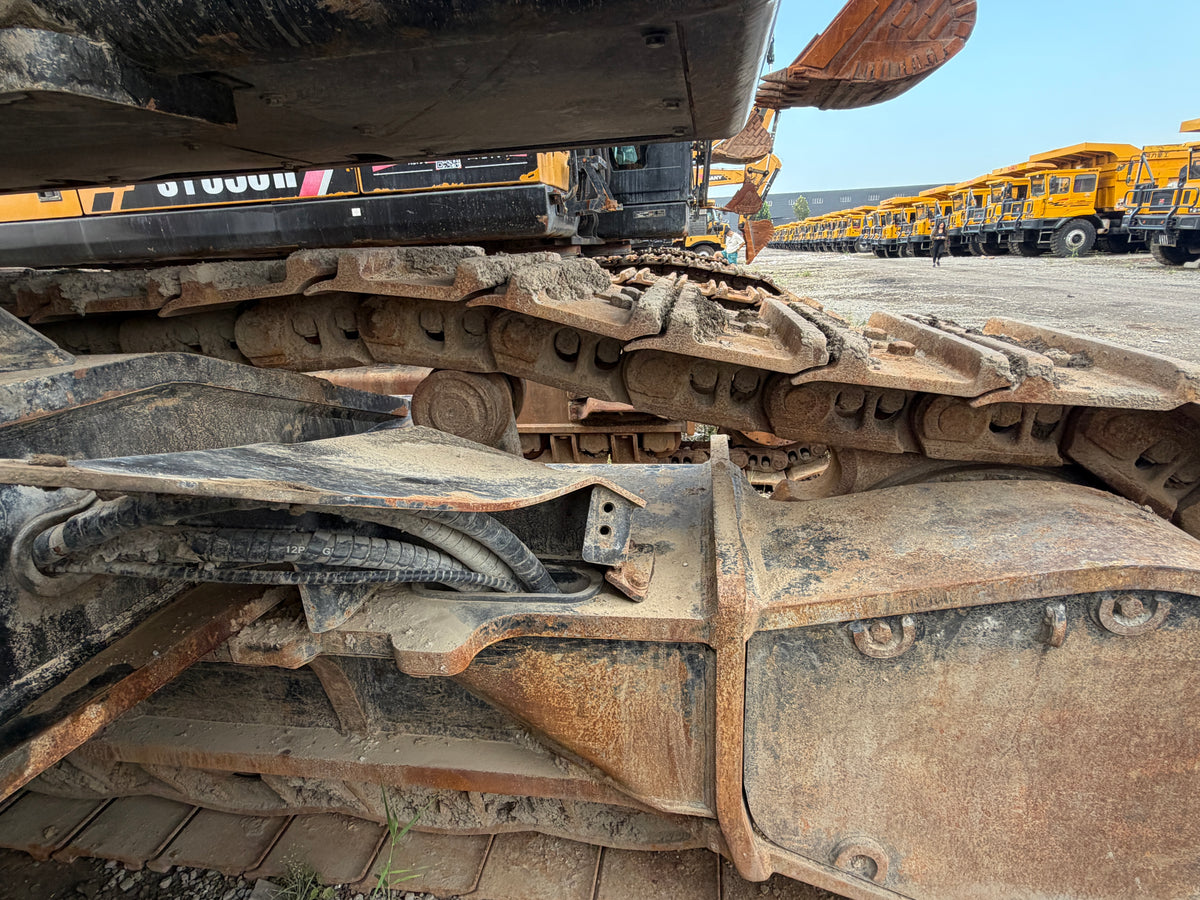

| Undercarriage | Carrier Roller / Track Roller | 3 carrier rollers and 9 track rollers on each side |
| Track Gauge / mm | 3460 | |
| Track Shoe Width / mm | 750, reinforced mining track | |
| Overall Dimensions | Overall Length / mm | 12530 |
| Overall Width / mm | 4260 | |
| Cab Top Height / mm | 4990 | |
| Standard Configuration | Application Scenarios | Open-pit mines, heavy earthwork stripping, rock excavation |
WHY CHOOSE THIS EQUIPMENT
Product Advantages
Practical advantages selected for demanding international operations.
02
High-Efficiency Earthmoving
Optimized power and hydraulic matching supports fast working cycles, precise control and productive daily output.
03
Reinforced Structure & Stability
Heavy-duty structural components and a stable undercarriage are designed to withstand intensive digging, loading and site work.
04
Operator Comfort & Easy Maintenance
An ergonomic cab, clear visibility and accessible service points support safer operation and straightforward maintenance.
