01

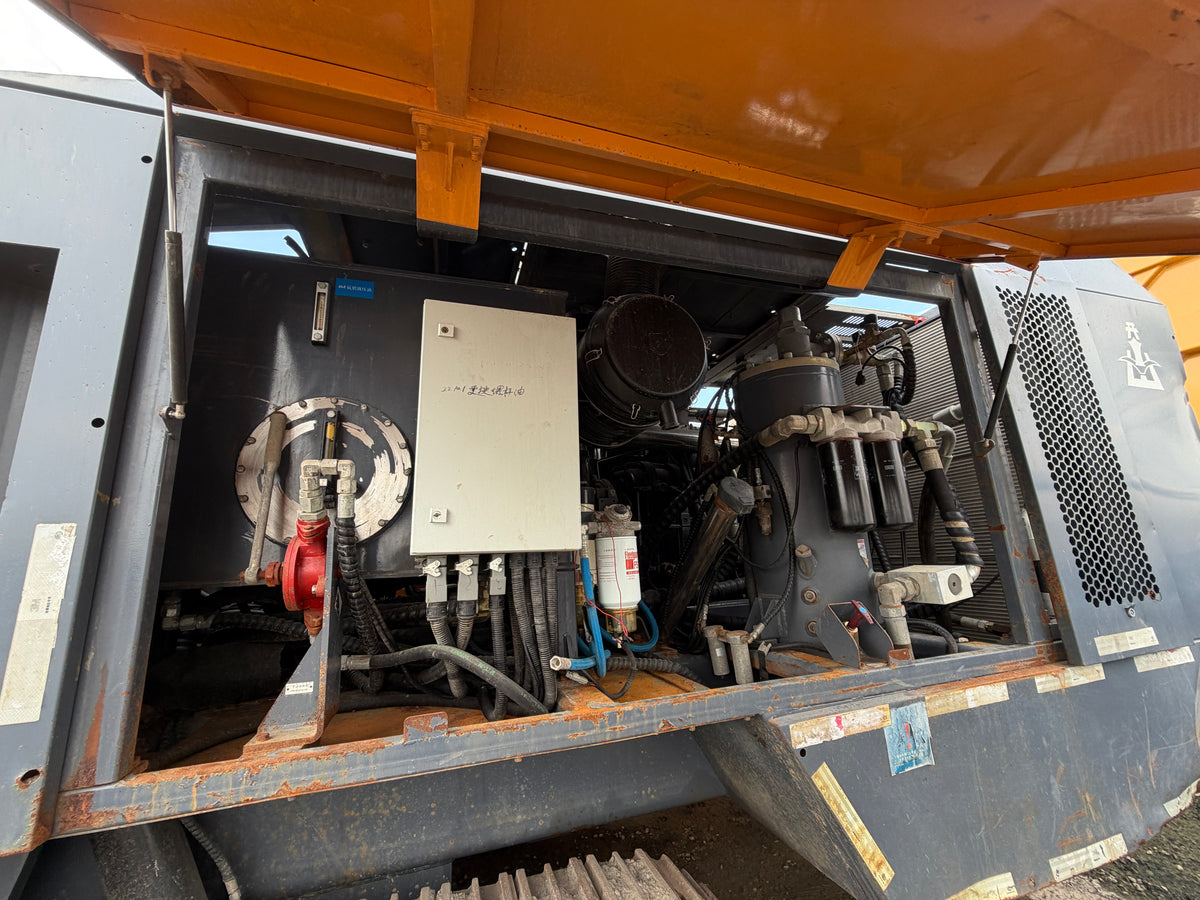

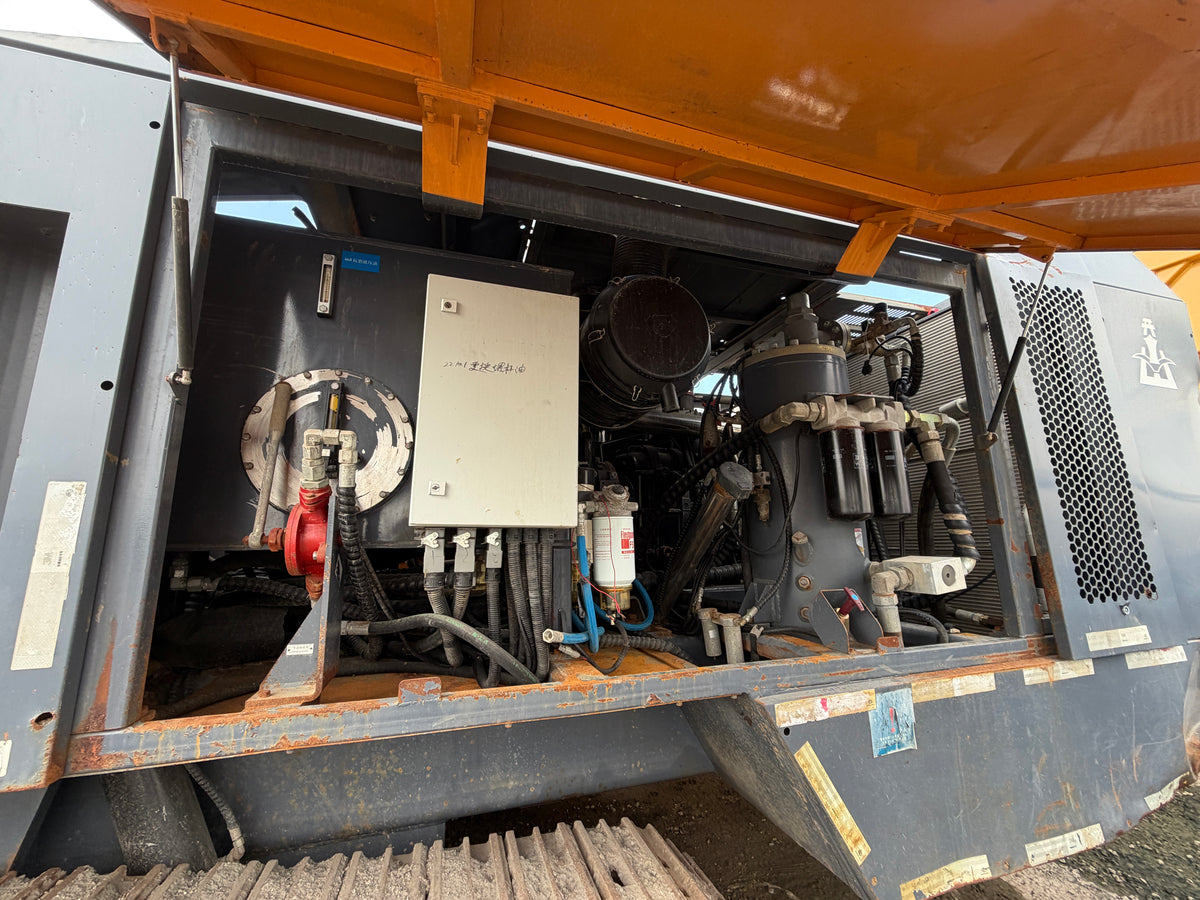

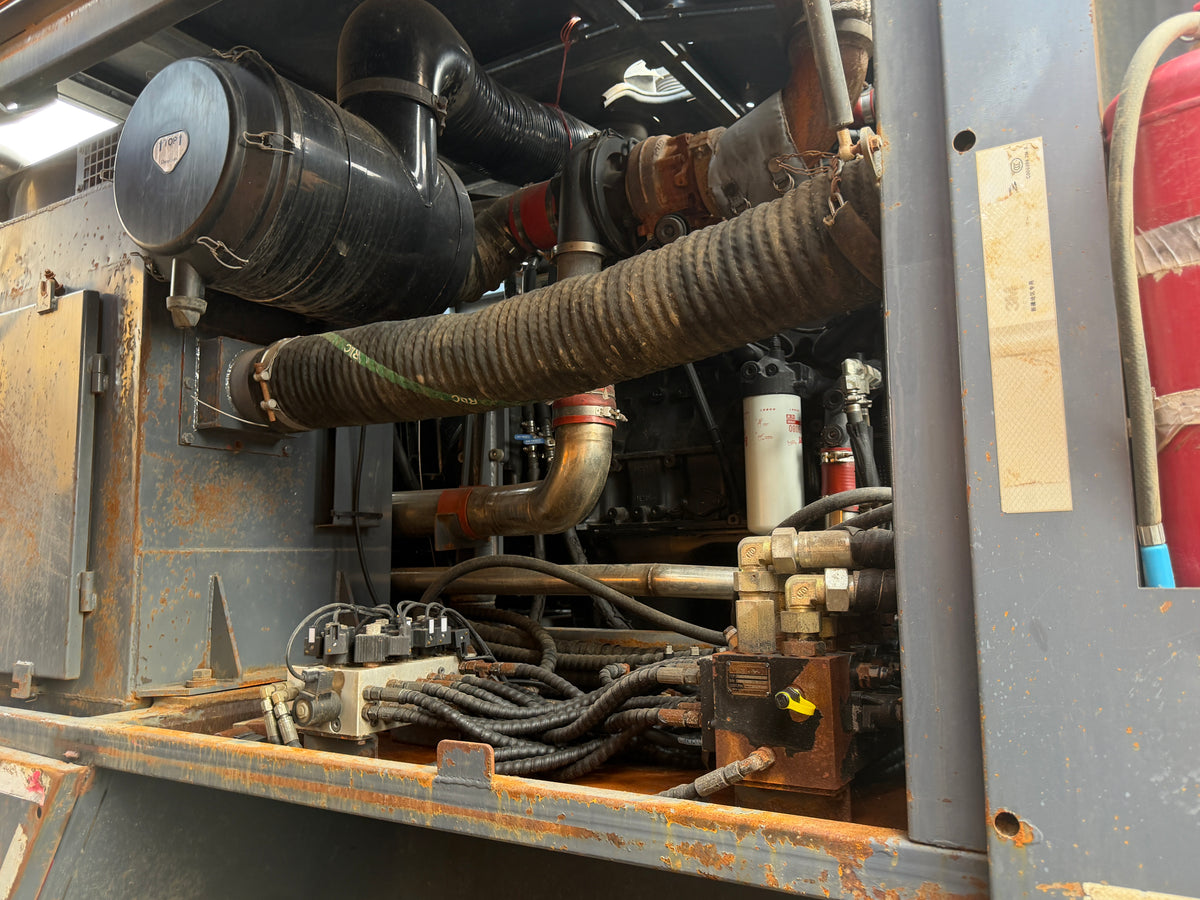

Powerful Engine & Hydraulic System
A high-torque engine and responsive hydraulic system deliver dependable performance in demanding operating conditions.
Technical Specifications
| System | Specification | Value |
|---|---|---|

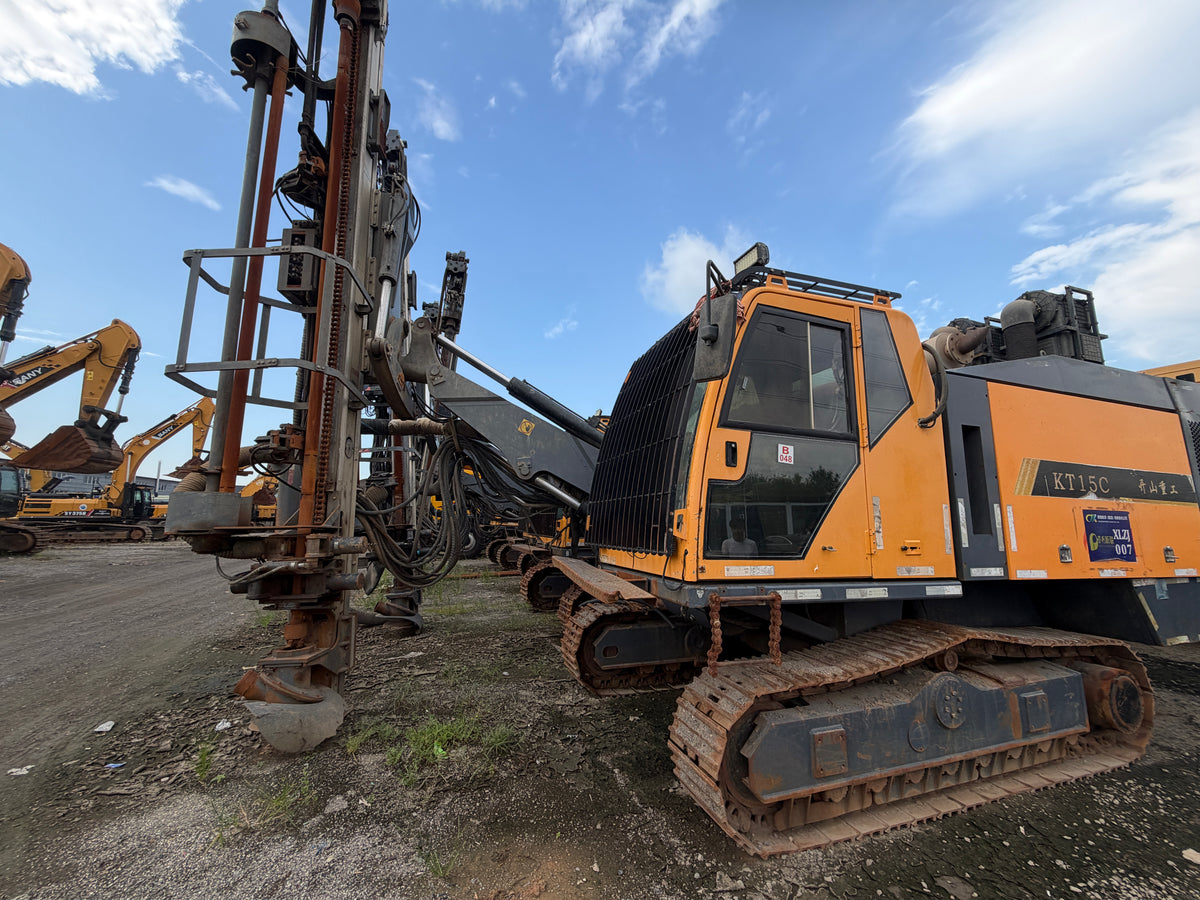

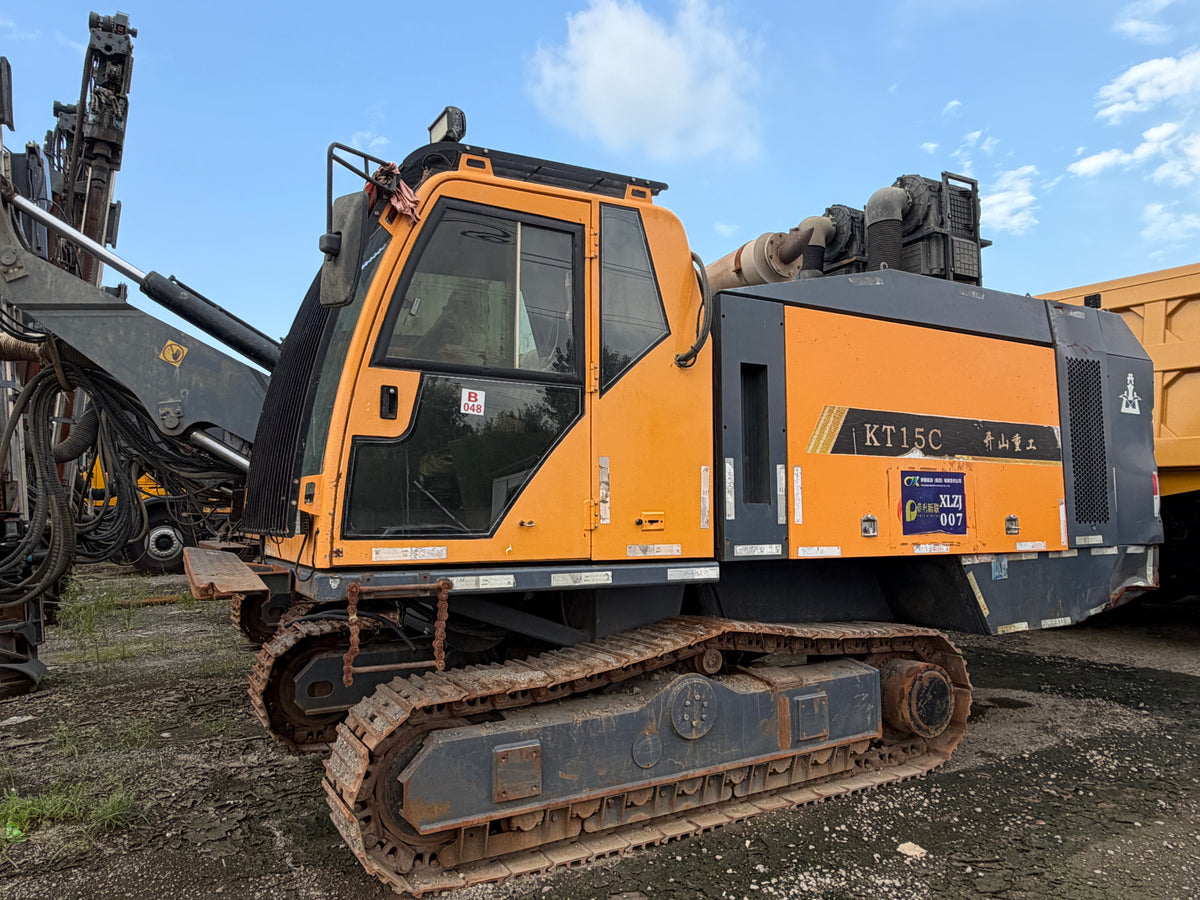

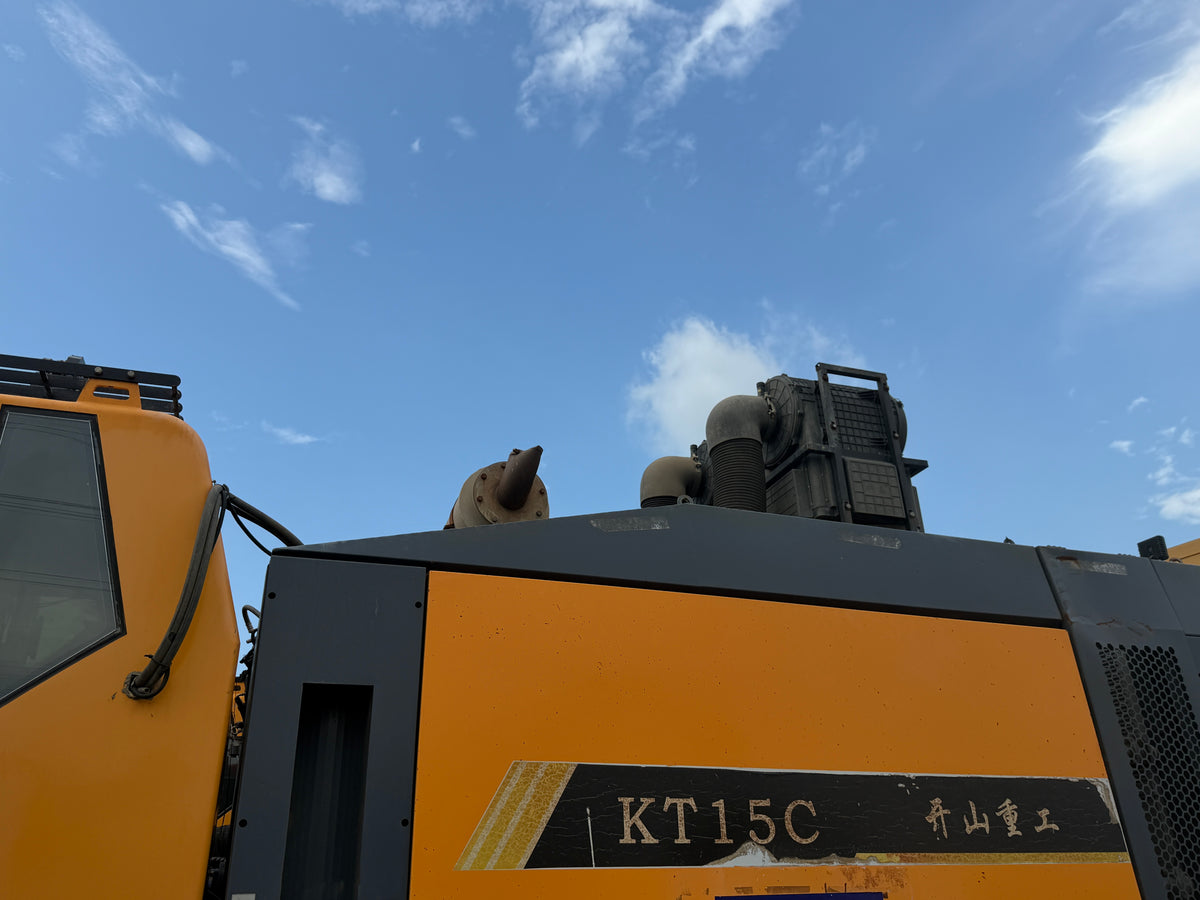

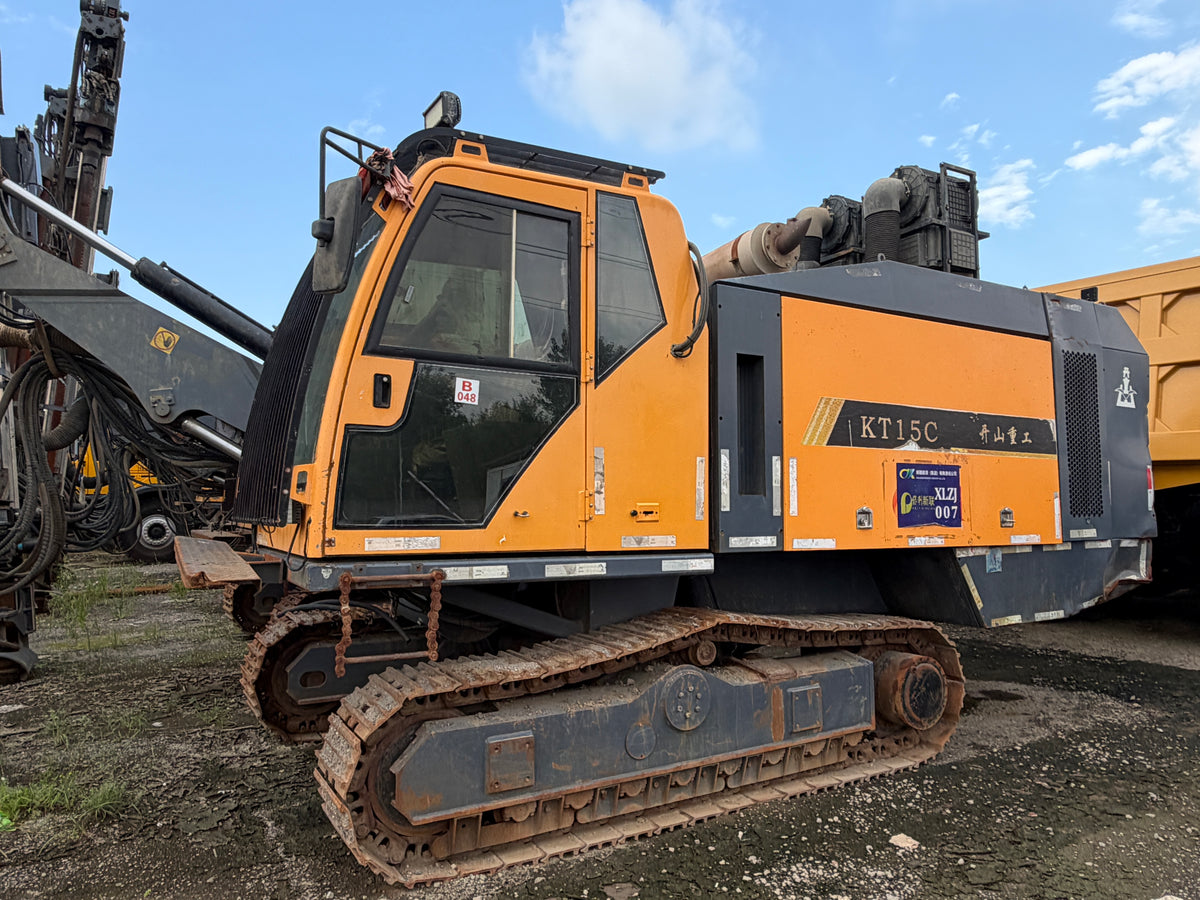

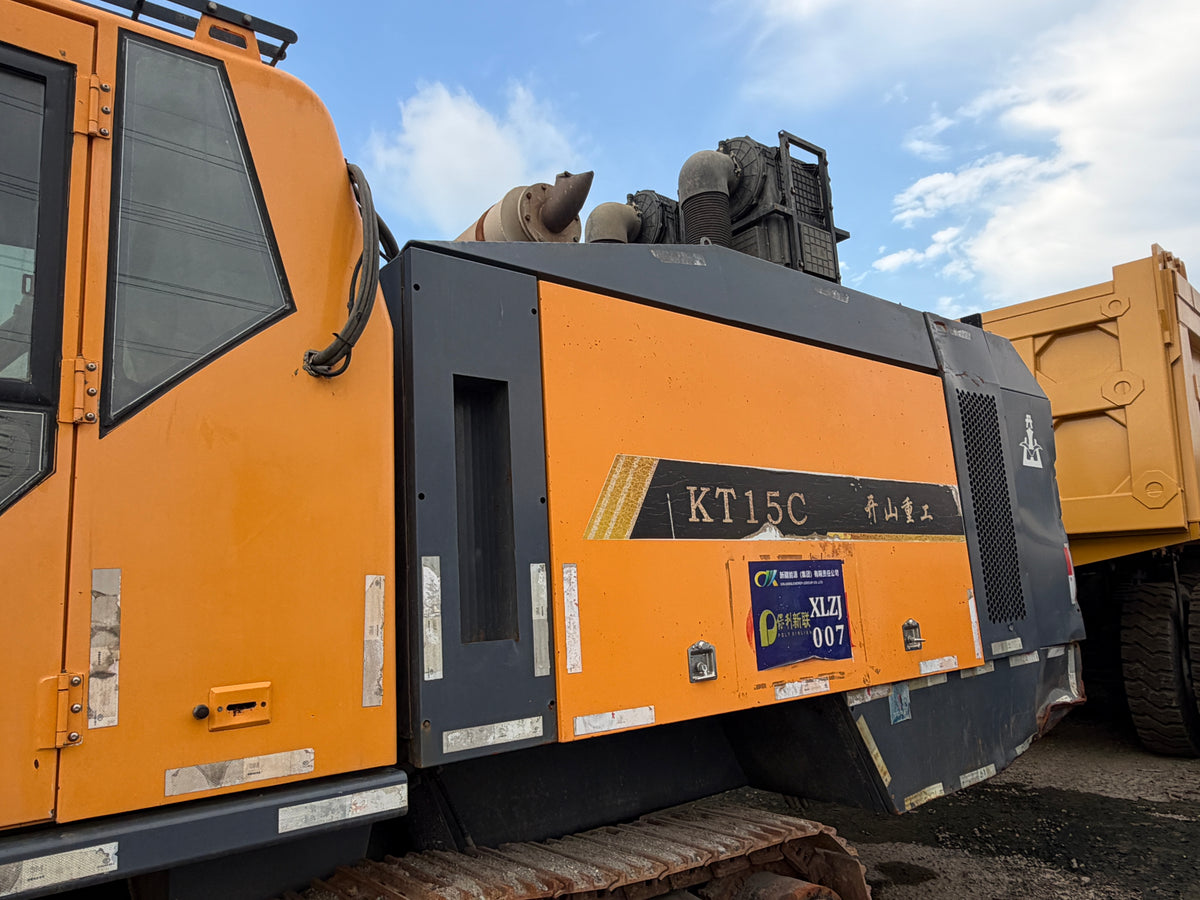

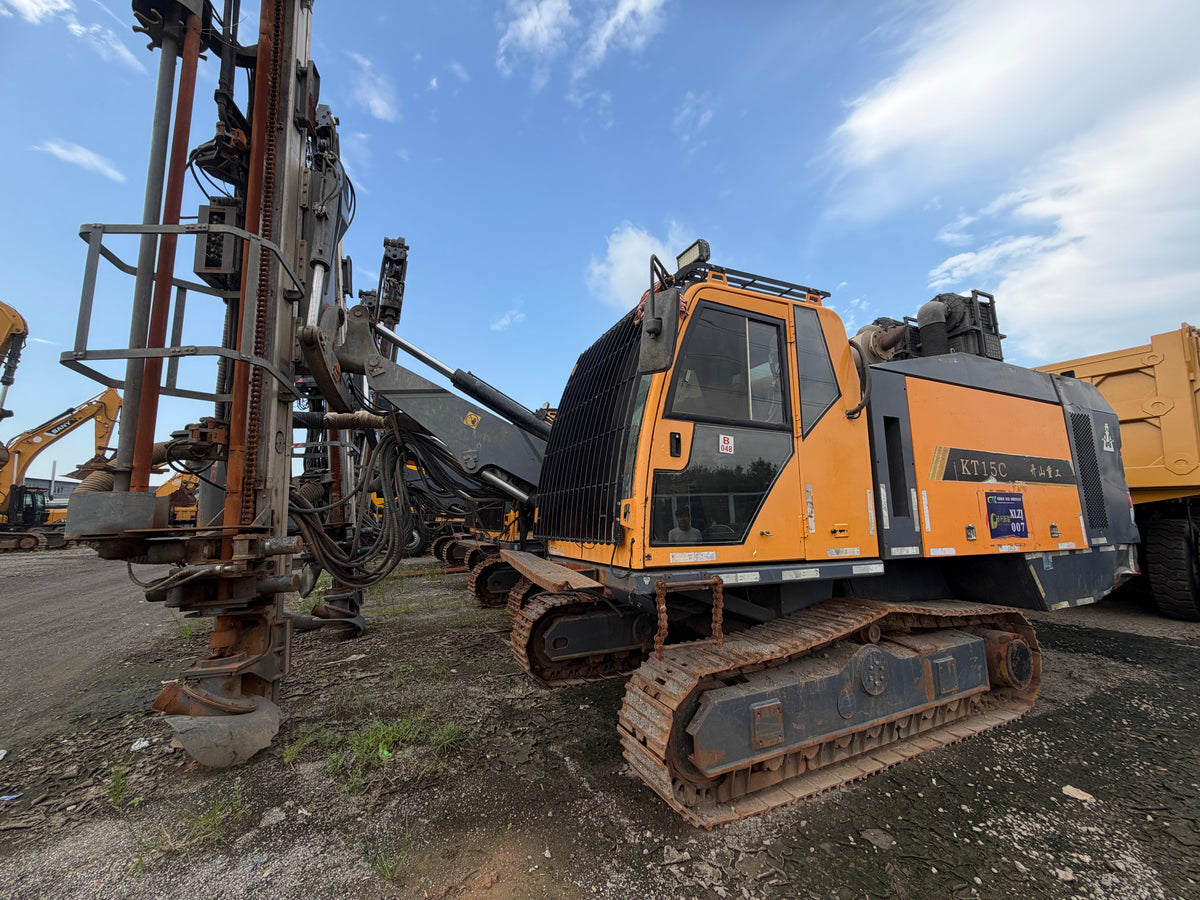

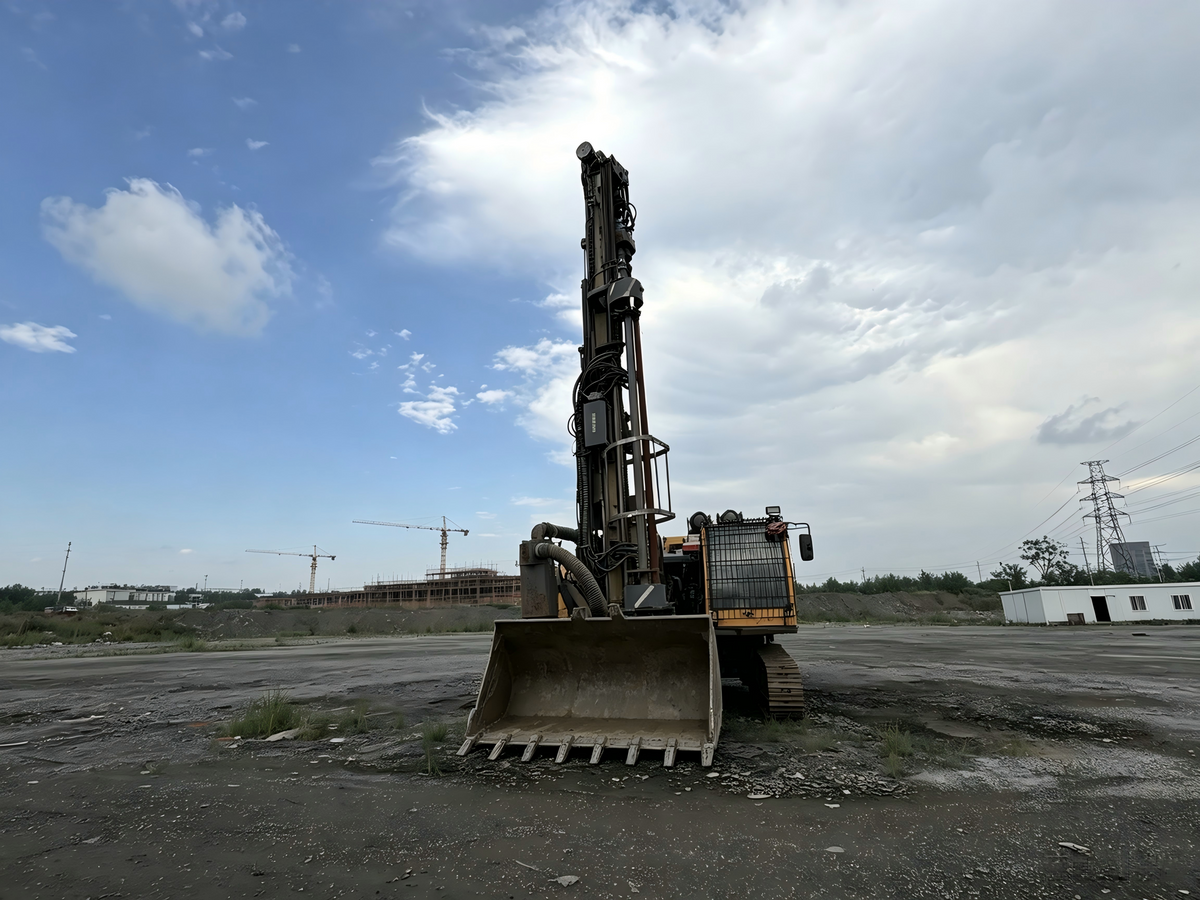

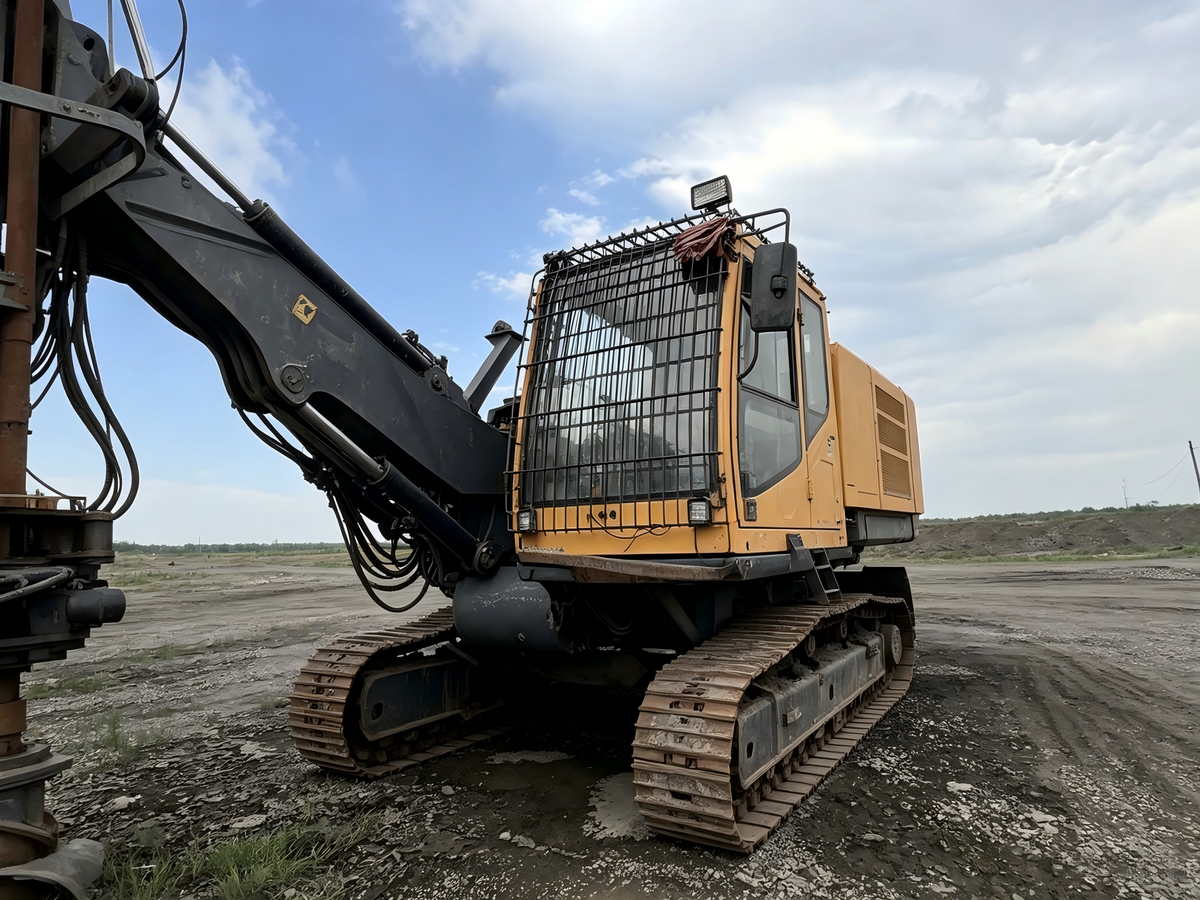

| Basic Identification | Model | Kaishan KT15C Crawler Drilling Rig |
| Operating Weight / kg | 24800 | |

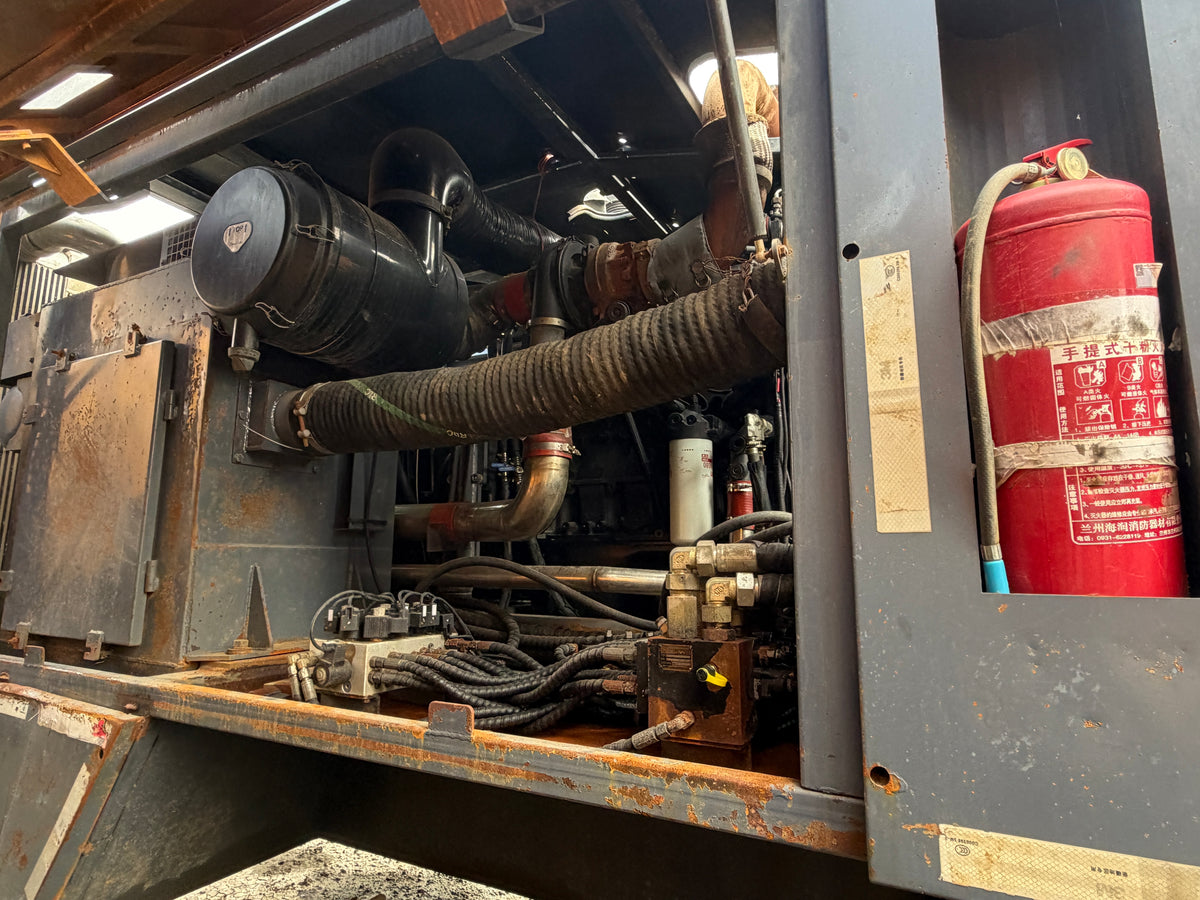

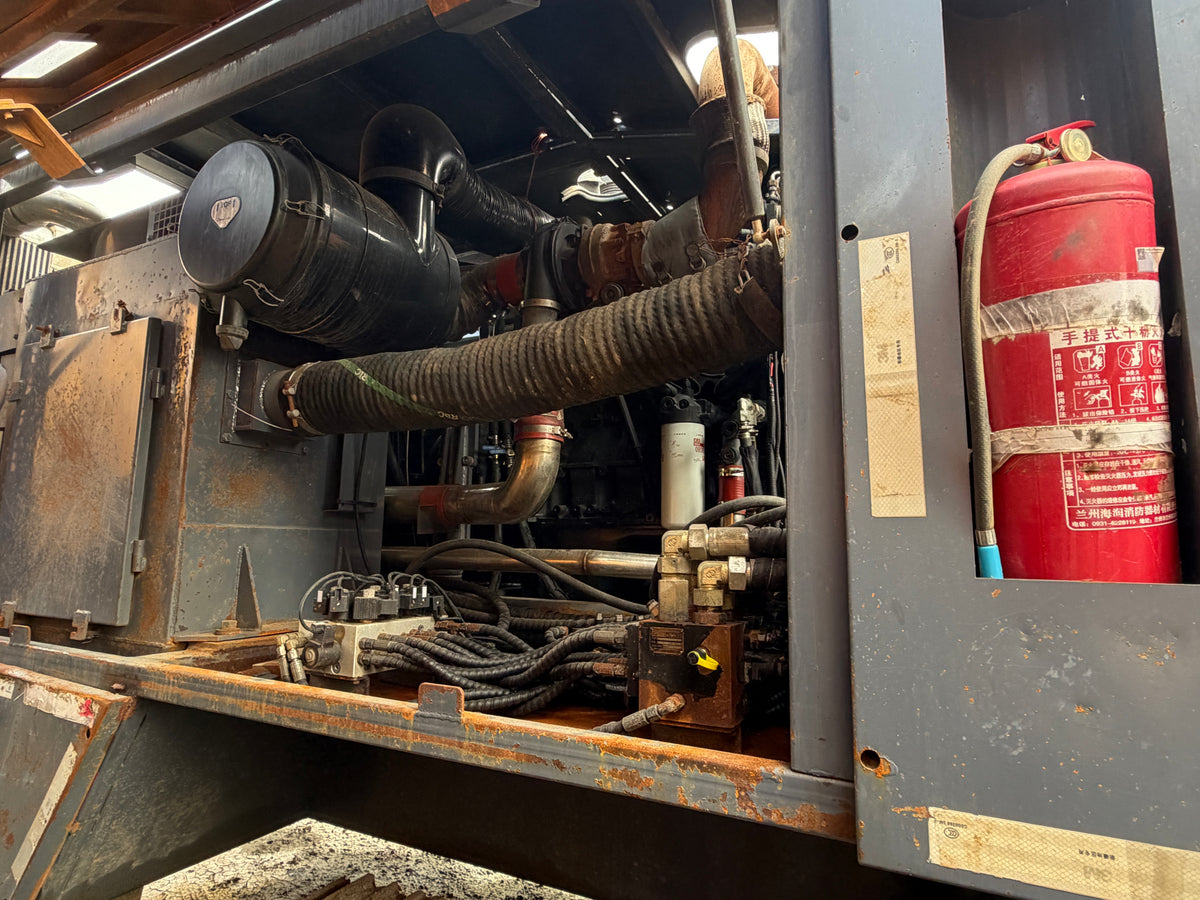

| Engine | Engine Brand / Model | Cummins QSZ13‑C400 Diesel Engine |
| Net Rated Power | 298 kW (400 hp) | |

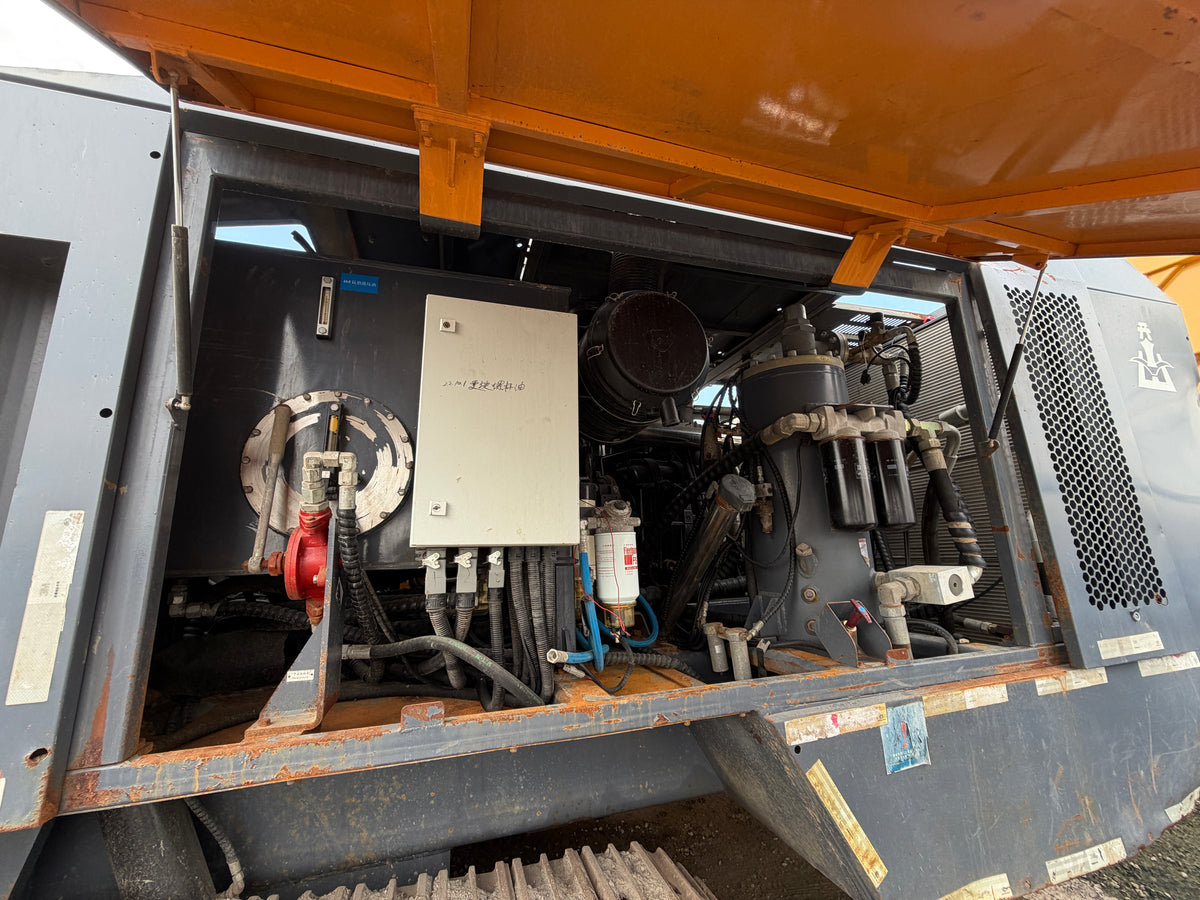

| Air Compressor | Air Compressor Displacement / m³/min | 22 |
| Air Compressor Working Pressure / bar | 20 (Max 24) | |
| Drilling Performance | Applicable Rock Hardness | f=6~20 |
| Hole Diameter / mm | 140‑190 | |
| Economic Drilling Depth / m | 35‑36 | |
| Drill Rod Specification | Φ89/Φ102 × 4000/5000mm | |
| Compatible DTH Hammer | 55A / 65A | |
| Rotary Torque / N·m | 4100 | |
| Rotary Speed / r/min | 0‑100 | |
| Lifting Force / N | 65000 | |
| Compensation Stroke / mm | 1800 | |
| Drilling Angle | 51° upward / 19° downward, horizontal drilling available | |

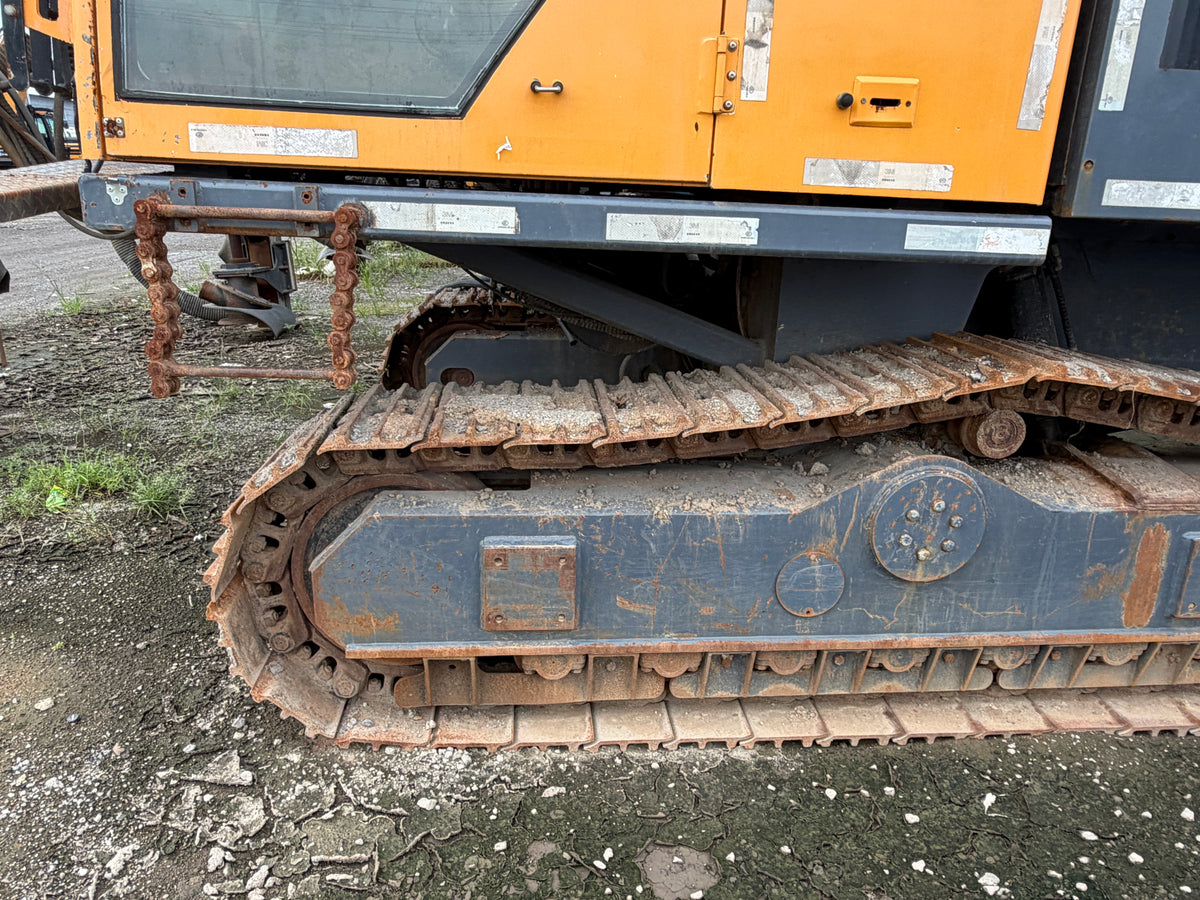

| Travel Chassis | Travel Speed / km/h | 3.0 |
| Max Gradeability | 25° | |
| Ground Clearance / mm | 430 | |

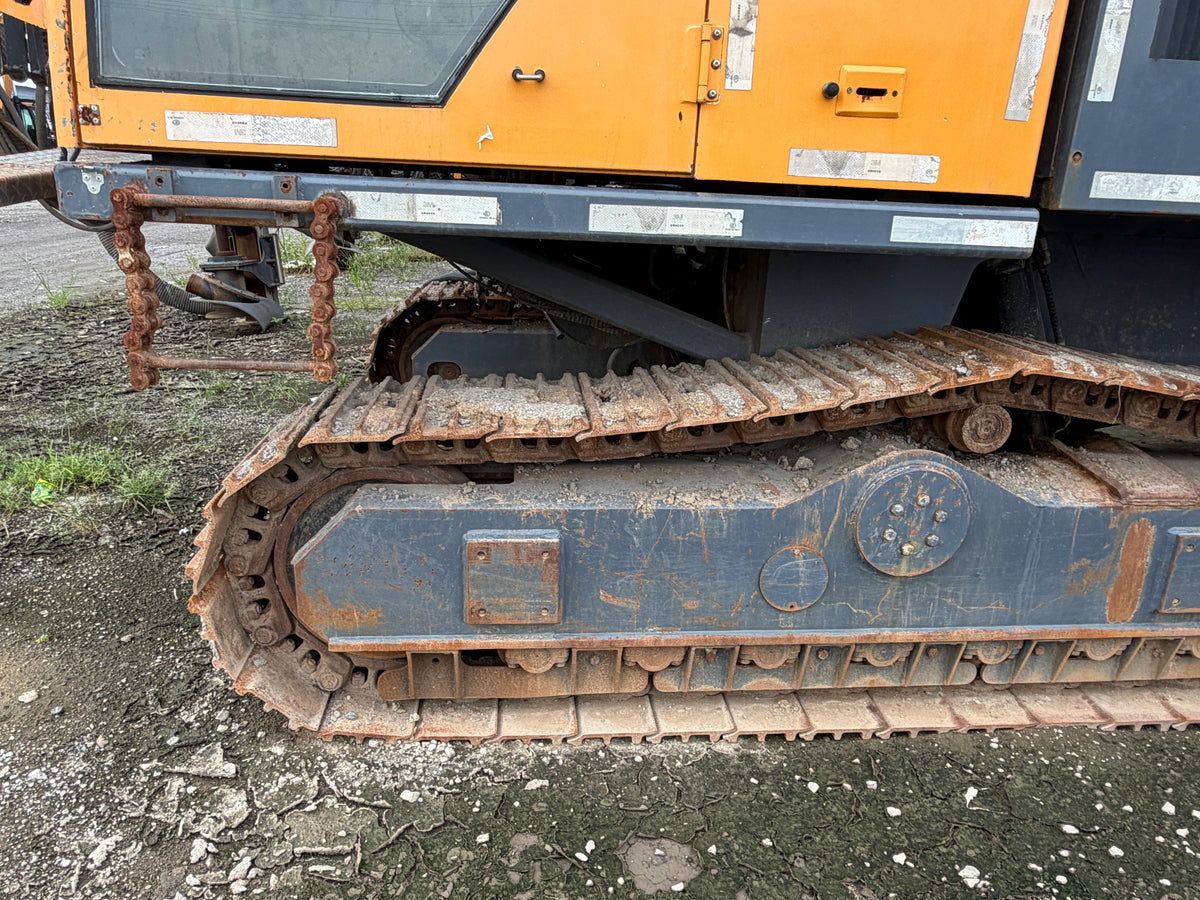

| Drive Type | Steel crawler hydraulic drive | |
| Overall Dimensions | Overall Dimension (L × W × H) / mm | 11000 × 2780 × 3800 |
| Standard Configuration | Standard Features | Auto drill rod loading/unloading, anti-jam protection, automatic drill rod lubrication, dry dust removal, sealed air-conditioned cab |
WHY CHOOSE THIS EQUIPMENT
Product Advantages
Practical advantages selected for demanding international operations.
02
High-Efficiency Earthmoving
Optimized power and hydraulic matching supports fast working cycles, precise control and productive daily output.
03
Reinforced Structure & Stability
Heavy-duty structural components and a stable undercarriage are designed to withstand intensive digging, loading and site work.
04
Operator Comfort & Easy Maintenance
An ergonomic cab, clear visibility and accessible service points support safer operation and straightforward maintenance.
