01

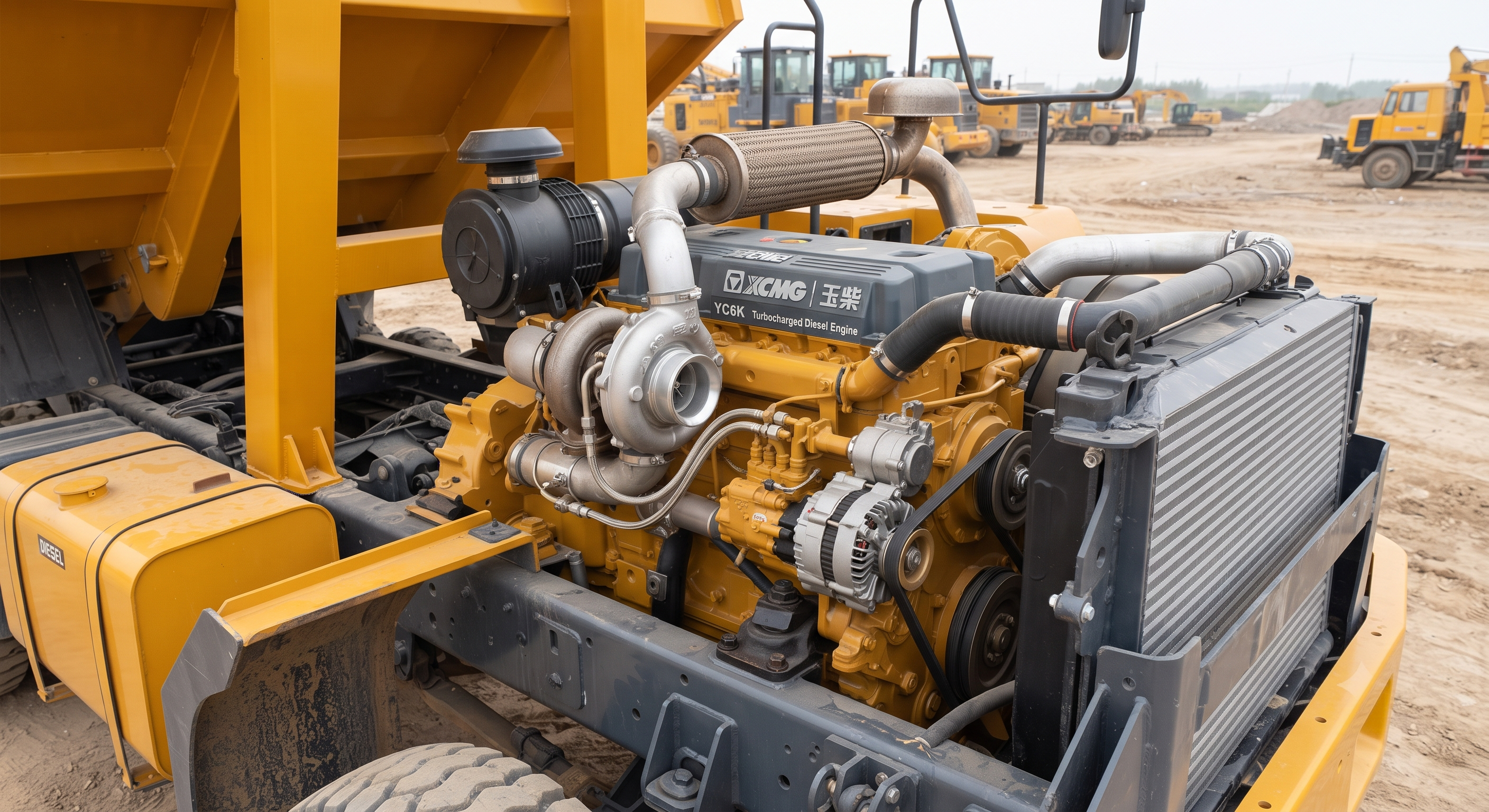

Powerful Engine & Hydraulic System
A high-torque engine and responsive hydraulic system deliver dependable performance in demanding operating conditions.
Technical Specifications
| System | Specification | Unit | Value |
|---|---|---|---|

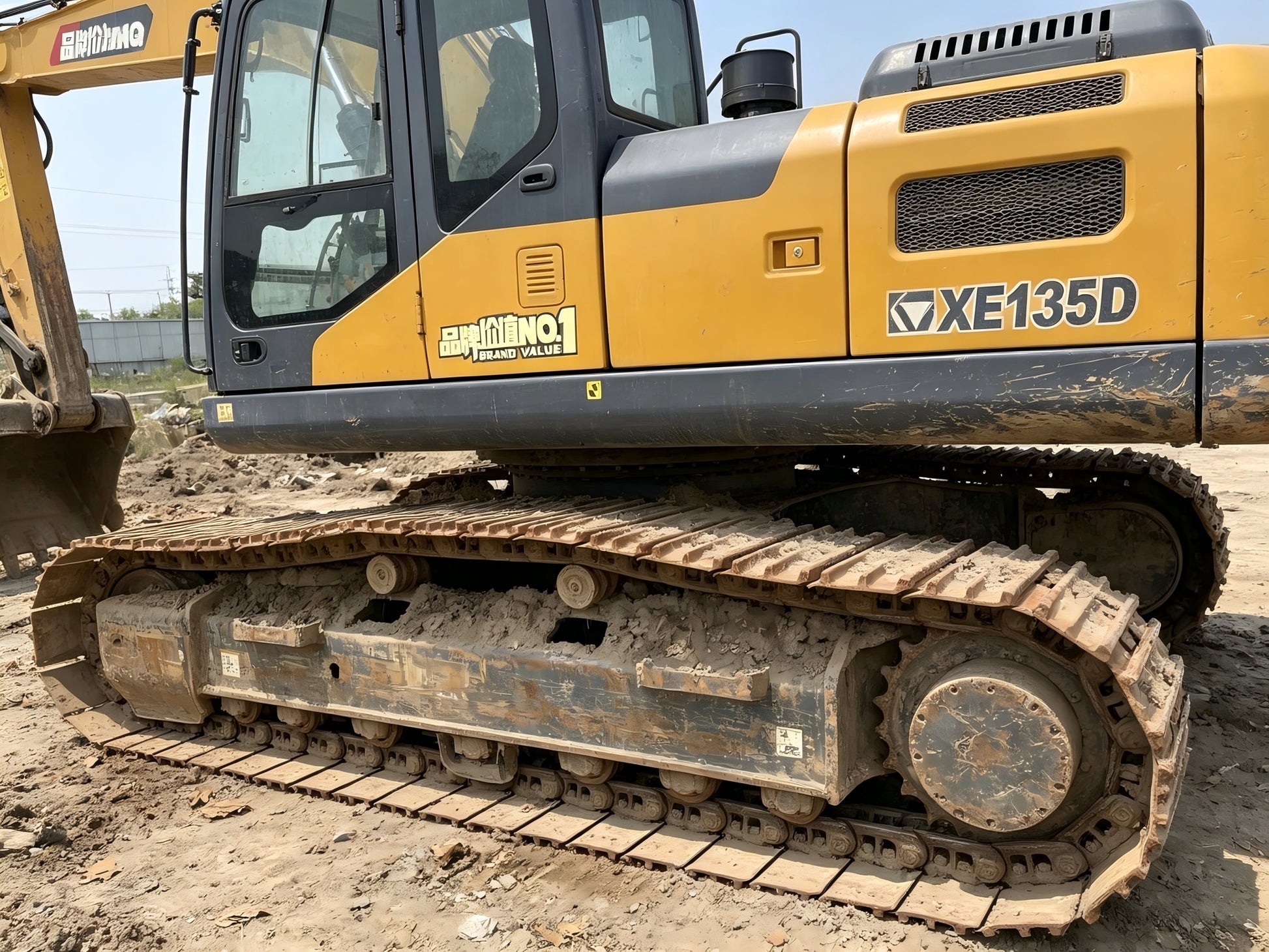

| General | Model | XE135D | |
| Operating Weight | kg | 13200 | |
| Bucket Capacity | m³ | 0.32-0.61 | |
| Engine | Engine Model | QSF3.8 | |
| Electronic Fuel Injection | √ | ||
| 4-Stroke Engine | √ | ||
| Water-Cooled | √ | ||
| Turbocharged | √ | ||
| Air-to-Air Intercooler | √ | ||
| Number of Cylinders | 4 | ||
| Engine Rated Power | kW/rpm | 86/2200 | |
| Maximum Torque / Speed | N·m/rpm | 470/1300 | |
| Displacement | L | 3.8 | |
| Performance | Travel Speed | km/h | 5.2/2.9 |
| Swing Speed | rpm | 11 | |
| Gradeability | ° | 35 | |
| Ground Pressure | kPa | 40.4 | |
| Bucket Digging Force | kN | 99.1 | |
| Arm Digging Force | kN | 68 | |
| Maximum Drawbar Pull | kN | 134 | |
| Hydraulic System | Rated Main Pump Flow | L/min | 125.4*2 |
| Main Relief Valve Pressure | MPa | 31.4 | |
| Travel System Pressure | MPa | 34.4 | |
| Swing System Pressure | MPa | 25 | |
| Pilot System Pressure | MPa | 3.9 | |
| Fluid Capacities | Fuel Tank Capacity | L | 260 |
| Hydraulic Oil Tank Capacity | L | 105 | |
| Engine Oil Capacity | L | 11 | |
| Overall Dimensions | Overall Length (A) | mm | 7795 |
| Overall Width (B) | mm | 2525 | |
| Overall Height (C) | mm | 2880 | |
| Upperstructure Width (D) | mm | 2490 | |
| Track Length (E) | mm | 3648 | |
| Overall Chassis Width (F) | mm | 2490 | |
| Track Shoe Width (G) | mm | 500 | |
| Track Wheelbase (H) | mm | 2918 | |
| Track Gauge (I) | mm | 1990 | |
| Counterweight Ground Clearance (J) | mm | 931 | |
| Minimum Ground Clearance (K) | mm | 466 | |
| Minimum Tail Swing Radius (L) | mm | 2325 | |
| Track Height (M) | mm | 802 | |
| Working Range | Maximum Digging Height (A) | mm | 8638 |
| Maximum Dumping Height (B) | mm | 6174 | |
| Maximum Digging Depth (C) | mm | 5546 | |
| Maximum Digging Depth at 8 ft Level (D) | mm | 5335 | |
| Maximum Vertical Digging Depth (E) | mm | 4698 | |
| Maximum Digging Radius (F) | mm | 8304 | |
| Minimum Swing Radius (G) | mm | 2445 | |
| Standard Equipment | Boom Length | mm | 4600 |
| Arm Length | mm | 2520 | |
| Bucket Capacity | m³ | 0.52 | |
| 1 | Power System | Engine | Cummins |
| General | 2 | Radiator | Yinlun |
| 3 | Hydraulic System | Main Control Valve | Parker |
| General | 4 | Main Pump | Doosan |
| 5 | Travel Motor | Doosan | |
| 6 | Swing Motor | Doosan | |
| 7 | Hydraulic Cylinder | Hengli | |
| 8 | Undercarriage | Undercarriage | XCMG |
| 9 | Air Conditioning System | Air Conditioner | XCMG |
WHY CHOOSE THIS EQUIPMENT
Product Advantages
Practical advantages selected for demanding international operations.
02
High-Efficiency Earthmoving
Optimized power and hydraulic matching supports fast working cycles, precise control and productive daily output.
03
Reinforced Structure & Stability
Heavy-duty structural components and a stable undercarriage are designed to withstand intensive digging, loading and site work.
04

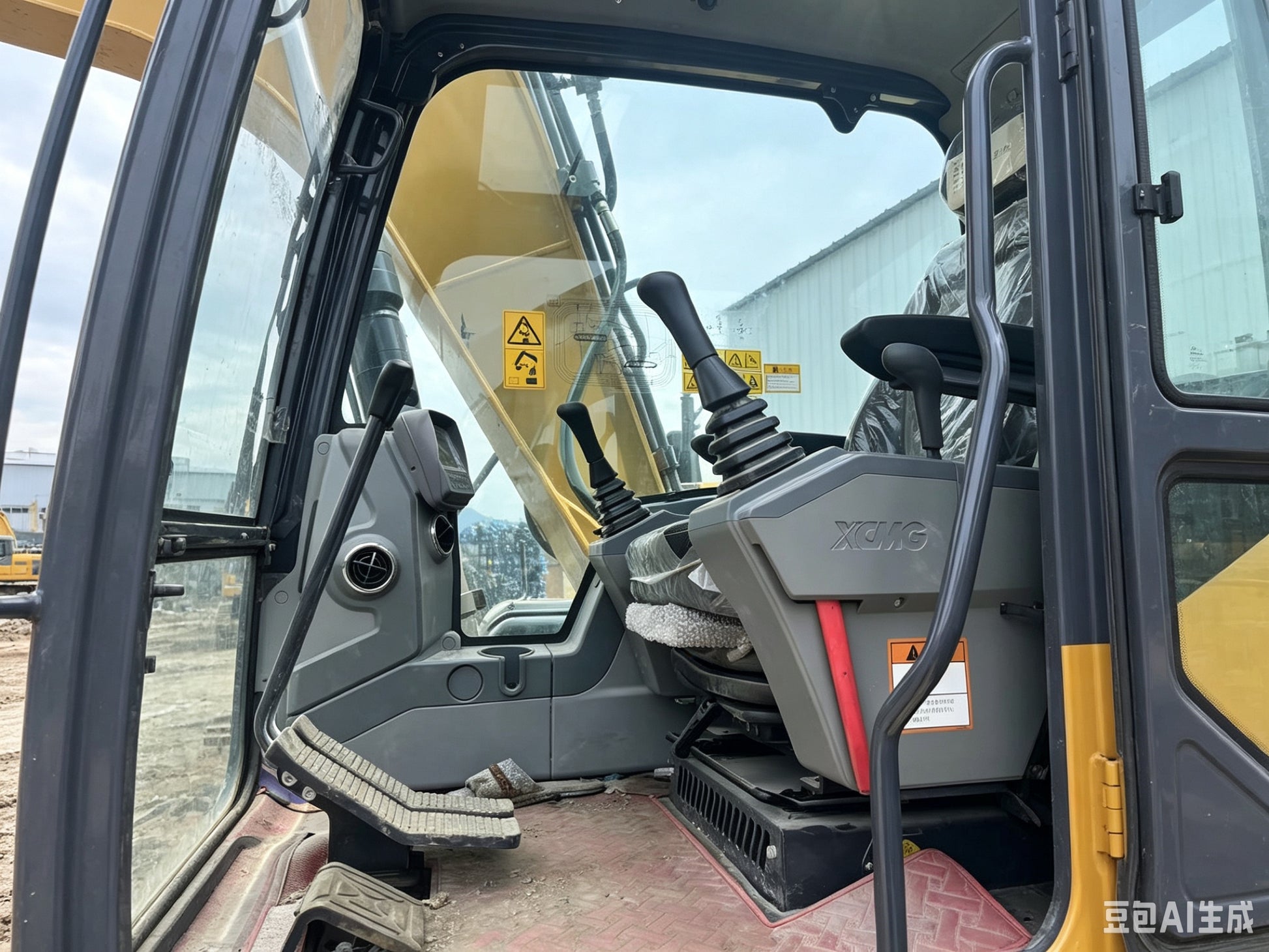

Operator Comfort & Easy Maintenance
An ergonomic cab, clear visibility and accessible service points support safer operation and straightforward maintenance.
