01

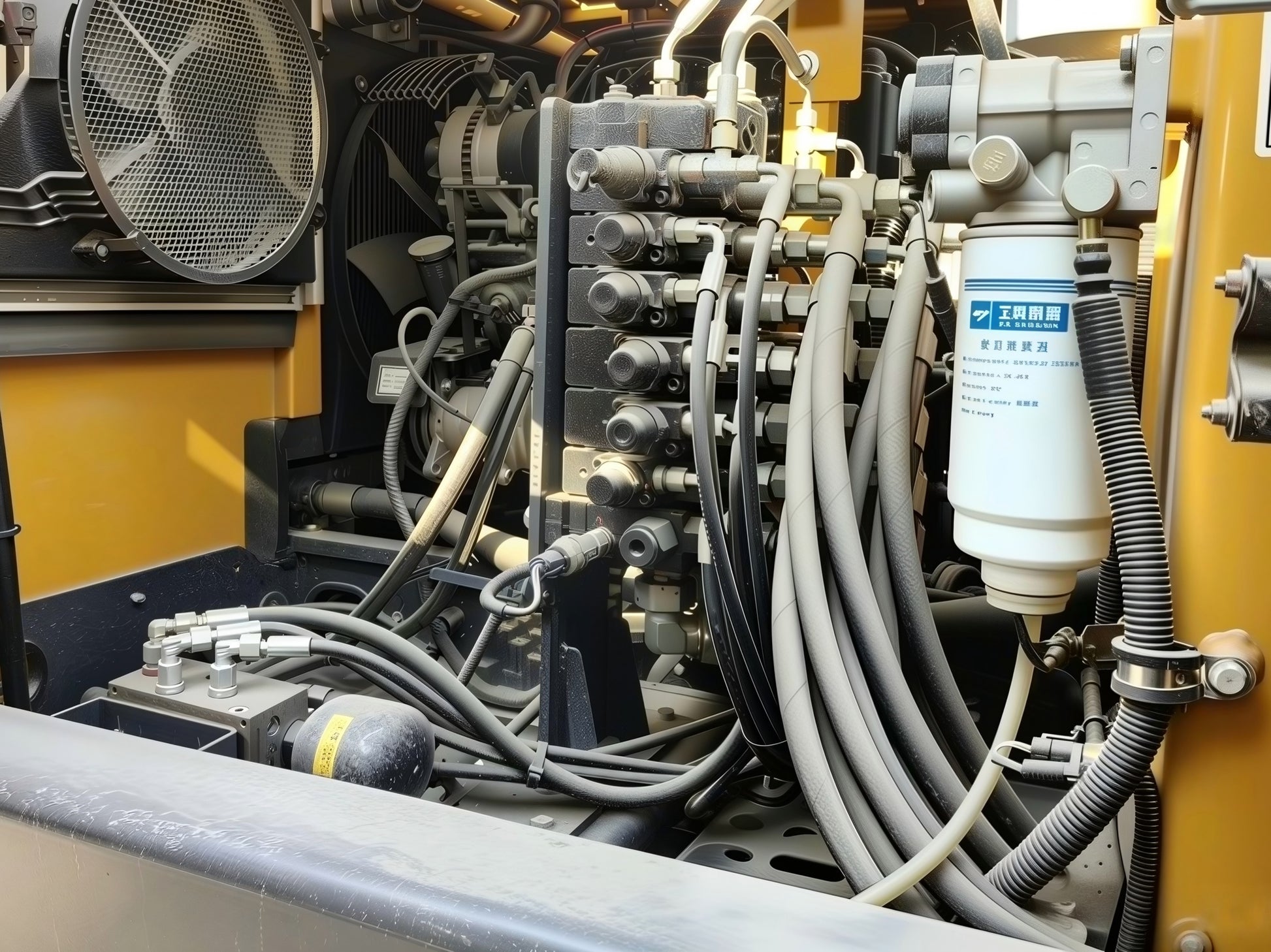

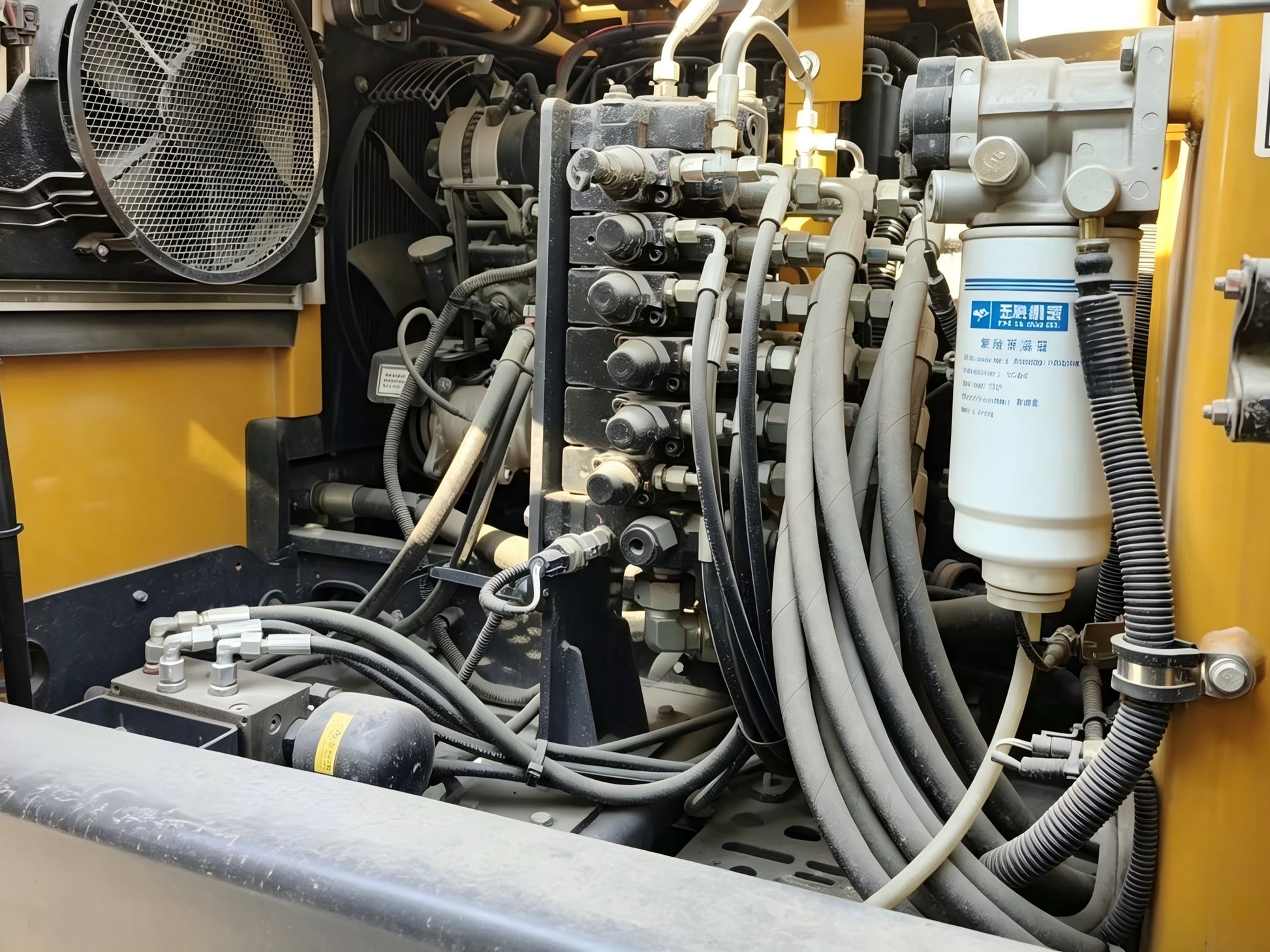

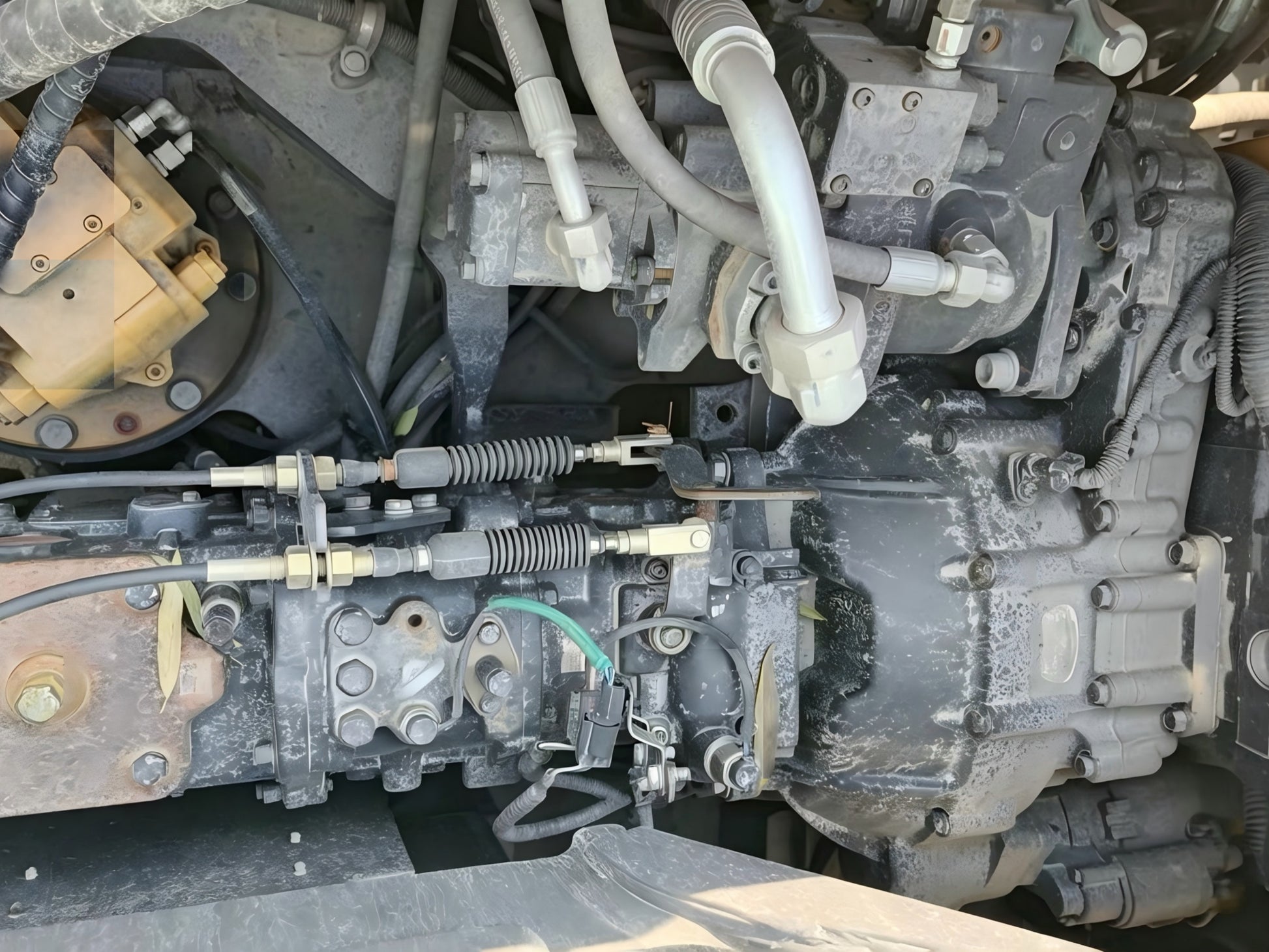

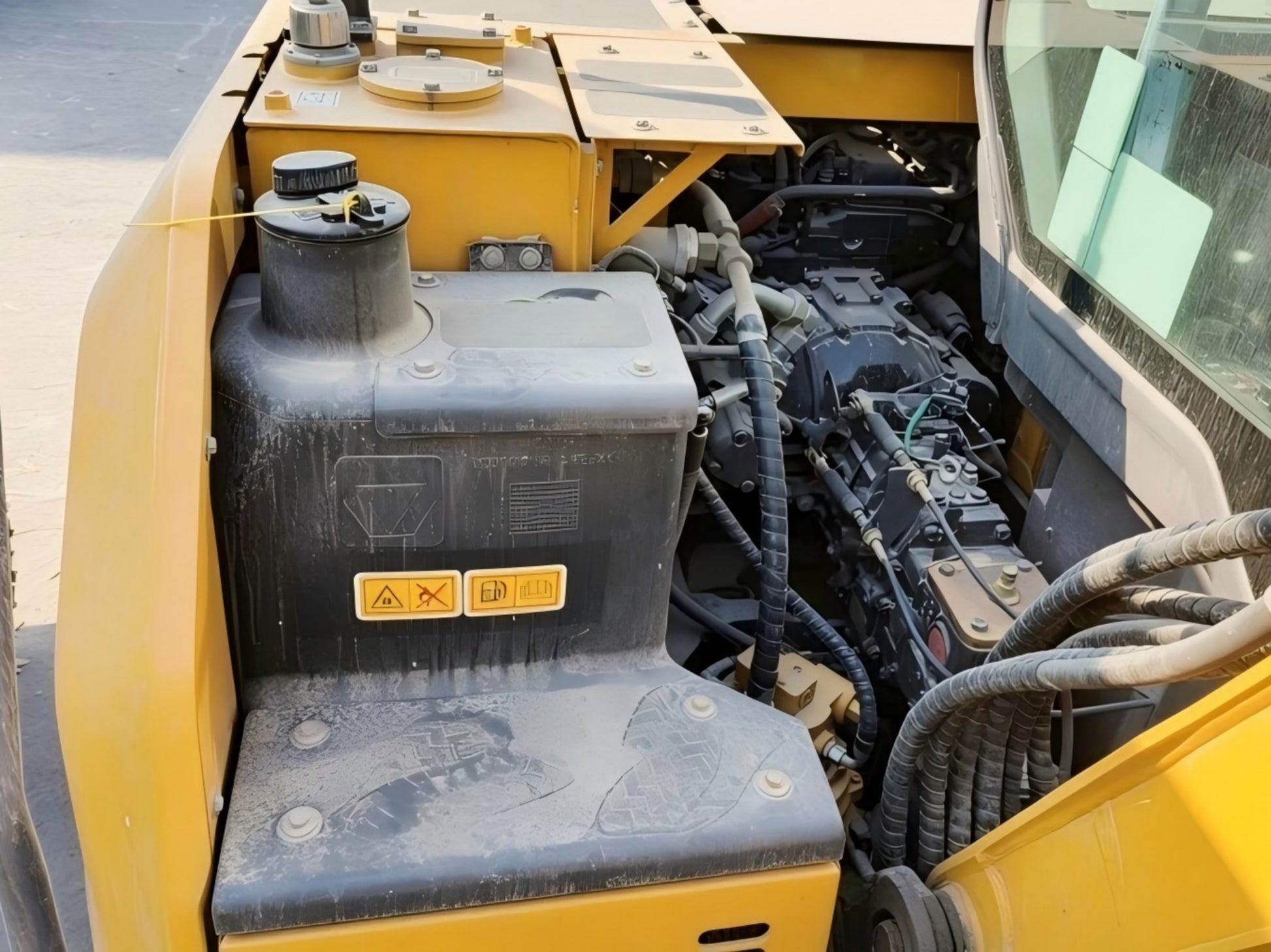

Powerful Engine & Hydraulic System
A high-torque engine and responsive hydraulic system deliver dependable performance in demanding operating conditions.
Technical Specifications
| System | Specification | Standard Type | Clamping Type |
|---|---|---|---|

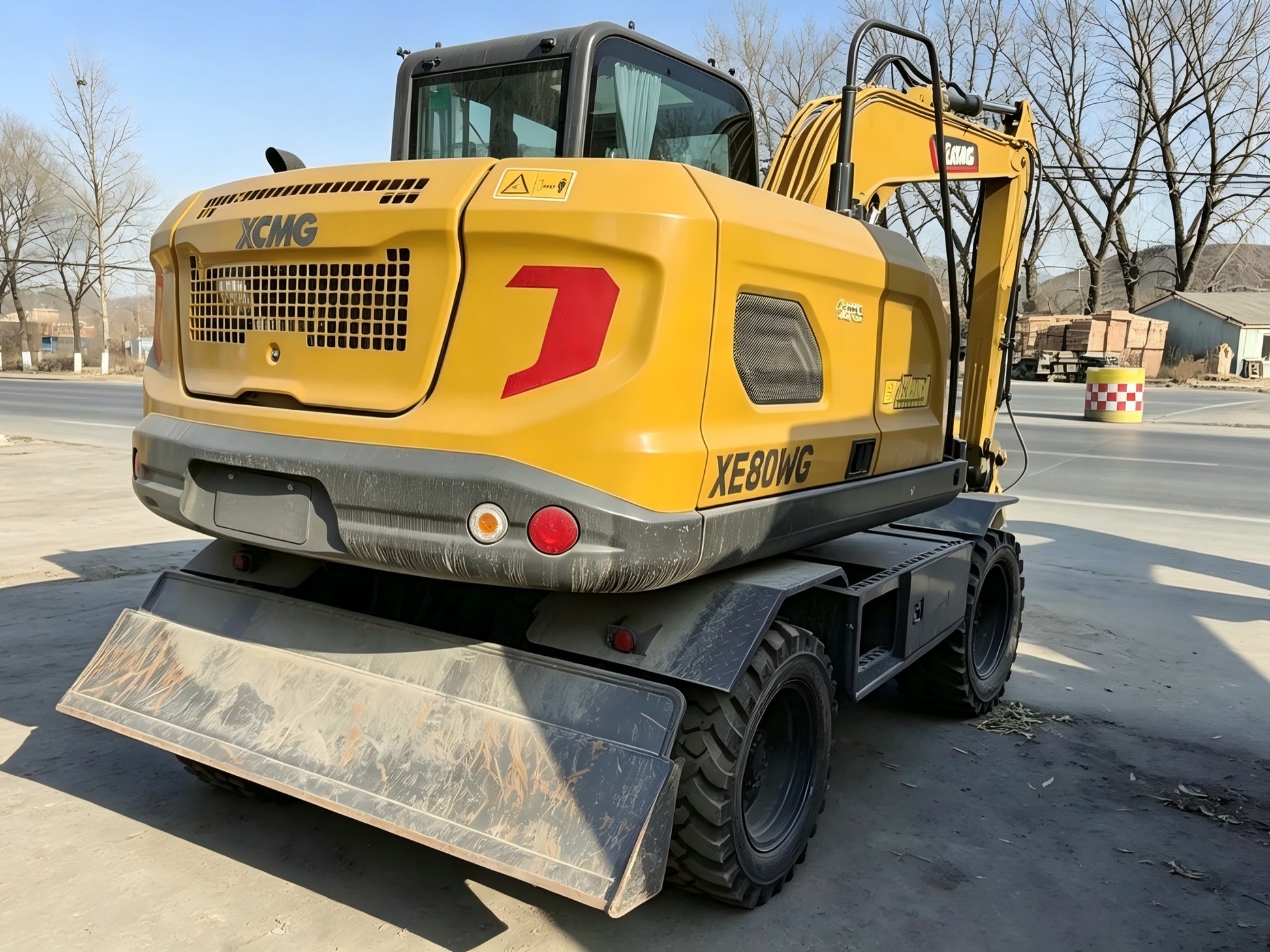

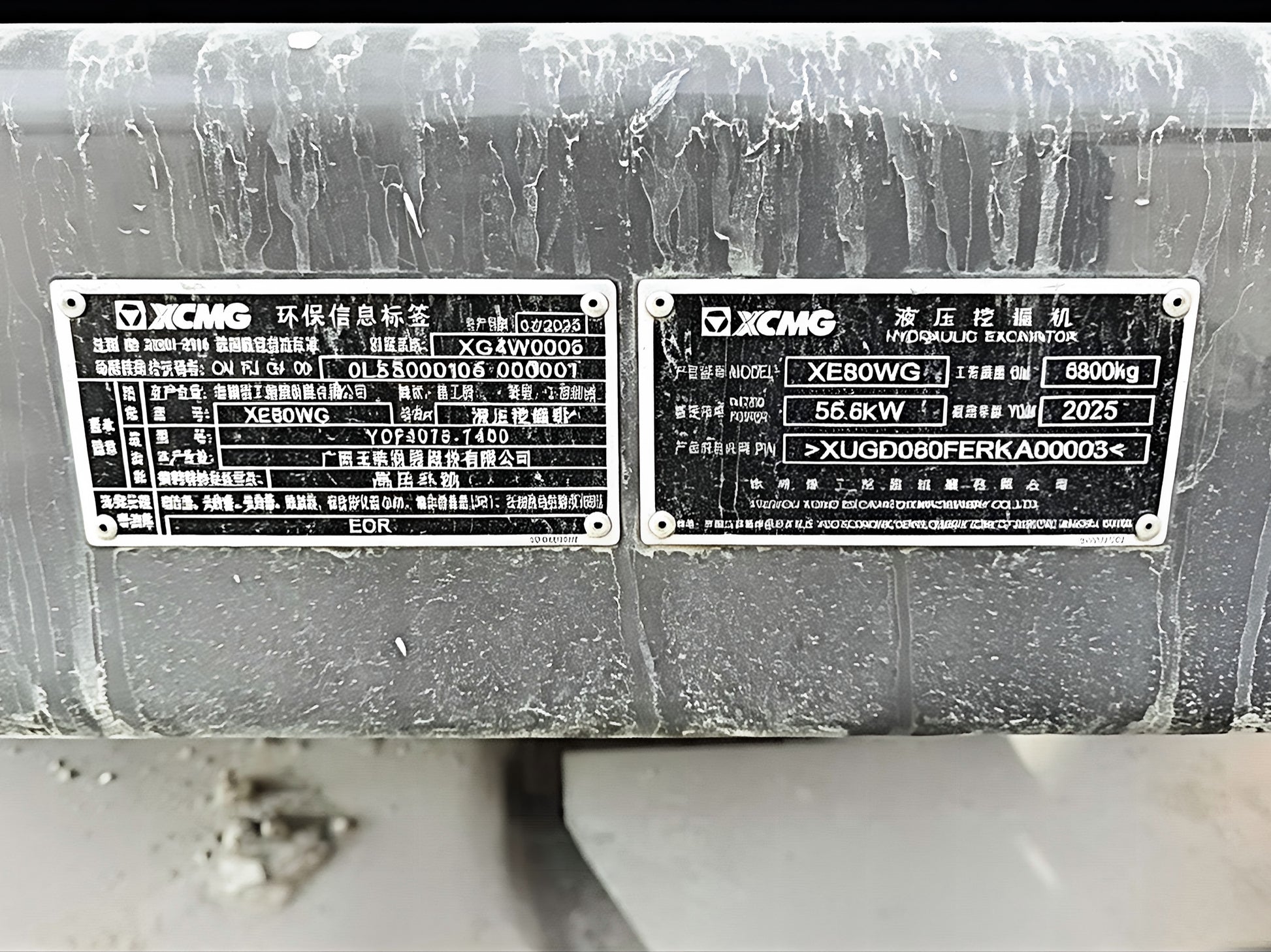

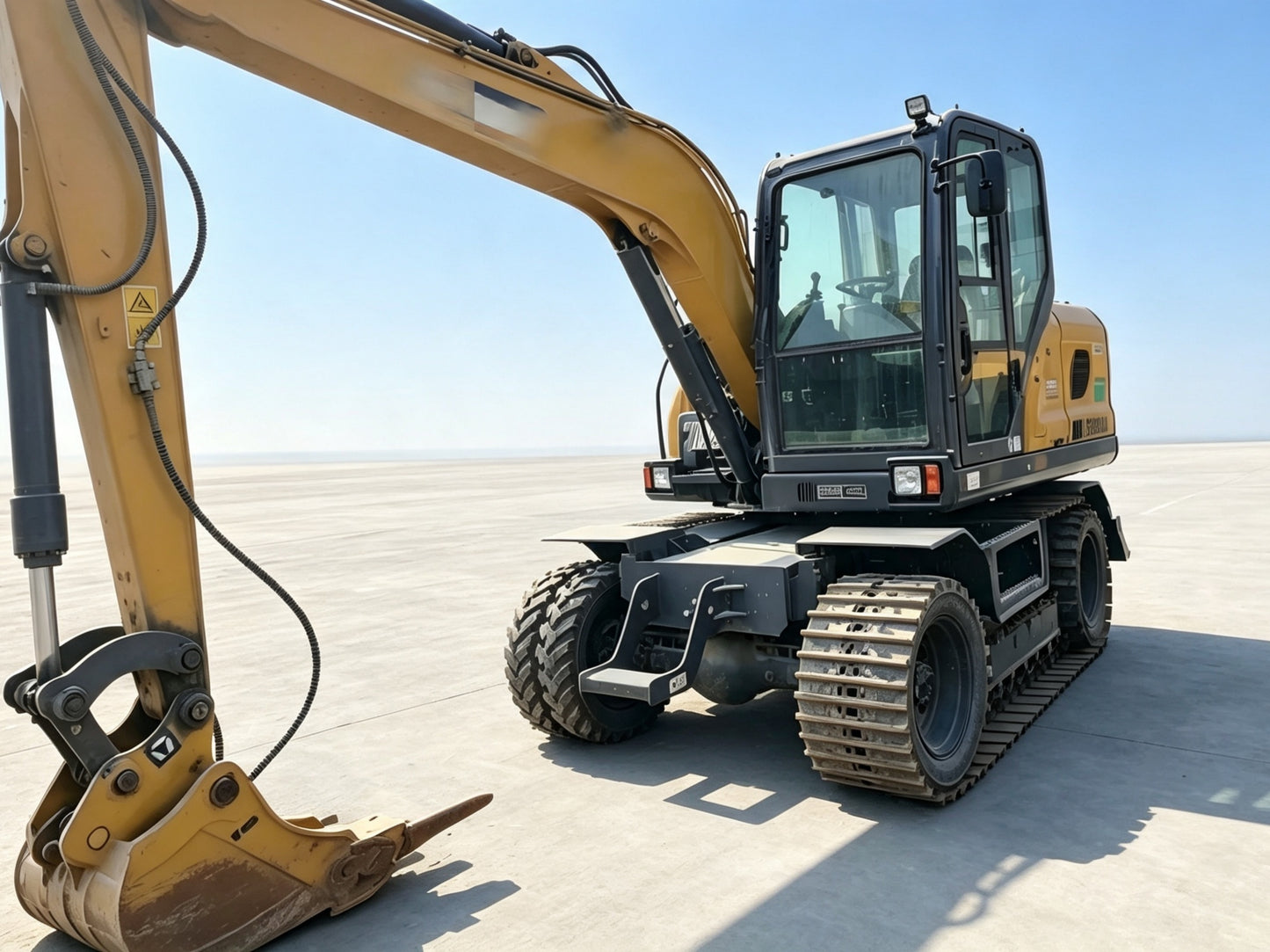

| Model | XE80WG | ||
| Operating Weight / kg | 6900 | ||

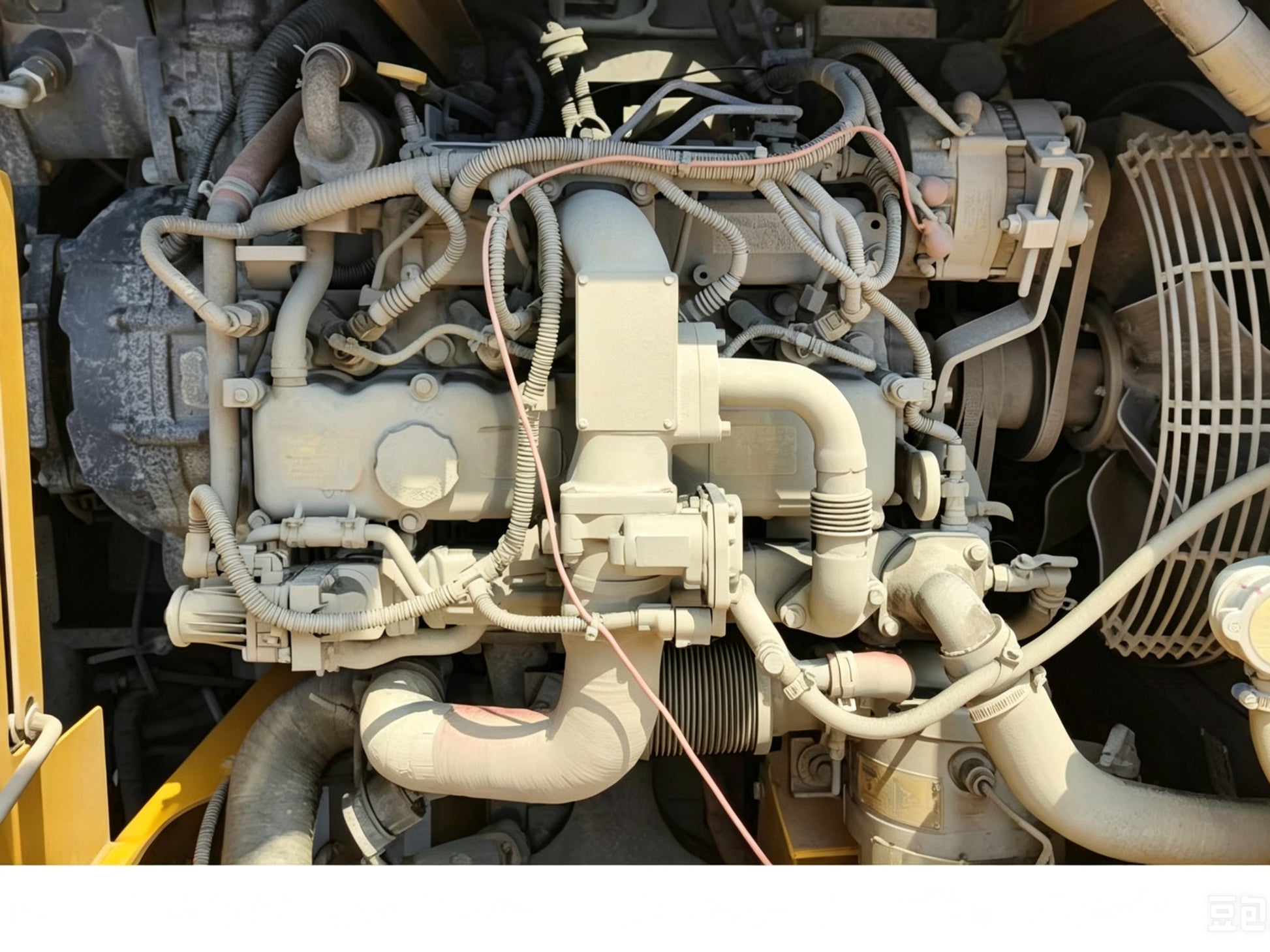

| Engine | Engine Brand / Model | Yuchai YCF3075-T480 | |
| Rated Power / Rated Speed / kW/rpm | 55.8/2200 | ||
| Direct Injection | √ | ||
| Electronic Fuel Injection | √ | ||
| 4-Stroke Engine | √ | ||
| Water-Cooled | √ | ||
| Turbocharged | √ | ||
| Air-to-Air Intercooler | √ | ||
| Stroke / mm | 103 | ||
| Bore / mm | 96 | ||
| Number of Cylinders | 4 | ||
| Maximum Torque / Speed / N·m/rpm | 310/1300–1600 | ||
| Displacement / L | 2.982 | ||

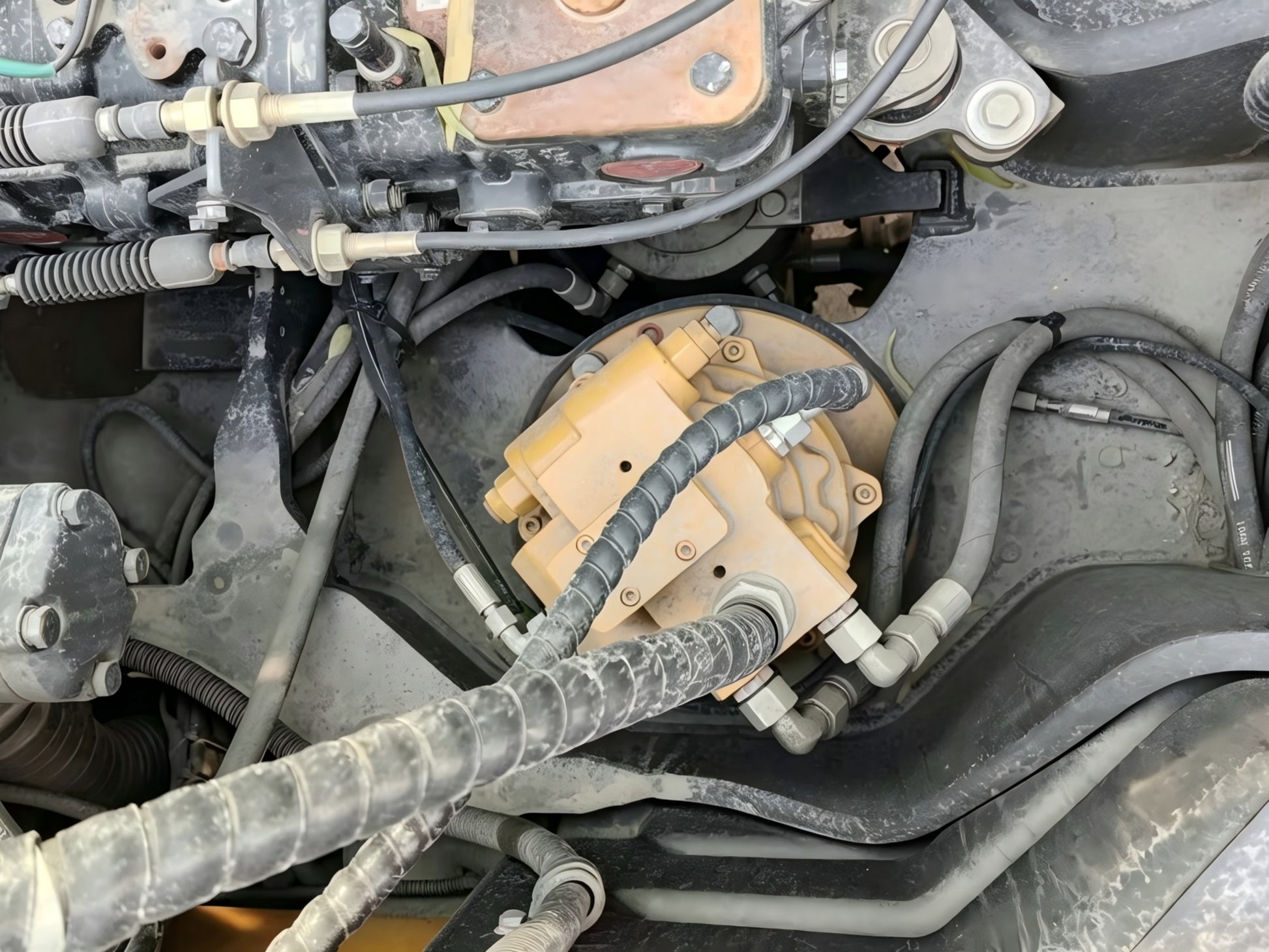

| Hydraulic System | Main Pump | Variable-Displacement Pump | |
| Maximum Main System Flow / L/min | 144 | ||
| Main System Pressure / MPa | 25 | ||
| Main System Boost Pressure / MPa | 25 | ||
| Pilot System Pressure / MPa | 3.2 | ||
| Swing System Pressure / MPa | 23 | ||
| Performance | Travel Speed (High / Low) / km/h | 30 / 3 | |
| Swing Speed / rpm | 9 | ||
| Maximum Swing Torque / kN·m | 14.9 | ||
| Gradeability | 35° (70%) | ||
| Bucket Digging Force (ISO) / kN | 36 | ||
| Arm Digging Force (ISO) / kN | 24 | ||
| Maximum Drawbar Pull / kN | 42 | ||
| Fluid Capacities | Fuel Tank Capacity / L | 125 | |
| Hydraulic Oil Tank Capacity / L | 90 | ||
| Overall Dimensions | Overall Height (A) | 3060 | 3060 |
| Overall Length (B) | 6365 | 6365 | |
| Overall Width (C) | 2130 | 2130 | |
| Upperstructure Width (D) | 2070 | 2070 | |
| Chassis Width (E) | 2070 | 2070 | |
| Wheel Tread (F) | 1608 | 1608 | |
| Distance from Front Axle to Swing Center (G) | 1400 | 1400 | |
| Wheelbase (H) | 2400 | 2400 | |
| Counterweight Ground Clearance (I) | 1048 | 1048 | |
| Minimum Ground Clearance (J) | 290 | 290 | |
| Tail Swing Radius (K) | 1970 | 1970 | |
| Dozer Blade Height (L) | 500 | 500 | |
| Engine Hood Height (M) | 2028 | 2028 | |
| Working Range | Maximum Digging Radius (a) | 6550 | 6550 |
| Maximum Digging Height (b) | 6950 | 6950 | |
| Maximum Dumping Height (c) | 5090 | 5090 | |
| Maximum Digging Depth (d) | 3630 | 3630 | |
| Minimum Swing Radius (e) | 2110 | 2110 | |
| Maximum Dozer Blade Lifting Height (f) | 470 | 470 | |
| Maximum Dozer Blade Cutting Depth (g) | 120 | 120 |
WHY CHOOSE THIS EQUIPMENT
Product Advantages
Practical advantages selected for demanding international operations.
02
High-Efficiency Earthmoving
Optimized power and hydraulic matching supports fast working cycles, precise control and productive daily output.
03
Reinforced Structure & Stability
Heavy-duty structural components and a stable undercarriage are designed to withstand intensive digging, loading and site work.
04

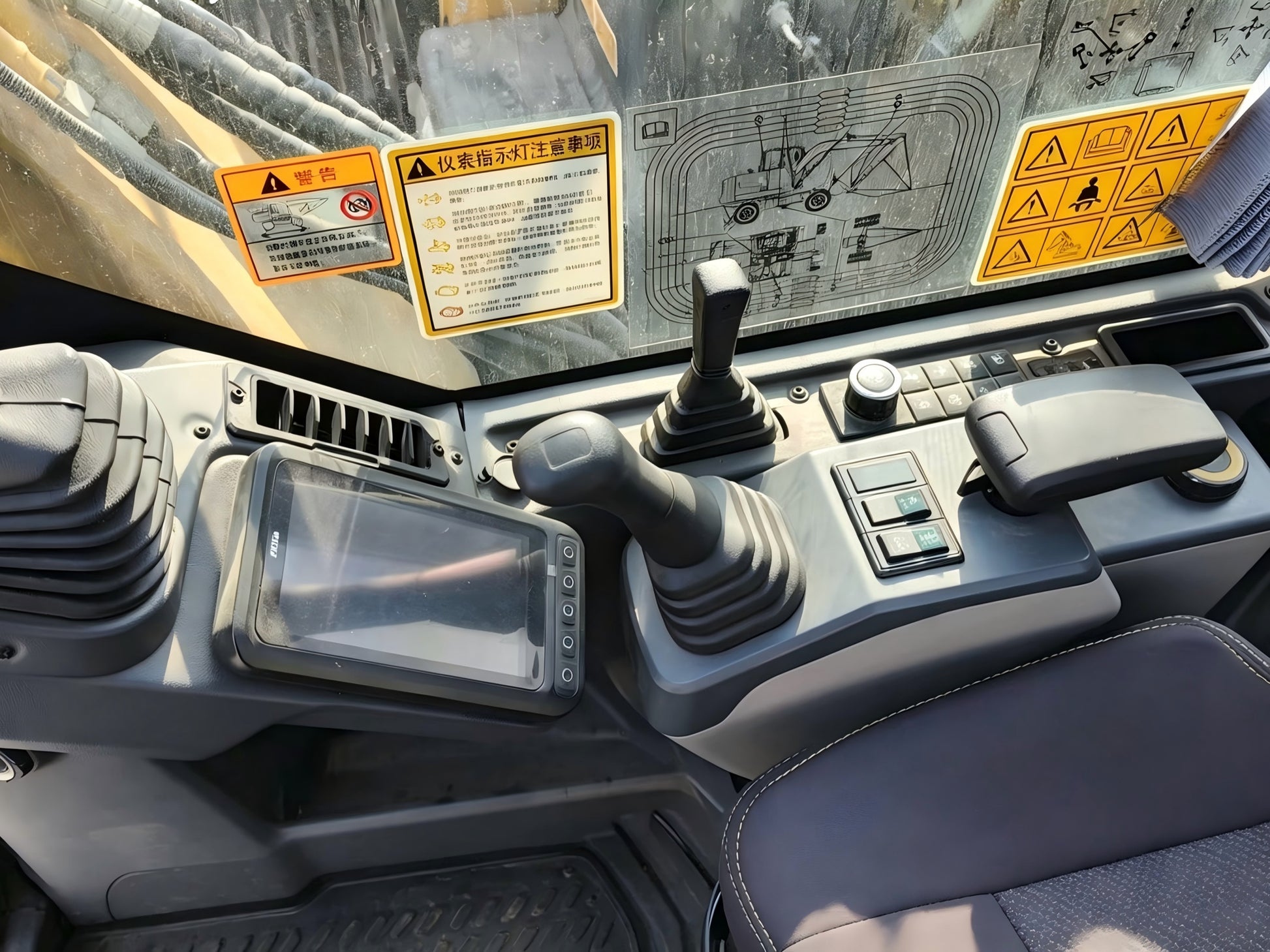

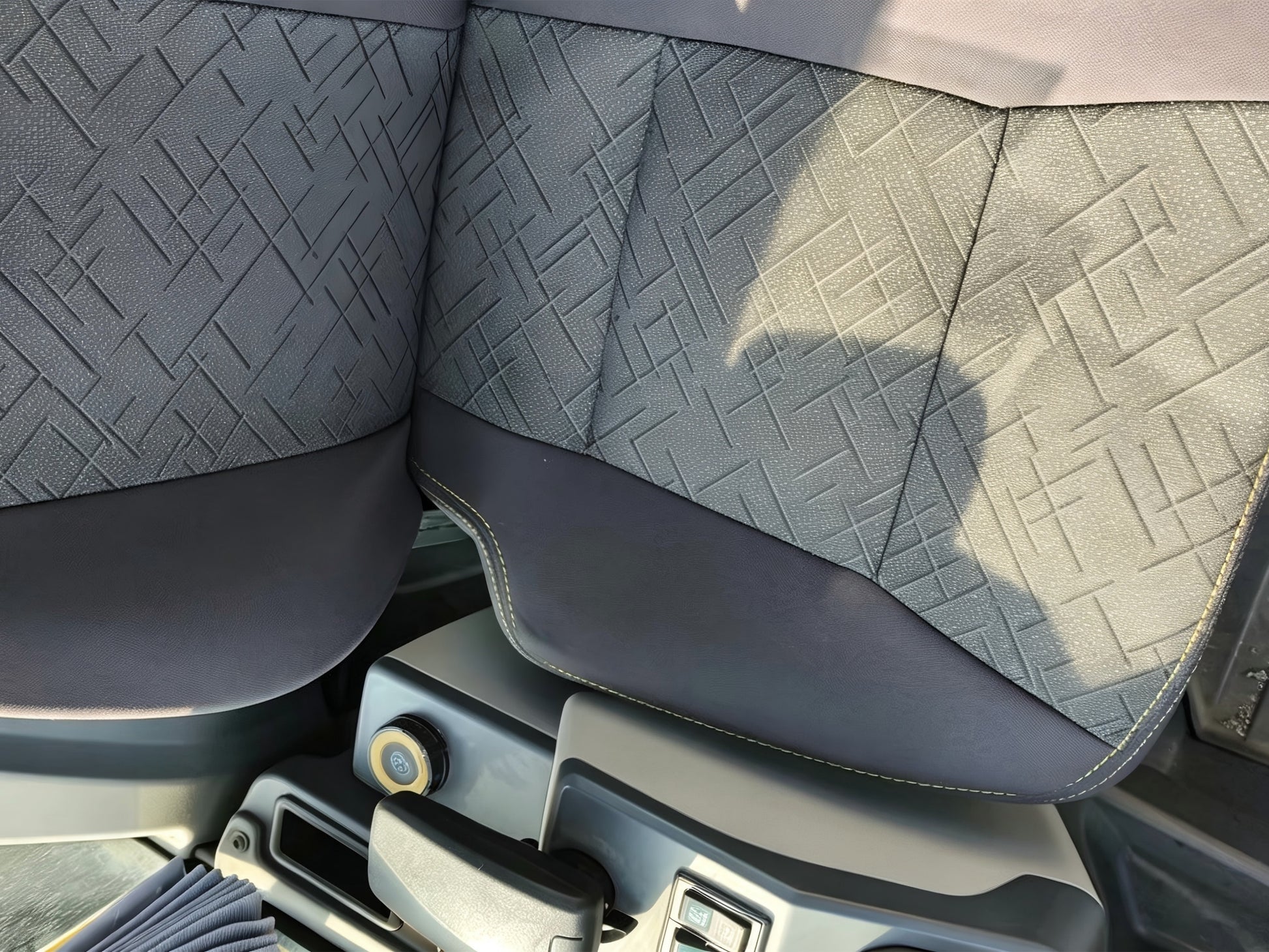

Operator Comfort & Easy Maintenance
An ergonomic cab, clear visibility and accessible service points support safer operation and straightforward maintenance.
