01
Powerful Engine & Hydraulic System
A high-torque engine and responsive hydraulic system deliver dependable performance in demanding operating conditions.
Technical Specifications
| System | Specification | Unit | Value |
|---|---|---|---|
| General | Model | XE490DK | |
| Operating Weight | kg | 59500 | |
| Bucket Capacity | m³ | 3.6–3.8 | |

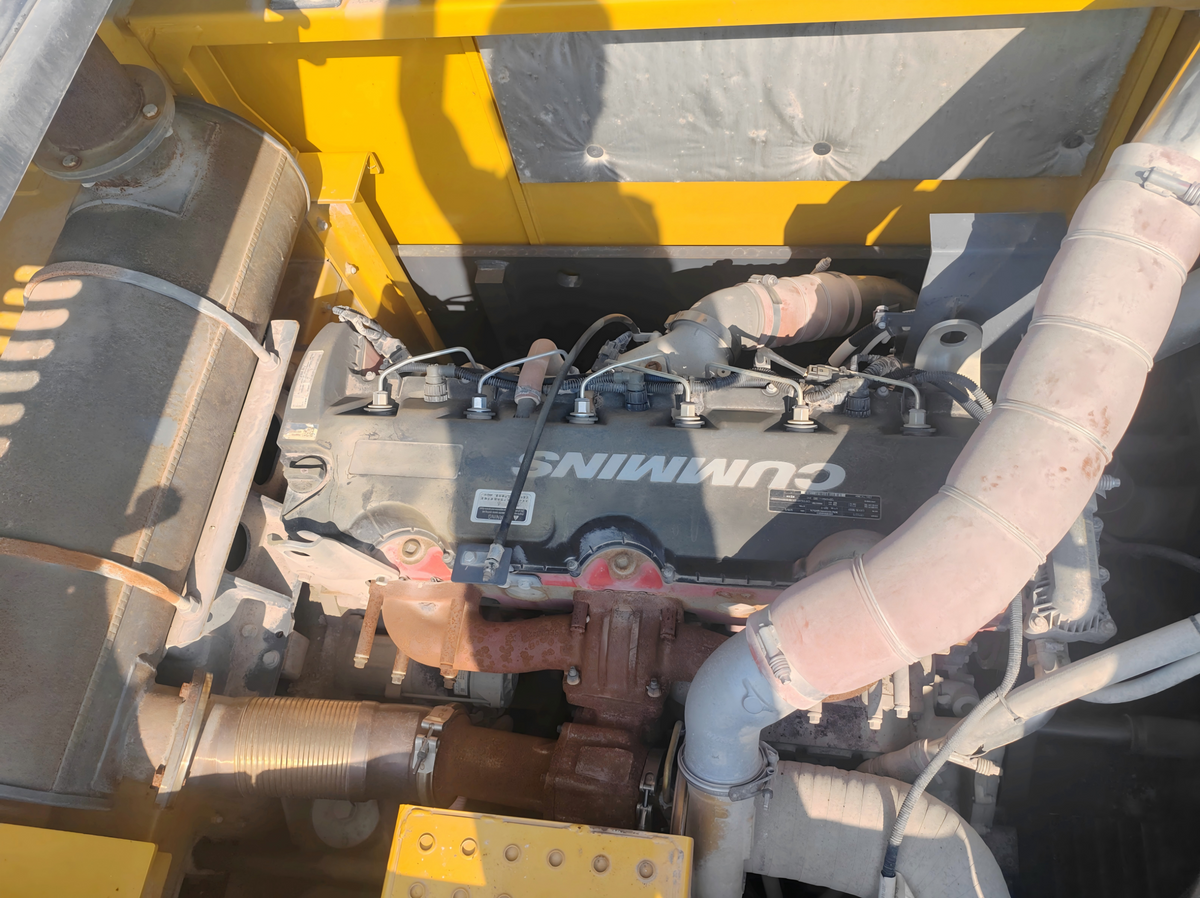

| Engine | Engine Model | 康明斯 QSX12 | |
| Electronic Fuel Injection | √ | ||
| 4-Stroke Engine | √ | ||
| Water-Cooled | √ | ||
| Turbocharged | √ | ||
| Air-to-Air Intercooler | √ | ||
| Number of Cylinders | 6 | ||
| Engine Rated Power | kW/rpm | 336/1800 | |
| Maximum Torque / Speed | N·m/rpm | 1898/1200~1600 | |
| Displacement | L | 11.8 | |
| Performance | Travel Speed | km/h | 5.4/3.2 |
| Swing Speed | rpm | 9 | |
| Gradeability | ° | 35 | |
| Ground Pressure | kPa | 92 | |
| Bucket Digging Force | kN | 330 | |
| Arm Digging Force | kN | 276 | |
| Maximum Drawbar Pull | kN | 370 | |

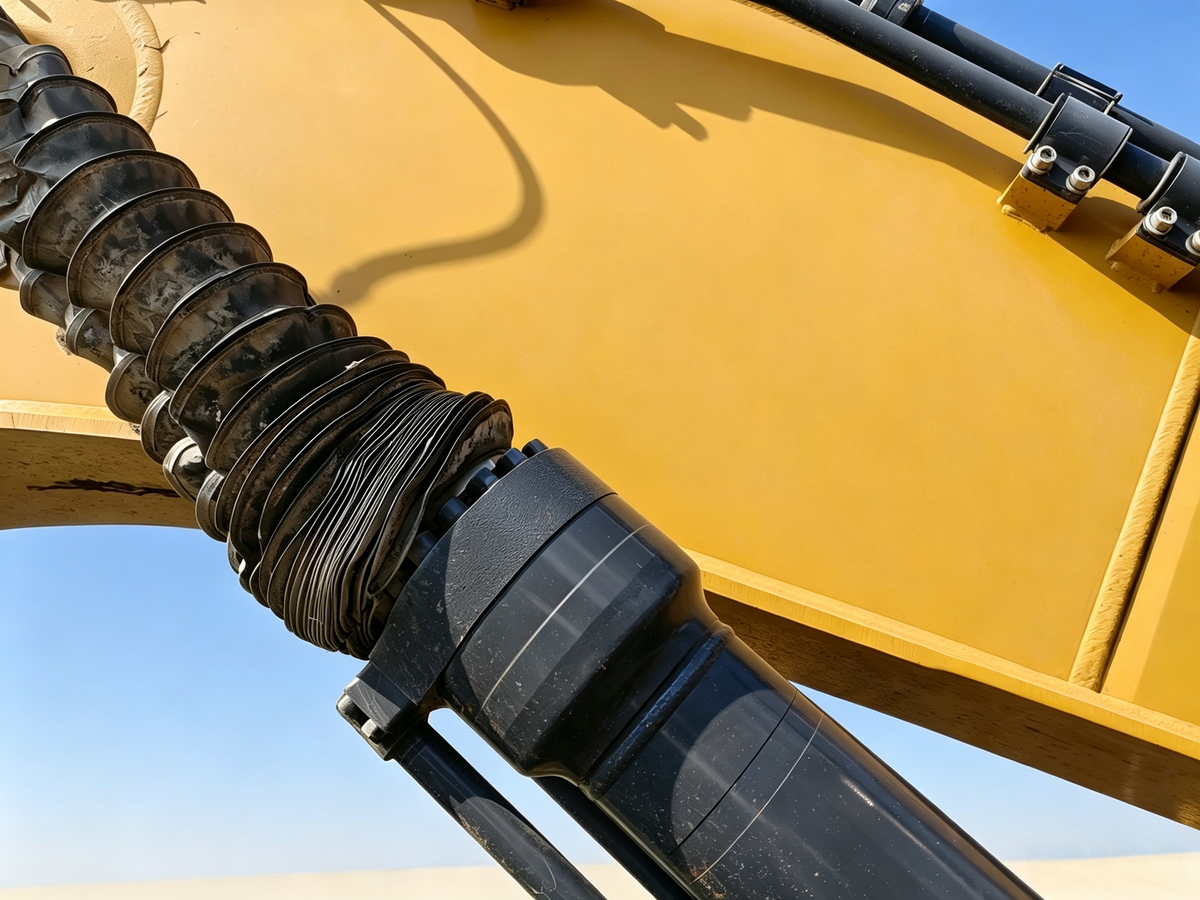

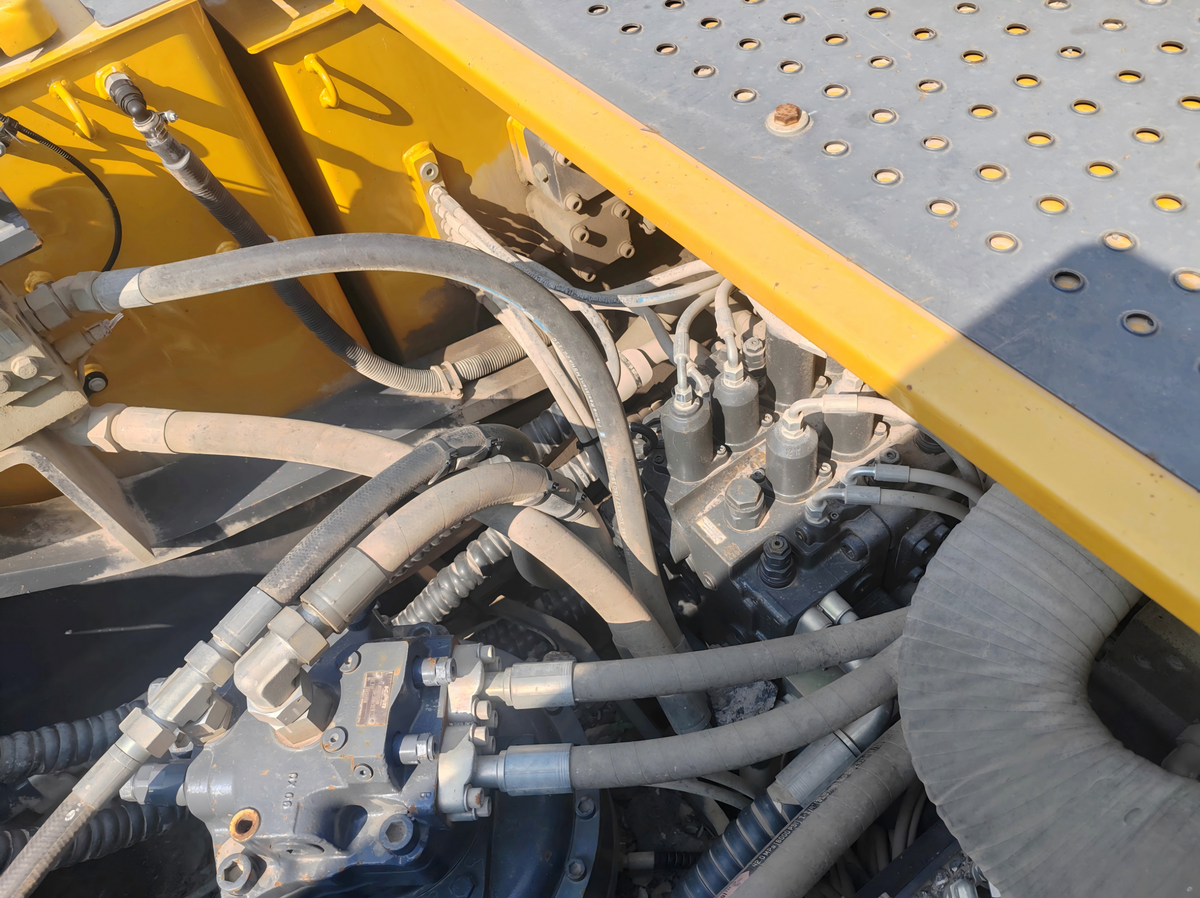

| Hydraulic System | Main Pump | Two Piston Pumps | |
| Rated Main Pump Flow | L/min | 2×420 | |
| Main Relief Valve Pressure | MPa | 34.3/37 | |
| Travel System Pressure | MPa | 34 | |
| Swing System Pressure | MPa | 31 | |
| Pilot System Pressure | MPa | 3.9 | |
| Fluid Capacities | Fuel Tank Capacity | L | 650 |
| Hydraulic Oil Tank Capacity | L | 430 | |
| Engine Oil Capacity | L | 36 | |
| Overall Dimensions | Overall Length (A) | mm | 11870 |
| Overall Width (B) | mm | 3572 | |
| Overall Height (C) | mm | 4100 | |
| Upperstructure Width (D) | mm | 3095 | |
| Track Length (E) | mm | 5470 | |
| Overall Chassis Width (F) | mm | 3572 | |
| Track Shoe Width (G) | mm | 600 | |
| Track Wheelbase (H) | mm | 4415 | |
| Track Gauge (I) | mm | 2740 | |
| Counterweight Ground Clearance (J) | mm | 1359 | |
| Minimum Ground Clearance (K) | mm | 518 | |
| Minimum Tail Swing Radius (L) | mm | 3920 | |
| Track Height (M) | mm | 1225 | |
| Working Range | L1 Maximum breaking height | mm | 11490 |
| L2 Maximum breaking depth | mm | 8210 | |
| L3 Maximum breaking radius | mm | 12440 | |
| L4 Maximum breaking height above ground | mm | 2229 | |
| L5 Maximum ground‑level breaking radius | mm | 10425 | |
| L6 Minimum ground‑level breaking radius | mm | 6845 | |
| Standard Equipment | Boom Length | mm | 6900 |
| Arm Length | mm | 2550 | |
| Bucket Capacity | m³ | - |
WHY CHOOSE THIS EQUIPMENT
Product Advantages
Practical advantages selected for demanding international operations.
02
High-Efficiency Earthmoving
Optimized power and hydraulic matching supports fast working cycles, precise control and productive daily output.
03
Reinforced Structure & Stability

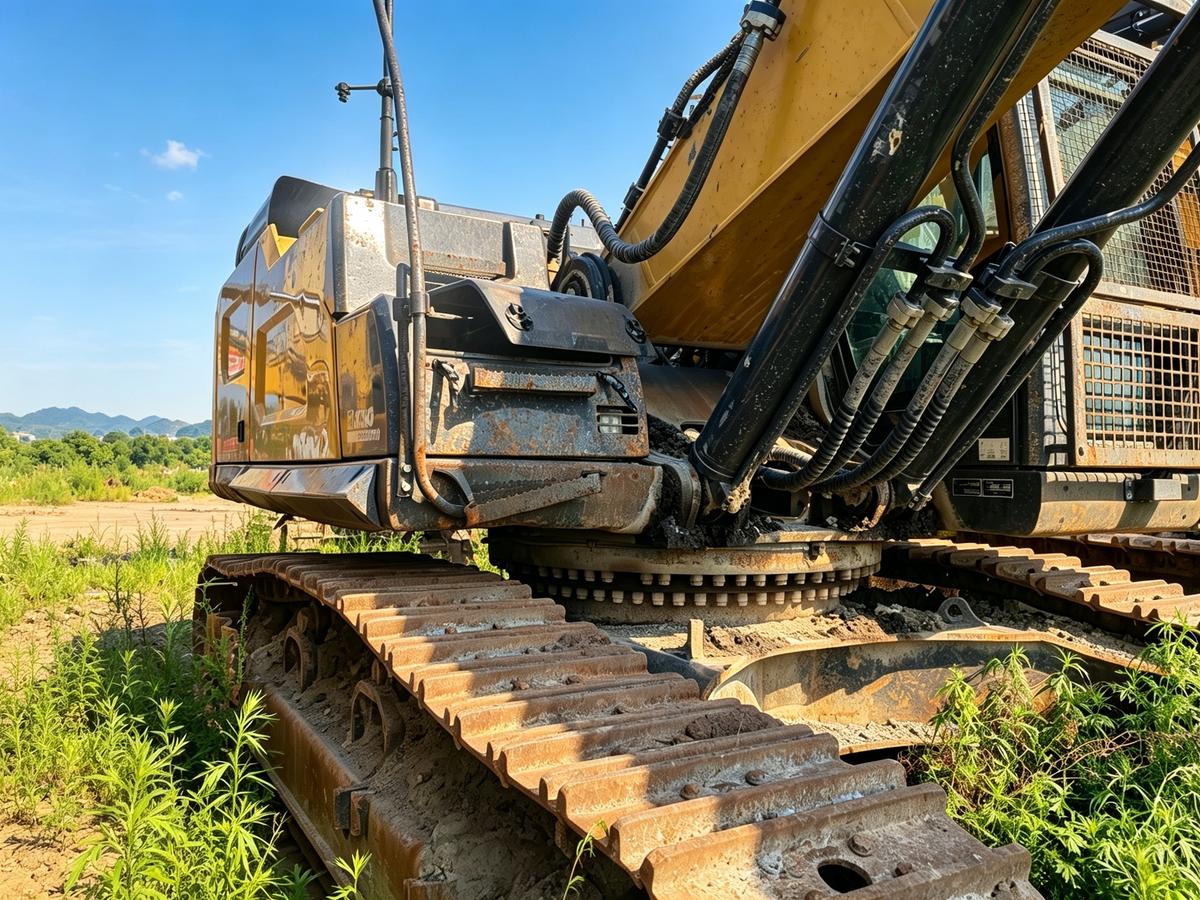

Heavy-duty structural components and a stable undercarriage are designed to withstand intensive digging, loading and site work.
04
Operator Comfort & Easy Maintenance

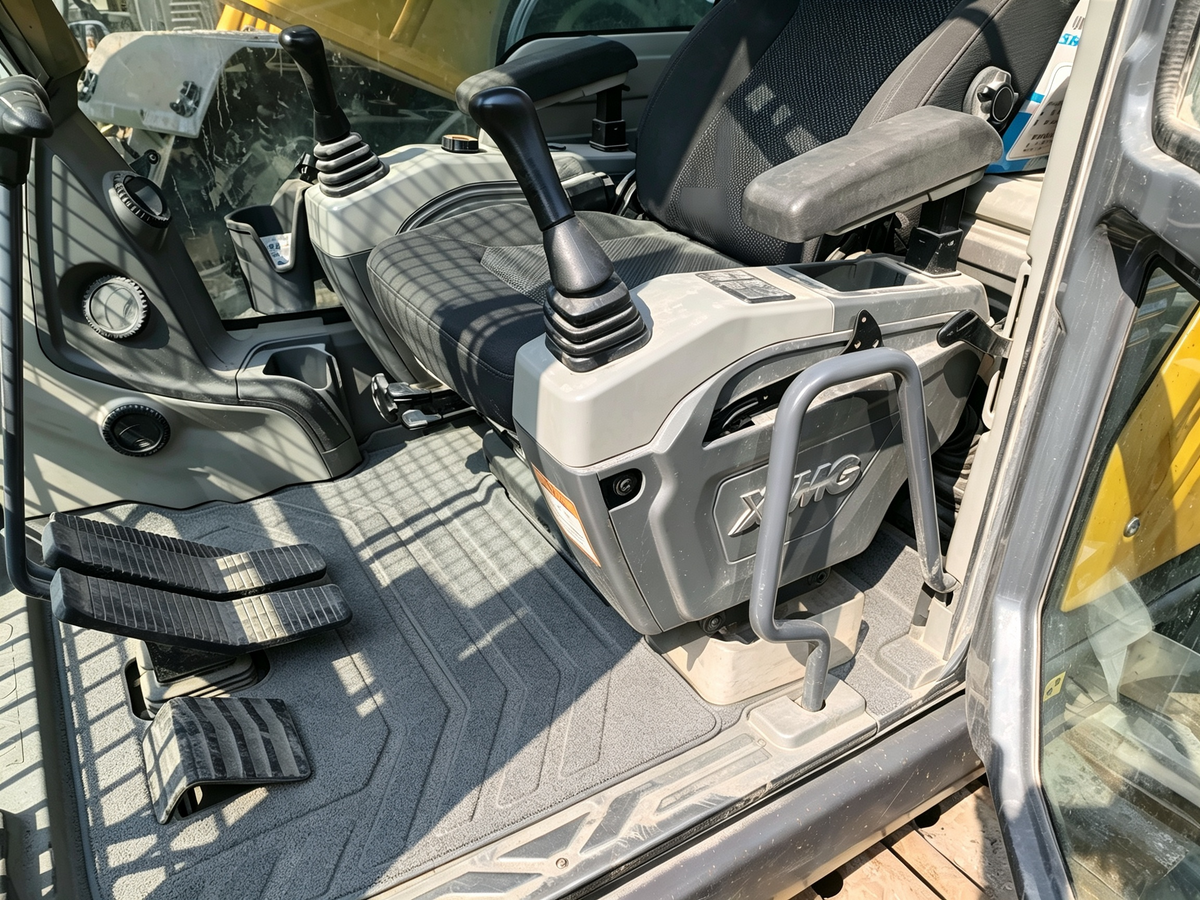

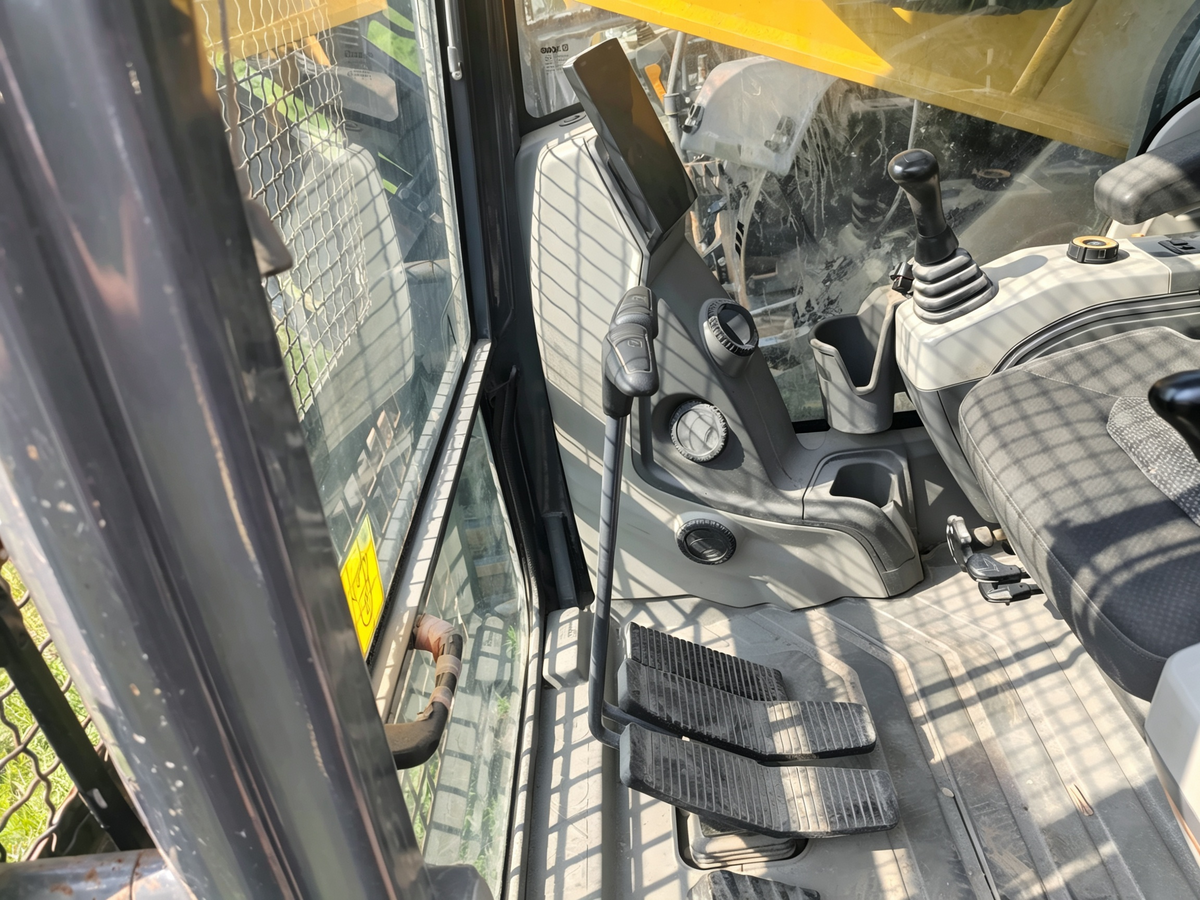

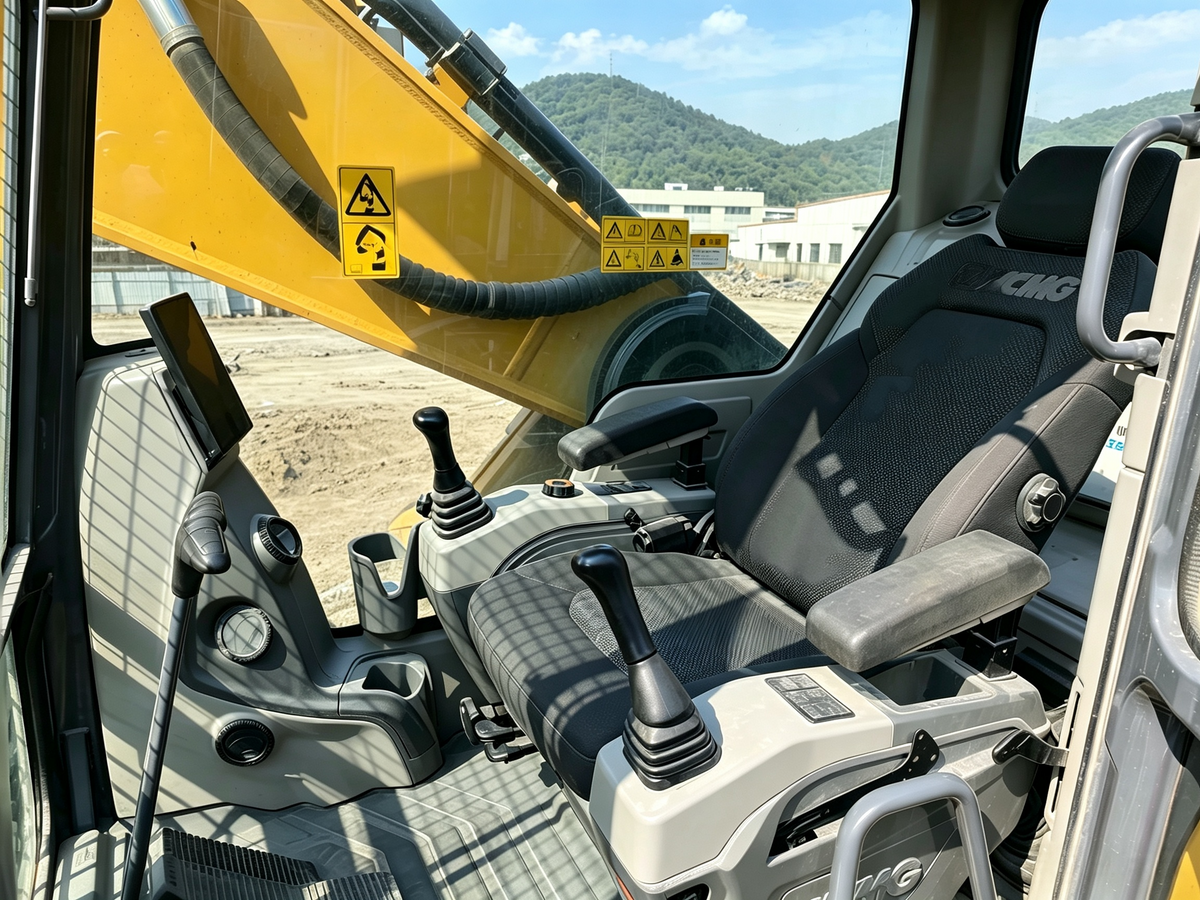

An ergonomic cab, clear visibility and accessible service points support safer operation and straightforward maintenance.
