01

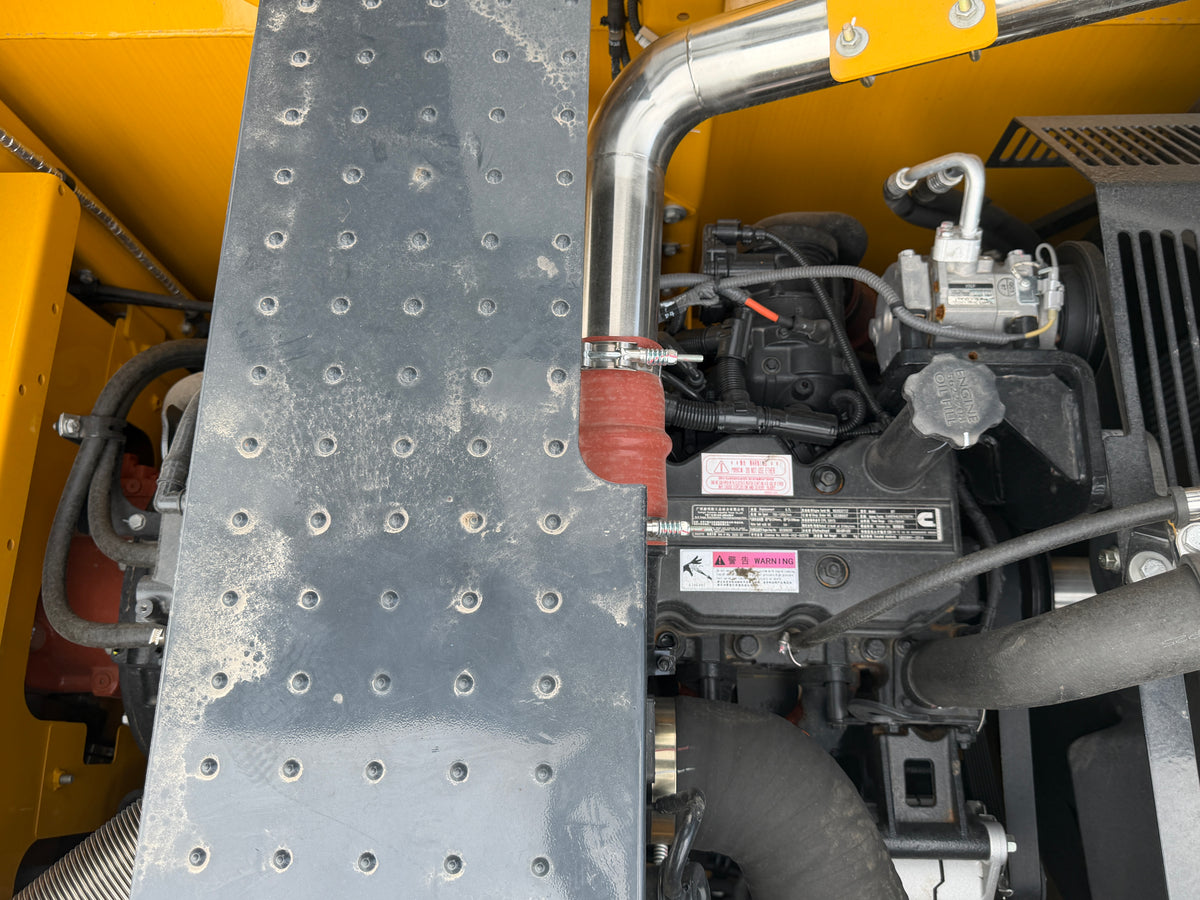

Powerful Engine & Hydraulic System
A high-torque engine and responsive hydraulic system deliver dependable performance in demanding operating conditions.
Technical Specifications
| System | Specification | Value |
|---|---|---|

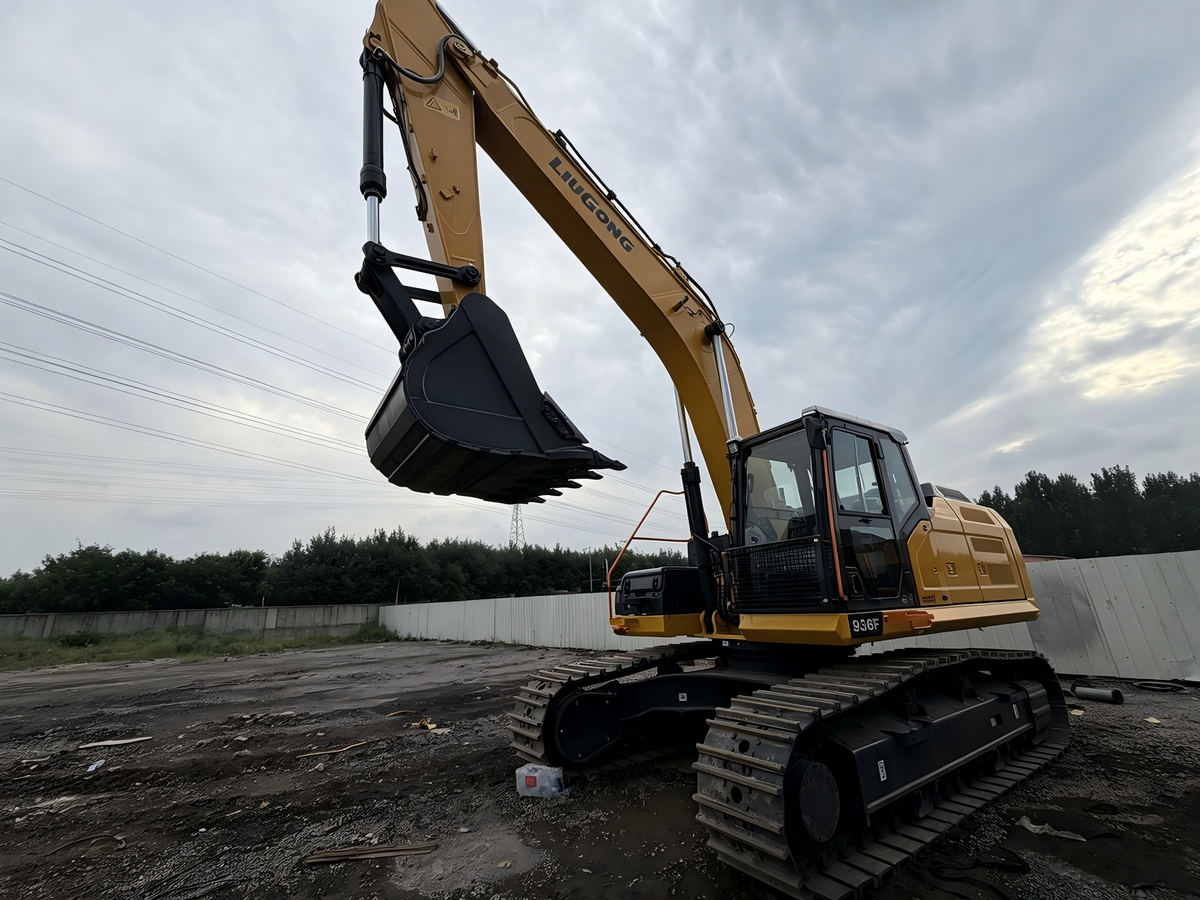

| Basic Identification | Model | CLG936FG4 |

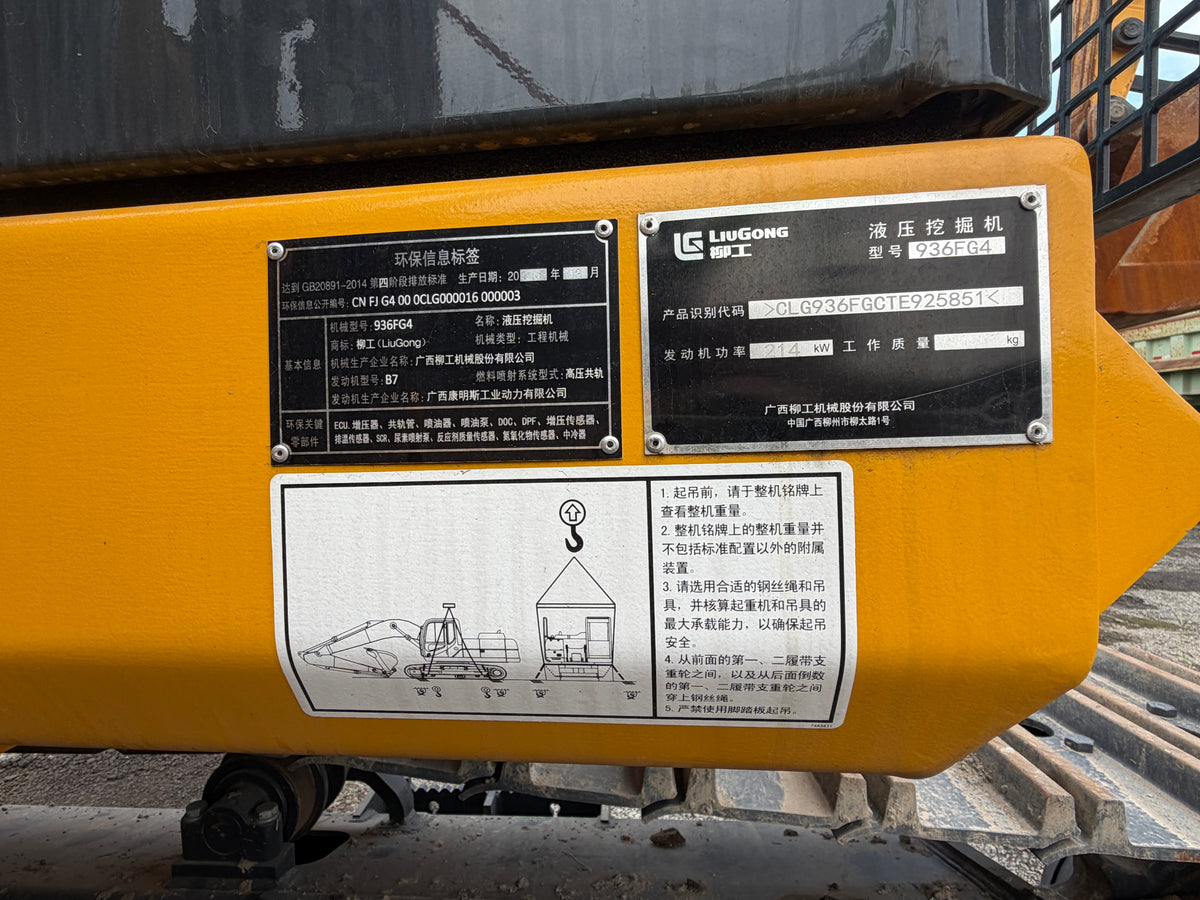

| Serial No. | CLG936FGCTE925851 | |
| Brand | LIUGONG | |
| Manufacturer | Guangxi Liugong Machinery Co., Ltd. | |
| Emission Standard | GB20891‑2014 Stage IV | |
| Engine | Engine Brand / Model | Guangxi Cummins B7 |
| Rated Power / kW | 214 | |
| Configuration | 6-cylinder Inline, Water-Cooled, Turbocharged, Air-to-Air Intercooled, Electronic High-Pressure Common Rail | |
| Fuel Tank Capacity / L | 620 | |
| DEF Tank Capacity / L | 65 | |
| Engine Oil Capacity / L | 30 | |
| Machine Weight | Operating Weight / kg | 38800 (Standard Configuration) |
| Counterweight Weight / kg | 7200 | |

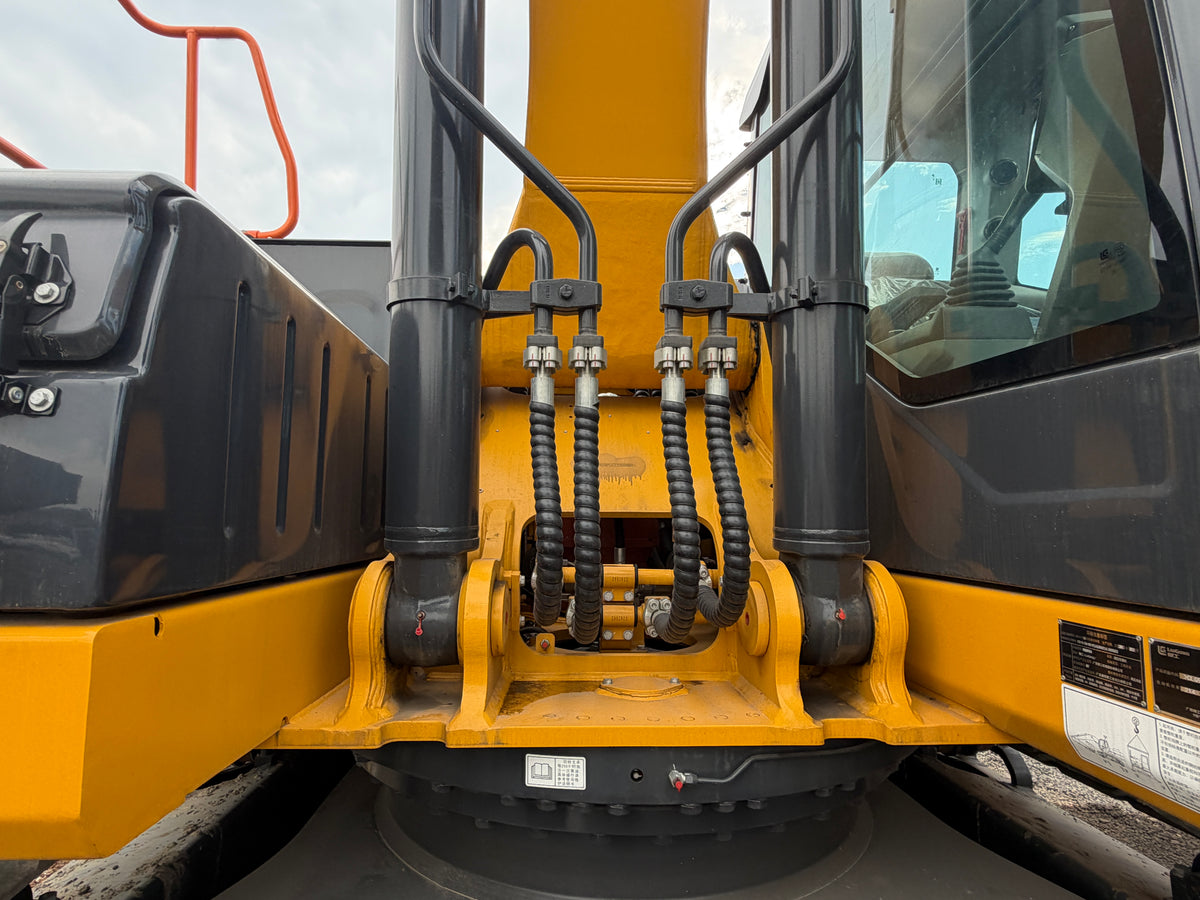

| Working Equipment | Boom Length / mm | 6400 |
| Arm Length / mm | 2900 (Standard) | |
| Bucket Capacity / m³ | 1.8 | |
| Bucket Digging Force (ISO) / kN | 220 | |
| Arm Digging Force (ISO) / kN | 196 | |
| Working Range | Maximum Digging Radius / mm | 11100 |
| Maximum Digging Depth / mm | 7340 | |
| Maximum Vertical Digging Depth / mm | 6460 | |
| Maximum Dumping Height / mm | 7200 | |
| Maximum Cutting Height / mm | 10240 | |
| Minimum Swing Radius / mm | 4465 | |
| Overall Dimensions | Overall Transport Length / mm | 11300 |
| Overall Transport Width / mm | 3190 | |
| Overall Transport Height / mm | 3800 | |

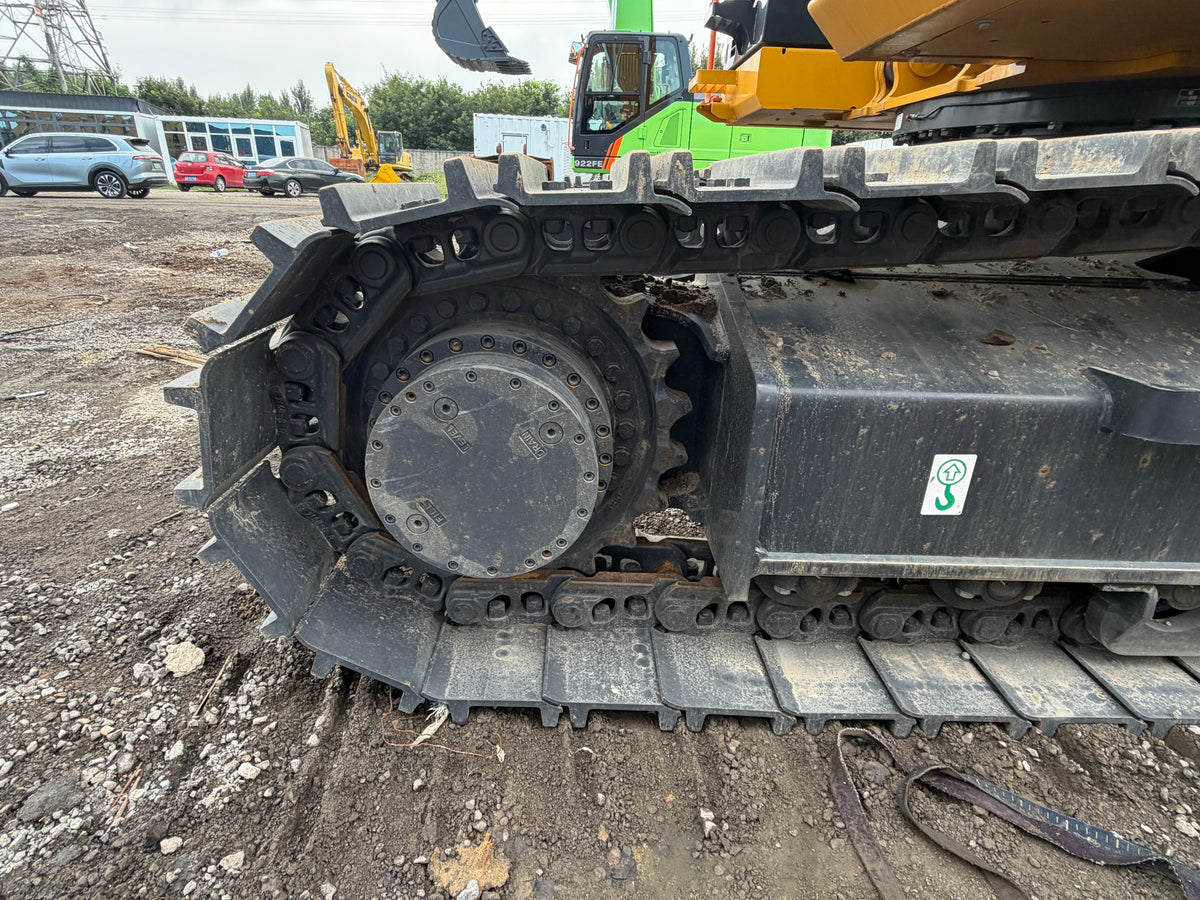

| Track Gauge / mm | 2590 | |
| Standard Track Shoe Width (G) / mm | 600 | |
| Total Track Contact Length / mm | 5070 | |
| Minimum Ground Clearance (K) / mm | 532 | |
| Rear Swing Radius / mm | 3500 | |
| Travel & Swing | Travel Speed (High / Low) / km/h | 5.5/3.4 |
| Swing Speed / rpm | 10 | |
| Gradeability | 35°(70%) | |

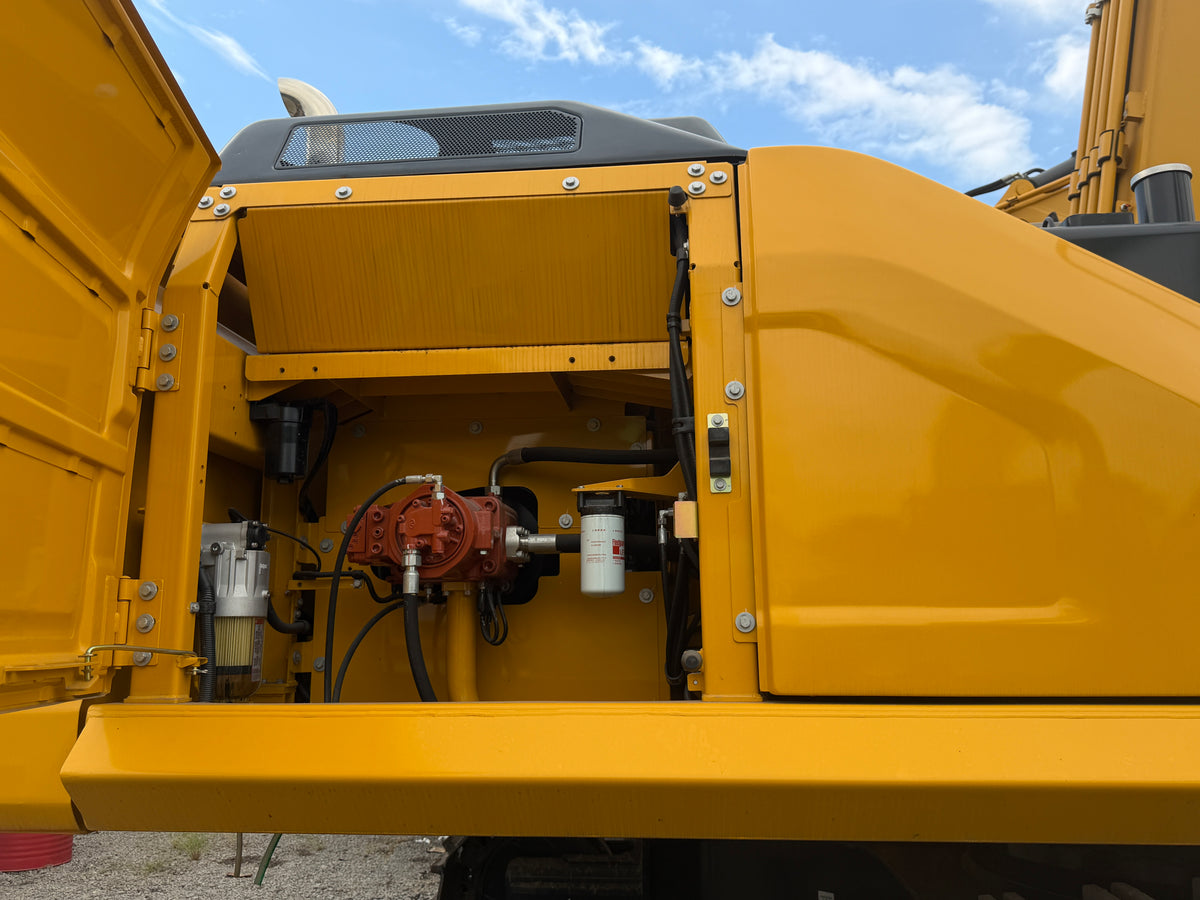

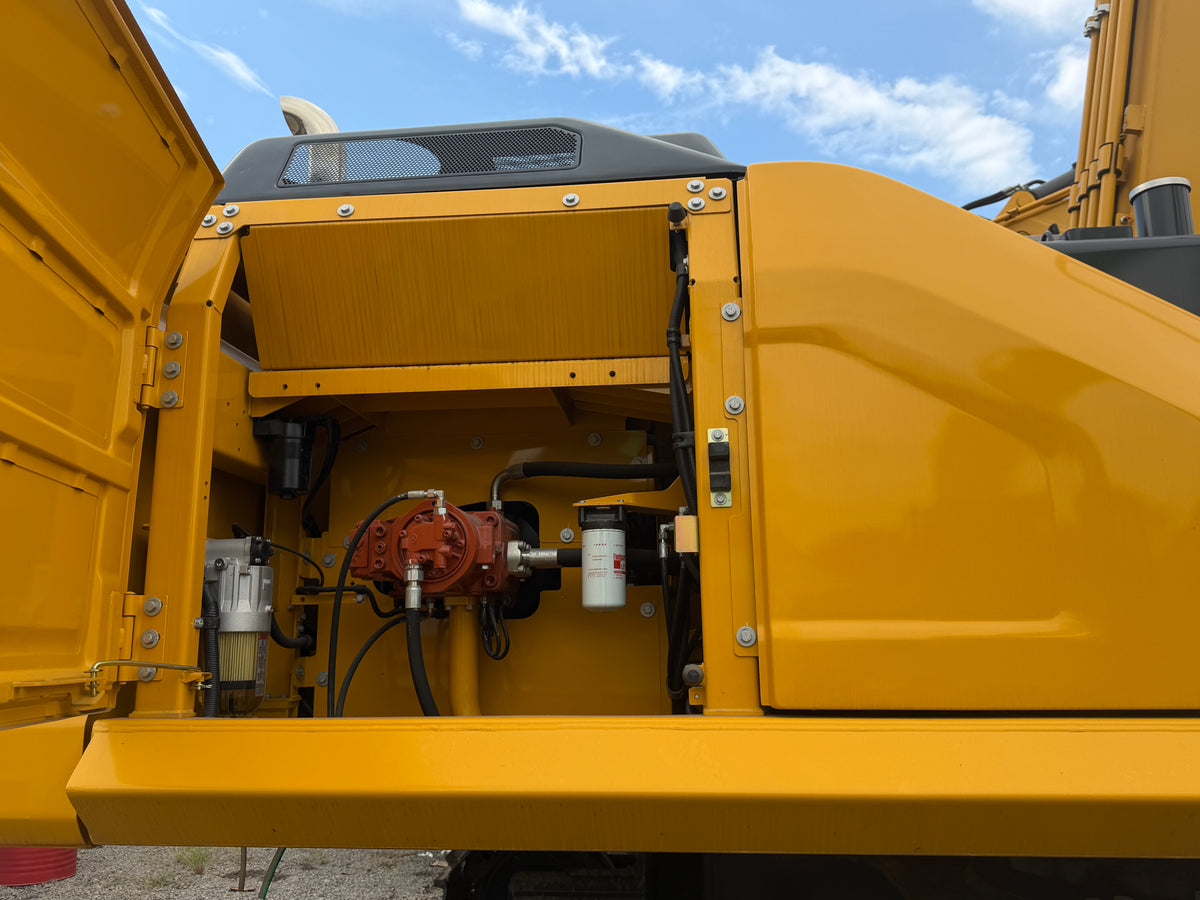

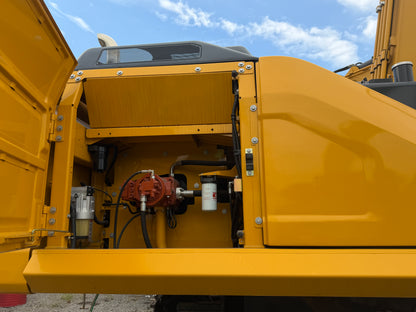

| Hydraulic System | Main Pump | Dual Variable Displacement Piston Pumps |
| Main System Pressure / MPa | 34.3 | |
| Swing Circuit Pressure / MPa | 32.4 | |
| Pilot System Pressure / MPa | 3.5~3.9 | |
| Hydraulic Oil Tank Capacity / L | 280 | |
| Total Hydraulic Oil Volume / L | 450 | |

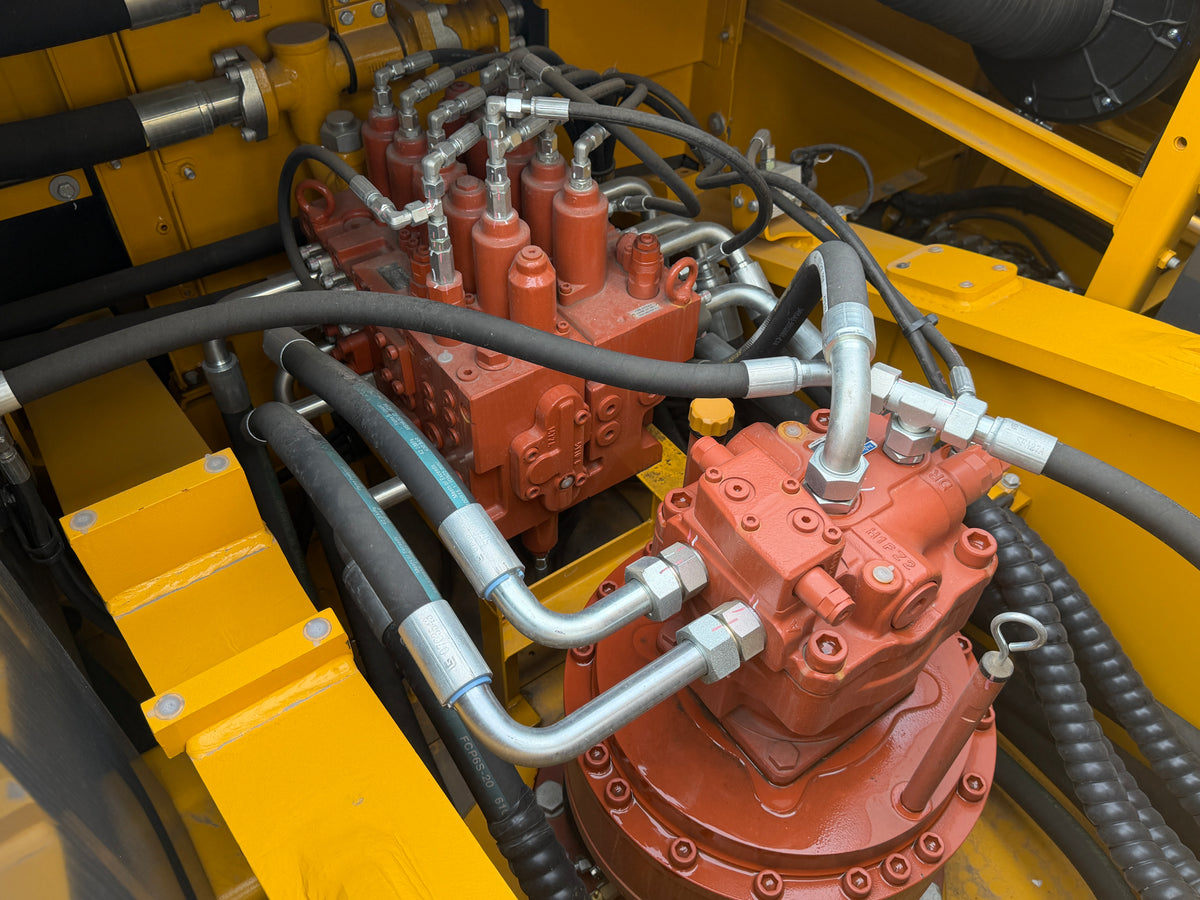

| Hydraulic Components | Kawasaki Main Control Valve, Travel Motor, Swing Motor |
WHY CHOOSE THIS EQUIPMENT
Product Advantages
Practical advantages selected for demanding international operations.
02
High-Efficiency Earthmoving
Optimized power and hydraulic matching supports fast working cycles, precise control and productive daily output.
03
Reinforced Structure & Stability
Heavy-duty structural components and a stable undercarriage are designed to withstand intensive digging, loading and site work.
04
Operator Comfort & Easy Maintenance
An ergonomic cab, clear visibility and accessible service points support safer operation and straightforward maintenance.
