01
High-Torque Powertrain
A proven high-torque diesel powertrain delivers reliable pulling and climbing performance under demanding loads.
Technical Specifications
| Value | Details |
|---|---|

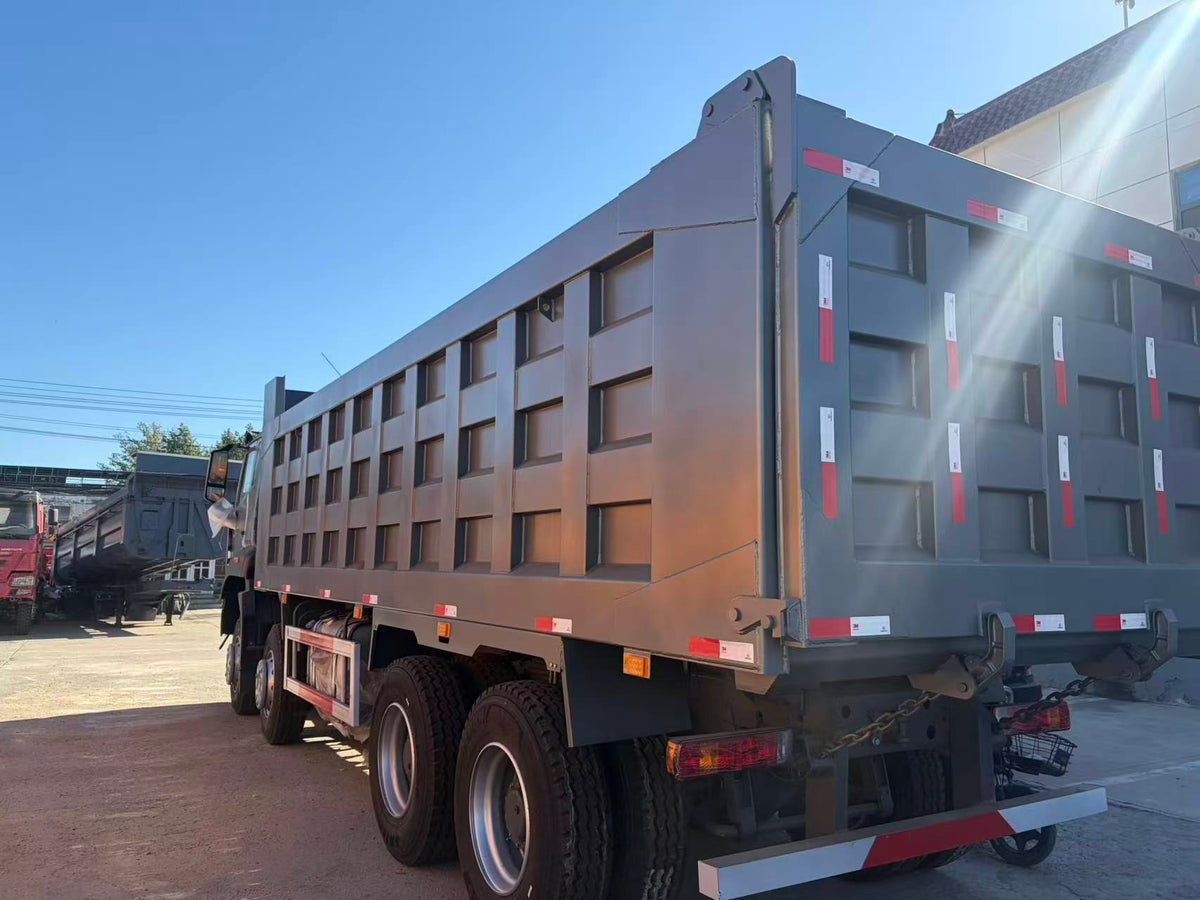

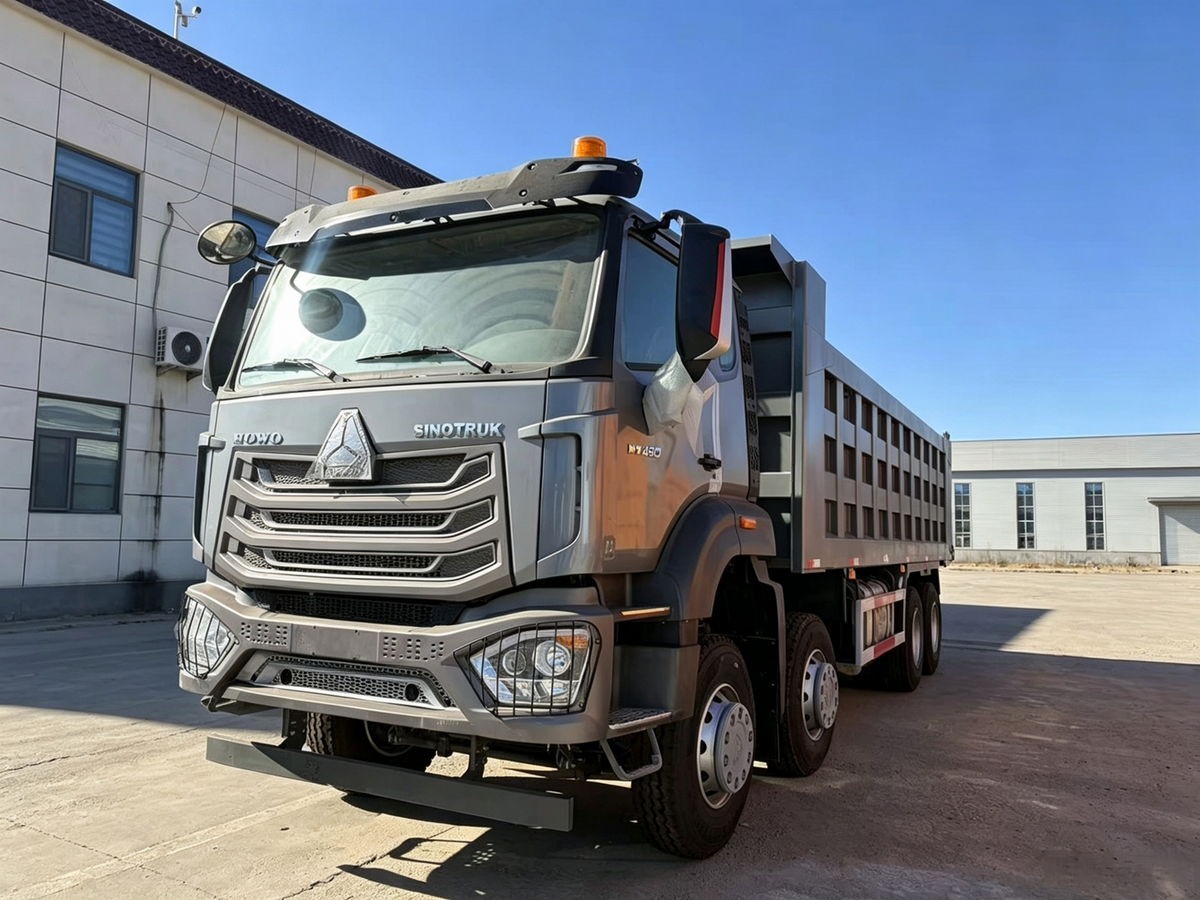

| Model Name | Howo NX 430 Concrete / Sand & Gravel Dump Truck |
| Drive Configuration | 8×4 (Front Four Rear Eight, 12 Tires) |
| Cab | H77L Single Sleeper Cab, Power Windows, Factory Air Conditioner |
| Gross Vehicle Weight | 31000kg (31 Ton Yellow Plate) |
| Curb Weight | Approx. 15.5–16.2 t (Lightweight Engineering Version) |
| Rated Load Capacity | Approx. 14.8 t |
| Wheelbase | 1800+3800+1350mm |
| Overall Dimensions (L × W × H) | 9950–10750 × 2550 × 3450 mm |
| Cargo Box Dimensions (L × W × H) | 7.2–7.6m×2.35m×1.5m, Wear-resistant Manganese Steel U-type / Rectangular Box, 8mm Bottom Plate, 6mm Side Plates |

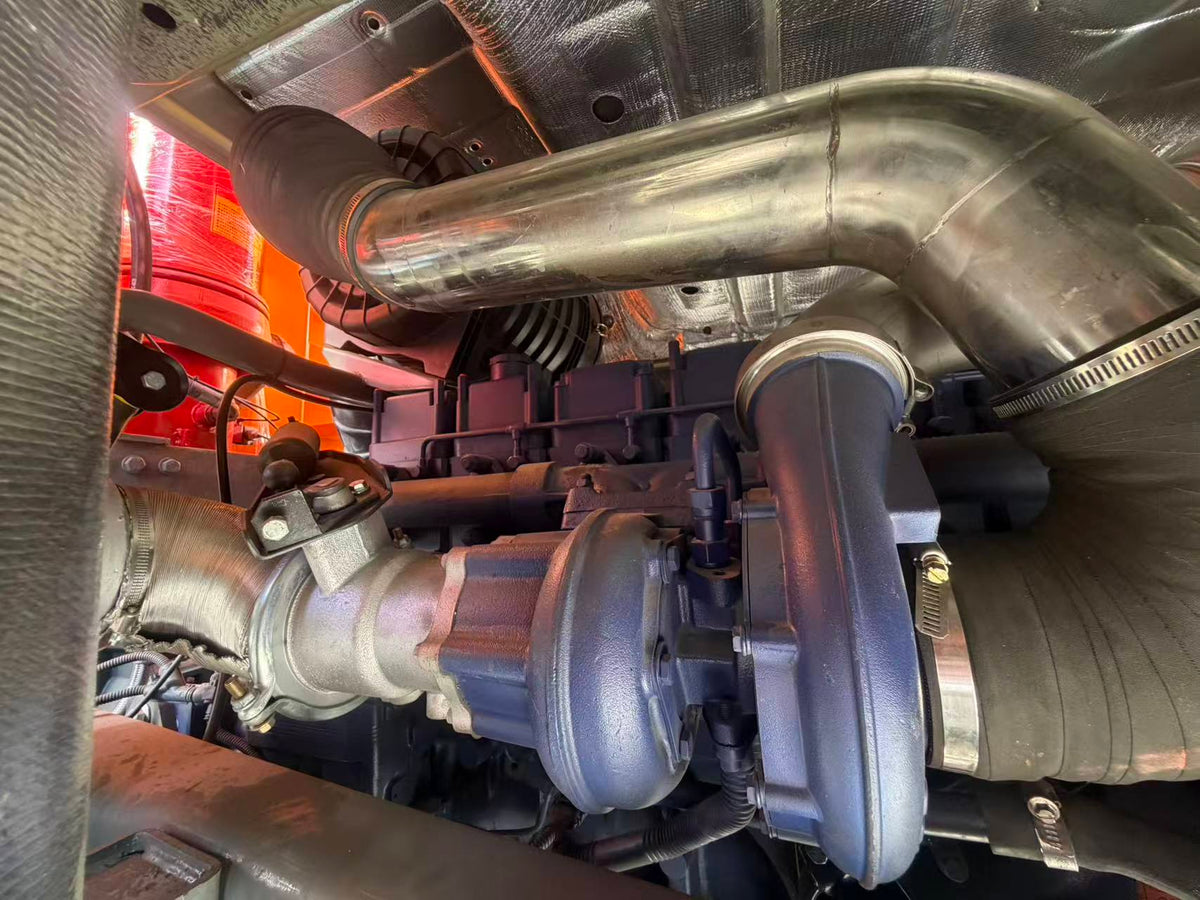

| Engine | Weichai WP12.430E62 / Sinotruk MC11H.430‑61 |
| Max Horsepower | 430 hp (316kW) |
| Displacement | 11.596L, Inline 6-cylinder Diesel Engine |
| Emission Standard | China VI (EGR+DOC+DPF+SCR After-treatment) |
| Transmission | Sinotruk HW19712 12-speed Manual Transmission, with PTO |
| Front Axle | Dual 9.5 Ton Steering Axles |
| Rear Axle | Dual MC16ZG 16 Ton Class Wheel-side Reduction Heavy-duty Rear Axles, with Differential Lock |

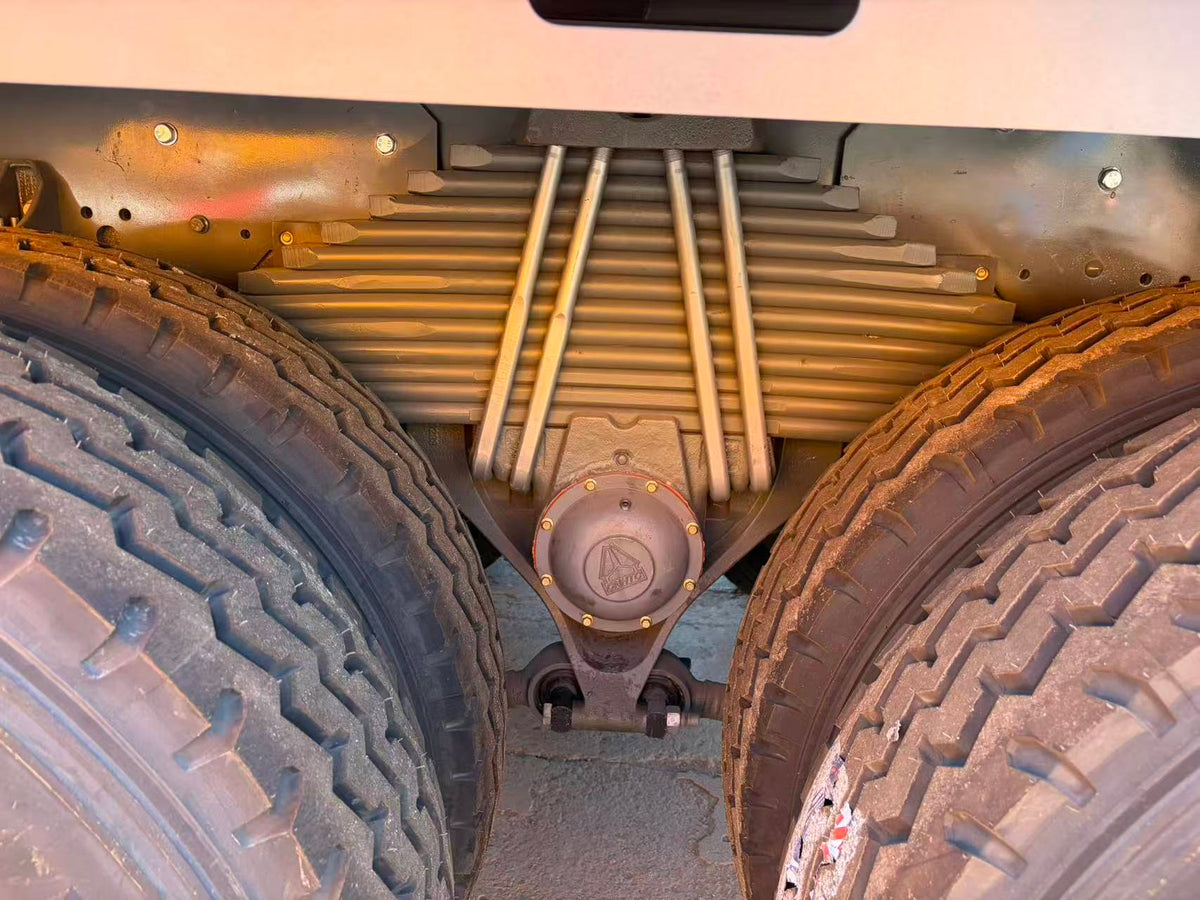

| Leaf Spring Configuration | Front Heavy-duty Leaf Spring Suspension, Rear Balanced Axle Leaf Springs |
| Tire Size / Model | 12.00R20 / 12R22.5 18PR Full Steel Radial Engineering Tires |
| Fuel Tank Capacity | 400L Large-capacity Aluminum Alloy Fuel Tank |
| Hydraulic Lifting System | Front-top Heavy-duty Hydraulic Cylinder, One-key Lifting and Unloading |
| Brake System | Dual-circuit Air Brake, Engine Exhaust Brake, ABS Anti-lock Braking |
| Maximum Speed | 85km/h |
WHY CHOOSE THIS EQUIPMENT
Product Advantages
Practical advantages selected for demanding international operations.
02
Heavy-Duty Dumping Performance
A responsive hydraulic lifting system supports fast, stable unloading and efficient work cycles on mining and construction sites.
03
Reinforced Chassis & Load Capacity
The reinforced frame, suspension and cargo-body structure are engineered for durability and dependable load handling.
04
Comfortable & Safe Cab
A wide-view cab, practical controls and supportive seating help operators work safely and comfortably throughout long shifts.
